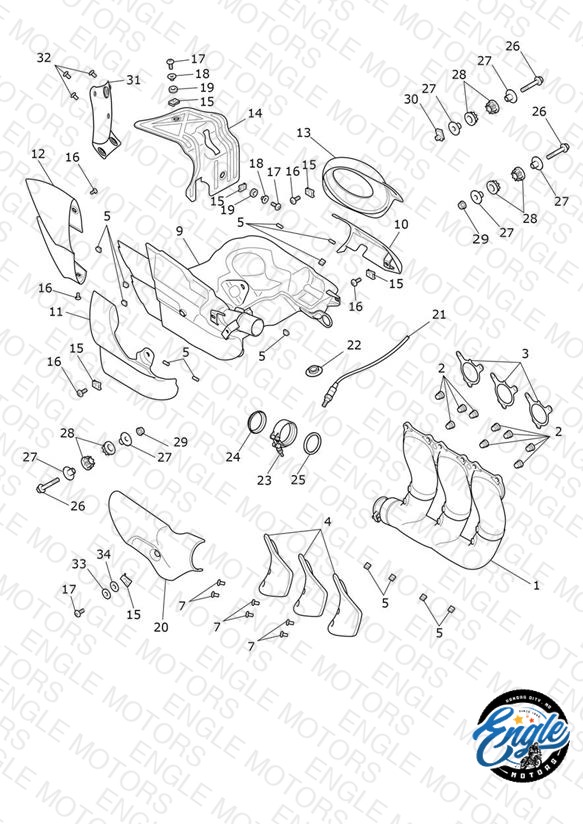

Exhaust System
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2202172 Header Assembly | Header Assembly | 1 | $1219.49 | Available to order | 1 |
| 2 | T3350186 Nut, Flgd, 12 Pnt, M8 | Nut, Flgd, 12 Pnt, M8 | 9 | $12.51 | Available to order | 9 |
| 3 | T2203164 Gasket, Exhaust Port | Gasket, Exhaust Port | 3 | $13.02 | Available to order | 3 |
| 4 | T2202448 Heatshield, Exhaust | Heatshield, Exhaust | 3 | $75.49 | Available to order | 3 |
| 5 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 13 | $2.63 | Backorder — Late August 2026 | 13 |
| 7 | T3330344 Bolt, Pan/Hd, M5 x 8, SS, Enc | Bolt, Pan/Hd, M5 x 8, SS, Enc | 6 | $7.81 | Available to order | 6 |
| 9 | T2204438 Catalyst Box Assy, Covered | Catalyst Box Assy, Covered DE, ES, FR, IT, NL, SE, UK Only | 1 | $2594.31 | Backorder — Late July 2026 | 1 |
| 9 | T2207750 Catalyst Box Assy, Covered | Catalyst Box Assy, Covered AU, CA, NZ & US Only | 1 | $2594.31 | Available to order | 1 |
| 9 | T2203588 Catalyst Box Assy, Covered | Catalyst Box Assy, Covered All Except CN, DE, ES, FR, IT, NL, SE, UK, AU, CA, NZ & US | 1 | $2129.10 | Out of Stock | Notify Me |
| 9 | T2207008 Catalyst Box Assy, Covered, CN | Catalyst Box Assy, Covered, CN CN Only | 1 | $2594.31 | Out of Stock | Notify Me |
| 10 | T2202592 Cover, Catbox, LHS, Assy | Cover, Catbox, LHS, Assy | 1 | $61.48 | Available to order | 1 |
| 11 | T2202649 Heatshield, Catbox, RHS, Assy | Heatshield, Catbox, RHS, Assy | 1 | $75.49 | Out of Stock | Notify Me |
| 12 | T2202593 Endcap, RHS | Endcap, RHS | 1 | $126.75 | Available to order | 1 |
| 13 | T2202595 Endcap, LHS | Endcap, LHS | 1 | $40.03 | Available to order | 1 |
| 14 | T2202597 Heatshield, Catbox, Centre, Assy | Heatshield, Catbox, Centre, Assy | 1 | $104.40 | Available to order | 1 |
| 15 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 9 | $2.48 | Available to order | 9 |
| 16 | T2207727 Bolt, M5 x 10, Pan | Bolt, M5 x 10, Pan | 5 | $6.39 | Available to order | 5 |
| 17 | T3334511 Screw, Lge Skt Hd, M5 x 16, S/S | Screw, Lge Skt Hd, M5 x 16, S/S | 3 | $6.23 | Available to order | 3 |
| 18 | T3010200 Flanged Sleeve, M5, SS | Flanged Sleeve, M5, SS | 2 | $5.67 | Out of Stock | Notify Me |
| 19 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 20 | T2202591 Cover, Catbox, RHS, Assy | Cover, Catbox, RHS, Assy | 1 | $104.40 | Available to order | 1 |
| 21 | T2207898 Sensor, Oxygen, Exh, M12, 500mm | Sensor, Oxygen, Exh, M12, 500mm | 1 | $250.98 | Available to order | 1 |
| 22 | T3020168 Stop, Sidestand | Stop, Sidestand | 1 | $11.79 | Available to order | 1 |
| 23 | T2202454 Clamp, Exhaust, Dia 44.5 | Clamp, Exhaust, Dia 44.5 | 1 | $27.22 | Available to order | 1 |
| 24 | T2202044 Sleeve, Exhaust, Flanged | Sleeve, Exhaust, Flanged | 1 | $2.48 | Backorder — Late July 2026 | 1 |
| 25 | T2202043 Gasket, Exhaust | Gasket, Exhaust | 1 | $13.89 | Available to order | 1 |
| 26 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 3 | $6.65 | Available to order | 3 |
| 27 | T3010705 Flanged Sleeve, 8.4 x 12.4 x 13.8 | Flanged Sleeve, 8.4 x 12.4 x 13.8 | 6 | $10.44 | Available to order | 6 |
| 28 | T2200622 Bush, Rubber, M8 | Bush, Rubber, M8 | 6 | $2.25 | Available to order | 6 |
| 29 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 2 | $2.45 | Available to order | 2 |
| 30 | T3350092 Nut, Captive, M8 | Nut, Captive, M8 | 1 | $1.62 | Available to order | 1 |
| 31 | T2206363 Heatshield, Rear, Assy | Heatshield, Rear, Assy Not Illustrated | 1 | $242.28 | Available to order | 1 |
| 32 | T3330289 Screw, But/Hd, TX, M5 x 16, Slv | Screw, But/Hd, TX, M5 x 16, Slv Not Illustrated | 3 | $1.99 | Available to order | 3 |
| 33 | T3550277 Washer, M8 | Washer, M8 | 1 | $1.06 | Available to order | 1 |
| 34 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 1 | $1.21 | Available to order | 1 |
