Triumph Bonneville Rear Light & Rear Indicators — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

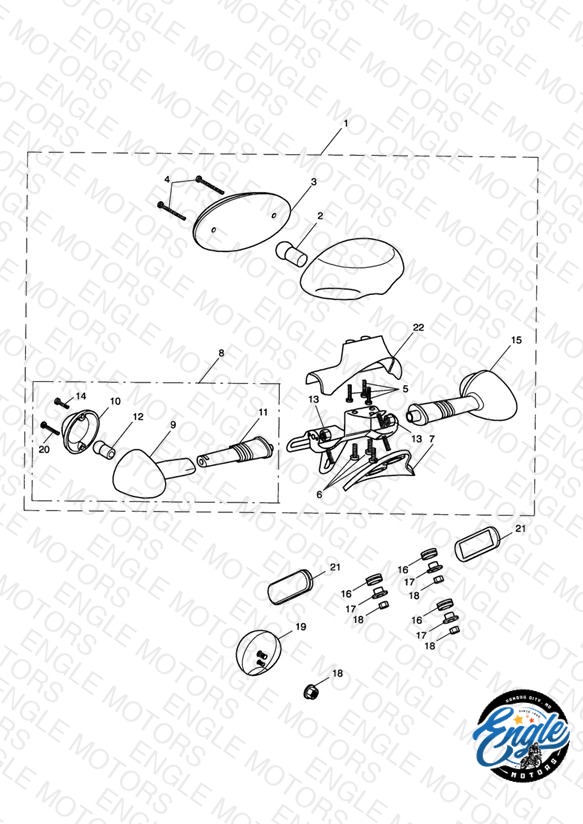

#	Part Number	Description	Qty	Price	Status
1	T2700430 Rear lamp assy Replaced by T2700449 — Rear lamp assy — Available to Order	Rear lamp assy EEC	1	$178.91	Unavailable	1 Adds T2700449Ships within 3–7 business days
1	T2700449 Rear lamp assy	Rear lamp assy SAE US,UC,TW CA	1	$186.31	Available to order	1 Ships within 3–7 business days
2	T2700432 Bulb	Bulb	1	$13.10	Available to order	1 Ships within 3–7 business days
3	T2700433 Lens	Lens Rear lamp	1	$54.20	Available to order	1 Ships within 3–7 business days
4	T2700434 Screw	Screw	2	$3.04	Backorder — Late July 2026	2
5	T2700437 Screw	Screw	3	$3.24	Available to order	3 Ships within 3–7 business days
6	T2700438 Screw	Screw	3	$1.52	Obsolete	View Details
7	T2700439 Trim panel	Trim panel Rear lamp	1	$18.18	Obsolete	View Details
8	T2700423 Indicator Assy, Rear, RH	Indicator Assy, Rear, RH RH rear	1	$65.49	Available to order	1 Ships within 3–7 business days
9	T2700425 Lamp body	Lamp body	2	$38.60	Available to order	2 Ships within 3–7 business days
10	T2700445 Lens	Lens Indicator	2	$12.76	Available to order	2 Ships within 3–7 business days
11	T2700426 Stem	Stem Rubber	2	$16.56	Available to order	2 Ships within 3–7 business days
12	T2700032 Bulb, Indicator, 12V, 10W	Bulb, Indicator, 12V, 10W	2	$5.93	Available to order	2 Ships within 3–7 business days
13	T2700448 Nut	Nut M10	2	$1.13	Available to order	2 Ships within 3–7 business days
14	T2700428 Screw	Screw M3 x 20mm	2	$1.21	Available to order	2 Ships within 3–7 business days
15	T2700424 Indicator Assy, Rear, LH	Indicator Assy, Rear, LH LH rear	1	$65.49	Available to order	1 Ships within 3–7 business days
16	T3020082 Grommet, 18 x 1 x 9	Grommet, 18 x 1 x 9	3	$6.77	Available to order	3 Ships within 3–7 business days
17	T3010707 Sleeve, Flanged, 6.4 x 10 x 6.5	Sleeve, Flanged, 6.4 x 10 x 6.5	3	$3.59	Available to order	3 Ships within 3–7 business days
18	T3350003 Locknut, Flanged, M6 x 1	Locknut, Flanged, M6 x 1 M6	4	$0.67	Available to order	4 Ships within 3–7 business days
19	T2700444 Reflector	Reflector Red Circular	1	$18.07	Available to order	1 Ships within 3–7 business days
20	T2700441 Screw	Screw M3 x 26mm	1	$1.21	Available to order	1 Ships within 3–7 business days
21	T2700443 Reflector, Oval, Red	Reflector, Oval, Red Red Oval	2	$6.14	Available to order	2 Ships within 3–7 business days
22	T2700436 Cover, Rear Light Unit	Cover, Rear Light Unit	1	$26.08	Available to order	1 Ships within 3–7 business days
