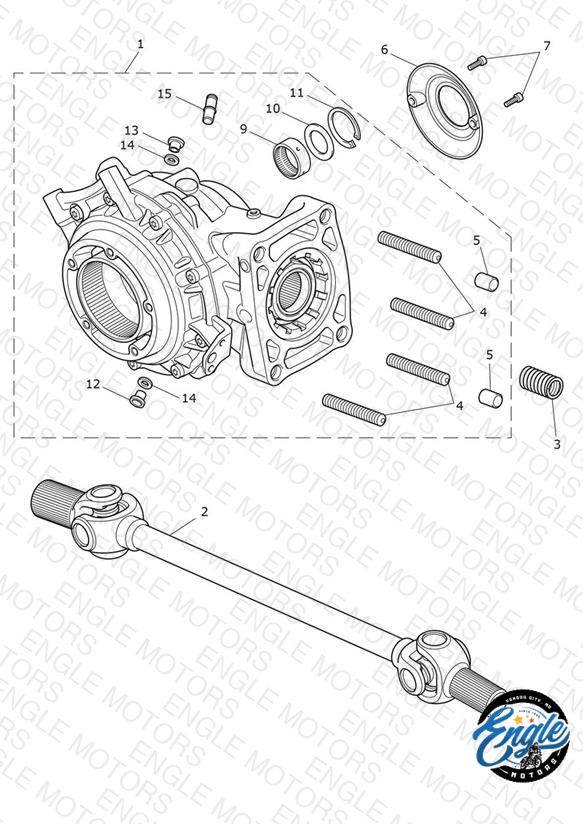

Final Drive Unit
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010785 Final Drive Unit Assy, Spares | Final Drive Unit Assy, Spares | 1 | $3555.28 | Available to order | 1 |
| 2 | T1272500 Driveshaft, Double Cardan | Driveshaft, Double Cardan | 1 | $742.08 | Available to order | 1 |
| 3 | T1130758 Valve Spring | Valve Spring | 1 | $12.11 | Available to order | 1 |
| 4 | T3201277 Stud, M12, Enc, Slv | Stud, M12, Enc, Slv | 4 | $6.24 | Available to order | 4 |
| 5 | T3000064 Dowel, Hollow, Dia 14.0 | Dowel, Hollow, Dia 14.0 | 2 | $6.94 | Available to order | 2 |
| 6 | T1277450 Badge, Bevel Box, Black | Badge, Bevel Box, Black | 1 | $156.54 | Available to order | 1 |
| 7 | T3050355 Screw, Cap/Hd, M5 x 16, Slv, Enc | Screw, Cap/Hd, M5 x 16, Slv, Enc | 2 | $0.59 | Available to order | 2 |
| 9 | T2010628 Bearing, Needle, 35 x 47 x 17 | Bearing, Needle, 35 x 47 x 17 | 1 | $59.81 | Out of Stock | Notify Me |
| 10 | T3600705 Oil Seal, 35 47 6 | Oil Seal, 35 47 6 | 1 | $9.10 | Backorder — Mid August 2026 | 1 |
| 11 | T3500402 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $0.89 | Available to order | 1 |
| 12 | T3331271 Bolt, Cap Hd, M14 x 12, Magnet | Bolt, Cap Hd, M14 x 12, Magnet | 1 | $6.07 | Available to order | 1 |
| 13 | T3331274 Bolt, Cap Hd, M14 x 12 | Bolt, Cap Hd, M14 x 12 | 1 | $5.88 | Out of Stock | Notify Me |
| 14 | T3551272 Washer, Sealing, 14.5 x 20 x 1.4 | Washer, Sealing, 14.5 x 20 x 1.4 | 2 | $2.65 | Available to order | 2 |
| 15 | T1271977 Spigot, Breather | Spigot, Breather | 1 | $10.59 | Available to order | 1 |
