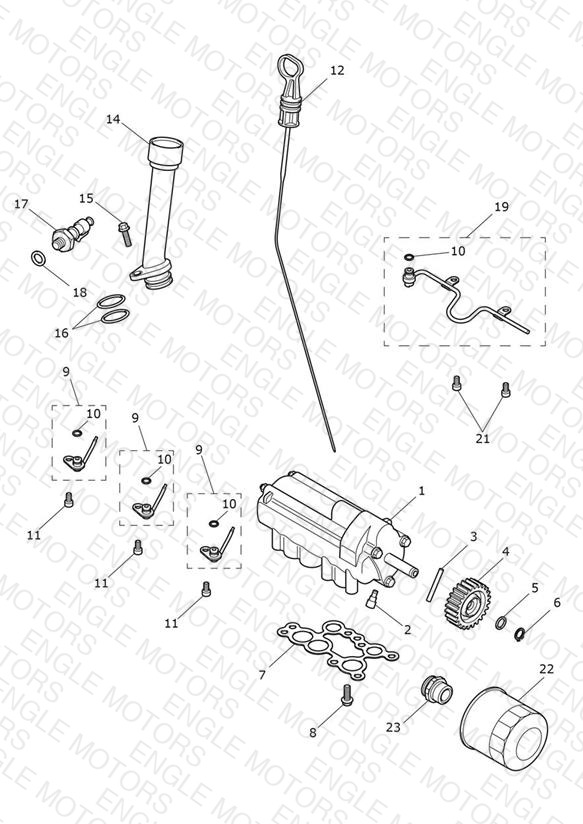

Lubrication System
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1212500 Oil Pump, 3 Rotor | Oil Pump, 3 Rotor | 1 | $448.73 | Available to order | 1 |
| 2 | T1211114 Check Valve | Check Valve | 1 | $33.93 | Available to order | 1 |
| 3 | T1212503 Dowel, Oil Pump | Dowel, Oil Pump | 1 | $10.44 | Available to order | 1 |
| 4 | T1212501 Gear, Oil Pumpm 24T | Gear, Oil Pumpm 24T | 1 | $33.82 | Available to order | 1 |
| 5 | T3552056 Washer, Hardened, 10.2 x 13.7 x 1.0 | Washer, Hardened, 10.2 x 13.7 x 1.0 | 1 | $3.35 | Available to order | 1 |
| 6 | T3500110 Circlip, Ext, DIN471, 10 x 1.0 | Circlip, Ext, DIN471, 10 x 1.0 | 1 | $0.72 | Available to order | 1 |
| 7 | T1212502 Gasket, Oil Pump | Gasket, Oil Pump | 1 | $10.44 | Available to order | 1 |
| 8 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Available to order | 1 |
| 9 | T1212523 Spray Jet, Piston | Spray Jet, Piston | 3 | $29.93 | Available to order | 3 |
| 10 | T3600176 O Ring, 6.1 x 1.6 | O Ring, 6.1 x 1.6 | 4 | $2.95 | Available to order | 4 |
| 11 | T3051055 Screw, Cap/Hd, M5 x 10, Slv, Enc | Screw, Cap/Hd, M5 x 10, Slv, Enc | 5 | $3.04 | Available to order | 5 |
| 12 | T1217721 Dipstick, Oil | Dipstick, Oil | 1 | $38.04 | Out of Stock | Notify Me |
| 14 | T1212525 Pipe, Dipstick | Pipe, Dipstick | 1 | $17.06 | Out of Stock | Notify Me |
| 15 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 16 | T3600106 O-Ring, 24 x 2.5 | O-Ring, 24 x 2.5 | 2 | $1.51 | Available to order | 2 |
| 17 | T1210091 Oil Pressure Switch, M10 | Oil Pressure Switch, M10 | 1 | $50.37 | Available to order | 1 |
| 18 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 19 | T1212508 Spray Bar, Gearbox | Spray Bar, Gearbox | 1 | $54.23 | Available to order | 1 |
| 22 | T1218001 Oil Filter, OES | Oil Filter, OES | 1 | $17.96 | Available to order | 1 |
| 23 | T1212507 Adaptor, Oil Filter | Adaptor, Oil Filter | 1 | $12.00 | Available to order | 1 |
