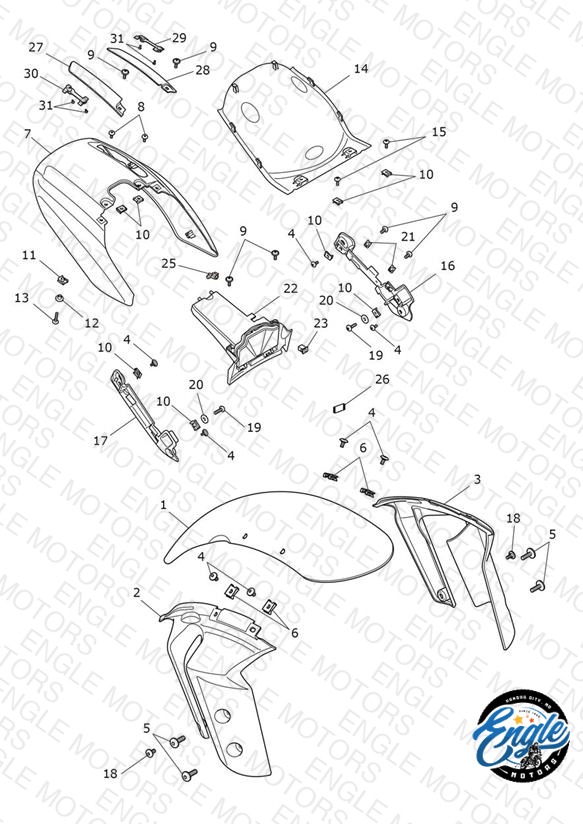

Triumph Rocket 3 Mudguards — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2307297-PM Front Mudguard, Sapphire Black	Front Mudguard, Sapphire Black Sapphire Black/Granite & Carnival Red/Sapphire Black Bikes	1	$328.44	Available to order	1 Ships within 3–7 business days
1	T2307297-PZ Front Mudguard, Matt Sapphire Black	Front Mudguard, Matt Sapphire Black Satin Pacific Blue/Matt Sapphire Blk & Satin Baja Orange/Matt Sapphire Blk Bikes	1	$308.27	Available to order	1 Ships within 3–7 business days
2	T2309708-PZ Bracket, Mudguard, Front, RH, Matt Sapphire Black	Bracket, Mudguard, Front, RH, Matt Sapphire Black Sapphire Black/Granite & Carnival Red/Sapphire Black Bikes	1	$208.70	Available to order	1 Ships within 3–7 business days
2	T2309708-PM Bracket, Mudguard, Front, RH, Sapphire Black	Bracket, Mudguard, Front, RH, Sapphire Black Satin Pacific Blue/Matt Sapphire Blk & Satin Baja Orange/Matt Sapphire Blk Bikes	1	$129.00	Out of Stock	Notify Me
3	T2309709-PZ Bracket, Mudguard, Front, LH, Matt Sapphire Black	Bracket, Mudguard, Front, LH, Matt Sapphire Black Sapphire Black/Granite & Carnival Red/Sapphire Black Bikes	1	$208.70	Available to order	1 Ships within 3–7 business days
3	T2309709-PM Bracket, Mudguard, Front, LH, Sapphire Black	Bracket, Mudguard, Front, LH, Sapphire Black Satin Pacific Blue/Matt Sapphire Blk & Satin Baja Orange/Matt Sapphire Blk Bikes	1	$129.00	Out of Stock	Notify Me
4	T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv	Bolt, But/Hd, M5 x 11, Shld, Slv	8	$5.02	Available to order	8 Ships within 3–7 business days
5	T3330727 Screw, But/Hd, M6 x 20, Slv	Screw, But/Hd, M6 x 20, Slv	4	$3.39	Available to order	4 Ships within 3–7 business days
6	T3350123 Nut, Captive, M5, Non-Secured	Nut, Captive, M5, Non-Secured	4	$2.48	Available to order	4 Ships within 3–7 business days
7	T2317861-PM Rear Mudguard, Upper, Sapphire Black	Rear Mudguard, Upper, Sapphire Black Sapphire Black/Granite & Carnival Red/Sapphire Black Bikes	1	$268.74	Out of Stock	Notify Me
7	T2317861-PZ Rear Mudguard, Upper, Matt Sapphire Black	Rear Mudguard, Upper, Matt Sapphire Black Satin Pacific Blue/Matt Sapphire Blk & Satin Baja Orange/Matt Sapphire Blk Bikes	1	$264.23	Backorder — Mid August 2026	1
8	T3330726 Screw, Btn/Hd, M6 x 12, Slv	Screw, Btn/Hd, M6 x 12, Slv	2	$4.42	Available to order	2 Ships within 3–7 business days
9	T3330943 Screw, But/Hd, M5 x 14, Slv	Screw, But/Hd, M5 x 14, Slv	6	$4.92	Available to order	6 Ships within 3–7 business days
11	T3351052 Nut, Captive, 4-5.5mm	Nut, Captive, 4-5.5mm	1	$4.36	Available to order	1 Ships within 3–7 business days
12	T3010704 Sleeve, Flanged, 5.3 x 9 x 6.5	Sleeve, Flanged, 5.3 x 9 x 6.5	1	$2.17	Backorder — Late July 2026	1
13	T3330429 Screw, Skt Hd, M5 x 25, SS	Screw, Skt Hd, M5 x 25, SS	1	$2.20	Available to order	1 Ships within 3–7 business days
14	T2307901 Undertray Moulding	Undertray Moulding	1	$93.24	Out of Stock	Notify Me
15	T3330941 Screw, But/Hd, Skt, M5 x 16, Slv	Screw, But/Hd, Skt, M5 x 16, Slv	2	$6.73	Available to order	2 Ships within 3–7 business days
16	T2311232 Carrier, Rear Mudguard, Mldg, LH	Carrier, Rear Mudguard, Mldg, LH	1	$37.95	Available to order	1 Ships within 3–7 business days
17	T2311233 Carrier, Rear Mudguard, Mldg, RH	Carrier, Rear Mudguard, Mldg, RH	1	$37.95	Backorder — Late July 2026	1
18	T3331075 Bolt, But/Hd, M5 x 14, Slv	Bolt, But/Hd, M5 x 14, Slv	2	$5.02	Available to order	2 Ships within 3–7 business days
19	T3330952 Screw, Butn/Hd, M5 x 20, Slv	Screw, Butn/Hd, M5 x 20, Slv	2	$2.48	Available to order	2 Ships within 3–7 business days
20	T3550286 Washer, 5.3 x 18 x 1.6	Washer, 5.3 x 18 x 1.6	2	$1.62	Backorder — Late August 2026	2
21	T3350129 Nut, Captive, M5	Nut, Captive, M5	2	$3.39	Backorder — Late August 2026	2
22	T2307912 Storage Box Assy	Storage Box Assy	1	$74.54	Available to order	1 Ships within 3–7 business days
23	T2309804 Push Latch	Push Latch	1	$31.47	Available to order	1 Ships within 3–7 business days
25	T3700162 Clip, Cable/Pipe	Clip, Cable/Pipe	1	$1.13	Backorder — Early August 2026	1
26	T2308282 Gasket, USB	Gasket, USB	1	$11.50	Available to order	1 Ships within 3–7 business days
27	T2314807 Finisher, Mudguard, Black, RH	Finisher, Mudguard, Black, RH	1	$169.58	Available to order	1 Ships within 3–7 business days
28	T2314806 Finisher, Mudguard, Black, LH	Finisher, Mudguard, Black, LH	1	$169.58	Available to order	1 Ships within 3–7 business days
29	T2313130 Finisher Bracket, LH	Finisher Bracket, LH	1	$10.17	Available to order	1 Ships within 3–7 business days
30	T2313131 Finisher Bracket, RH	Finisher Bracket, RH	1	$10.17	Available to order	1 Ships within 3–7 business days
31	T3330343 Screw, But Hd, M4 x 8, Enc	Screw, But Hd, M4 x 8, Enc	4	$6.61	Available to order	4 Ships within 3–7 business days
