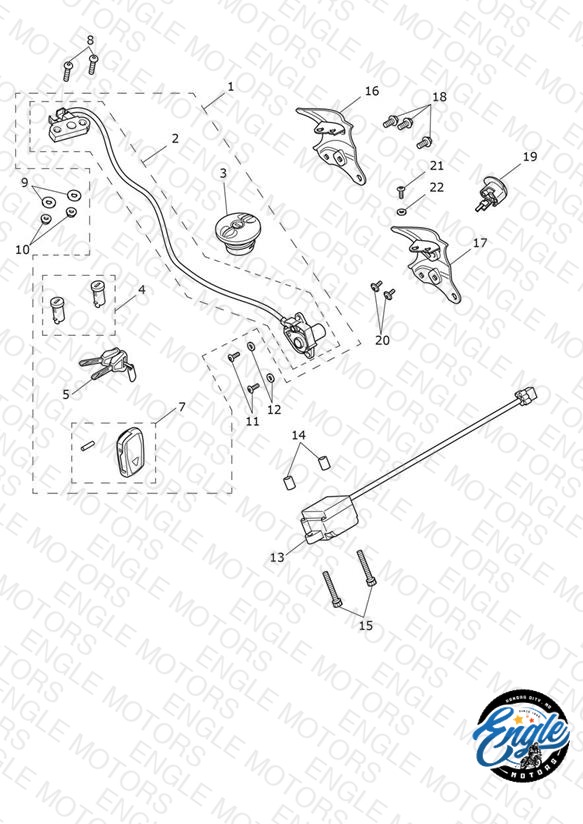

Loading schematic...
Lockset
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2503439 Lockset, Spares | Lockset, Spares All Except JP | 1 | $946.78 | Backorder — Early August 2026 | 1 |
| 1 | T2503441 Lockset, Spares, JP | Lockset, Spares, JP JP Only | 1 | $946.78 | Out of Stock | Notify Me |
| 2 | T2503323 Seat Lock Spares | Seat Lock Spares | 1 | $139.76 | Available to order | 1 |
| 3 | T2503325 Filler Cap Spares | Filler Cap Spares | 1 | $212.94 | Out of Stock | Notify Me |
| 4 | T2503321 Luggage Barrels, Spares | Luggage Barrels, Spares Contains Key | 1 | $107.93 | Available to order | 1 |
| 5 | T2504596 Key, Cut, Immobiliser, Red | Key, Cut, Immobiliser, Red Contains 2 Keys | 1 | $150.88 | Out of Stock | Notify Me |
| 5a | T2504597 Key, Blank, Immobiliser, Red | Key, Blank, Immobiliser, Red | 1 | $43.64 | Available to order | 1 |
| 7 | T2507101 Smart Key, Cut, Assy, RF434 | Smart Key, Cut, Assy, RF434 All Except JP | 1 | $208.34 | Out of Stock | Notify Me |
| 7 | T2507102 Smart Key, Cut, Assy, RF315 | Smart Key, Cut, Assy, RF315 JP Only | 1 | $208.34 | Out of Stock | Notify Me |
| 8 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 9 | T3555026 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 2 | $1.21 | Available to order | 2 |
| 10 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 11 | T3300062 Pop Rivet | Pop Rivet | 2 | $2.25 | Available to order | 2 |
| 12 | T3550289 Washer, 11 x 5.1 x 1.6 | Washer, 11 x 5.1 x 1.6 | 2 | $2.25 | Available to order | 2 |
| 13 | T2502202 Steering Lock, Electronic | Steering Lock, Electronic | 1 | $252.83 | Available to order | 1 |
| 14 | T3011105 Spacer, 12 x 6.5 x 16 | Spacer, 12 x 6.5 x 16 | 2 | $9.68 | Out of Stock | Notify Me |
| 15 | T3330317 Bolt, Shear, M6 x 1.0 x 40, Enc | Bolt, Shear, M6 x 1.0 x 40, Enc | 2 | $5.12 | Available to order | 2 |
| 16 | T2501992 Bracket, Cover, Mldg | Bracket, Cover, Mldg All Except US | 1 | $9.02 | Out of Stock | Notify Me |
| 17 | T2501985 Bracket, Switch, Rotary, Mldg | Bracket, Switch, Rotary, Mldg US Only | 1 | $9.02 | Available to order | 1 |
| 18 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 3 | $1.72 | Out of Stock | Notify Me |
| 19 | T2502214 Switch, Rotational | Switch, Rotational US Only | 1 | $89.35 | Available to order | 1 |
| 20 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT US Only | 2 | $0.75 | Available to order | 2 |
| 21 | T3330659 Screw, Pan/Hd, TX, M5 x 25, Enc | Screw, Pan/Hd, TX, M5 x 25, Enc | 1 | $3.73 | Available to order | 1 |
| 22 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Backorder — Late August 2026 | 1 |
