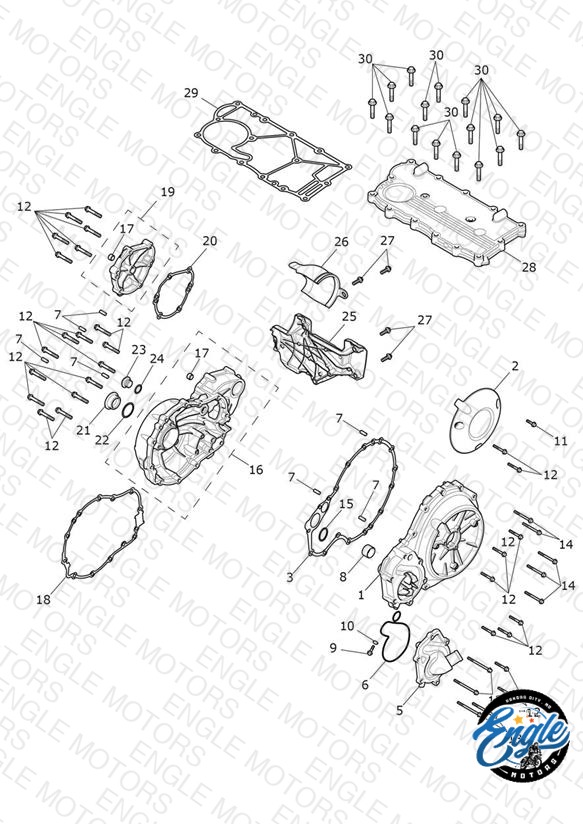

Loading schematic...
Engine Covers
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1262033 Clutch Cover Assembly | Clutch Cover Assembly | 1 | $326.94 | Available to order | 1 |
| 2 | T1262626 Finisher, Clutch Cover | Finisher, Clutch Cover | 1 | $18.30 | Available to order | 1 |
| 3 | T1264070 Gasket, Clutch Cover | Gasket, Clutch Cover | 1 | $18.43 | Available to order | 1 |
| 5 | T1261885 Water Pump Cover | Water Pump Cover | 1 | $49.38 | Available to order | 1 |
| 6 | T2101608 Seal, Water Pump Housing | Seal, Water Pump Housing | 1 | $2.64 | Available to order | 1 |
| 7 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 7 | $1.13 | Available to order | 7 |
| 8 | T3000850 Dowel, Hollow, 27 x 16 | Dowel, Hollow, 27 x 16 | 1 | $5.58 | Available to order | 1 |
| 9 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 10 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 1 | $1.05 | Available to order | 1 |
| 11 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 12 | T3205600 Bolt, HHF, Lghtd, M6 x 35, 10.9 | Bolt, HHF, Lghtd, M6 x 35, 10.9 | 28 | $1.63 | Available to order | 28 |
| 13 | T3205088 Bolt, HHF, Lghtd, M6 x 70, Slv | Bolt, HHF, Lghtd, M6 x 70, Slv | 4 | $3.58 | Available to order | 4 |
| 14 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 5 | $6.73 | Available to order | 5 |
| 15 | T3600226 O Ring, ID26, 64 x 2.62 | O Ring, ID26, 64 x 2.62 | 1 | $3.92 | Available to order | 1 |
| 16 | T1261990 Alternator Cover Assembly | Alternator Cover Assembly | 1 | $211.02 | Available to order | 1 |
| 17 | T1222207 Bush, 10 x 12 x 8 | Bush, 10 x 12 x 8 | 2 | $5.69 | Available to order | 2 |
| 18 | T1264060 Gasket, Alternator Cover | Gasket, Alternator Cover | 1 | $16.20 | Available to order | 1 |
| 19 | T1261991 Starter Drive Cover Assy | Starter Drive Cover Assy | 1 | $143.52 | Available to order | 1 |
| 20 | T1264050 Gasket, Starter Drive Cover | Gasket, Starter Drive Cover | 1 | $16.94 | Out of Stock | Notify Me |
| 21 | T1263073 Plug, Crank Inspection | Plug, Crank Inspection | 1 | $22.52 | Available to order | 1 |
| 22 | T3603072 O Ring, ID 29.82 x 2.62 | O Ring, ID 29.82 x 2.62 | 1 | $0.72 | Available to order | 1 |
| 23 | T3450119 Plug, Face Seal, M16 x 1.5 | Plug, Face Seal, M16 x 1.5 | 1 | $6.83 | Available to order | 1 |
| 24 | T3600191 O Ring, 16 x 2 | O Ring, 16 x 2 | 1 | $3.77 | Available to order | 1 |
| 25 | T1262510 Starter Motor Cover | Starter Motor Cover | 1 | $196.46 | Backorder — Early August 2026 | 1 |
| 26 | T1262521 Driveshaft Cover | Driveshaft Cover | 1 | $104.40 | Backorder — Mid August 2026 | 1 |
| 27 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
| 28 | T1265511 Oil Tank Cover | Oil Tank Cover | 1 | $219.94 | Available to order | 1 |
| 29 | T1262500 Oil Tank Gasket | Oil Tank Gasket | 1 | $11.01 | Available to order | 1 |
| 30 | T3200148 Bolt, RHHF, M6 x 30, Slv | Bolt, RHHF, M6 x 30, Slv | 15 | $4.45 | Available to order | 15 |
