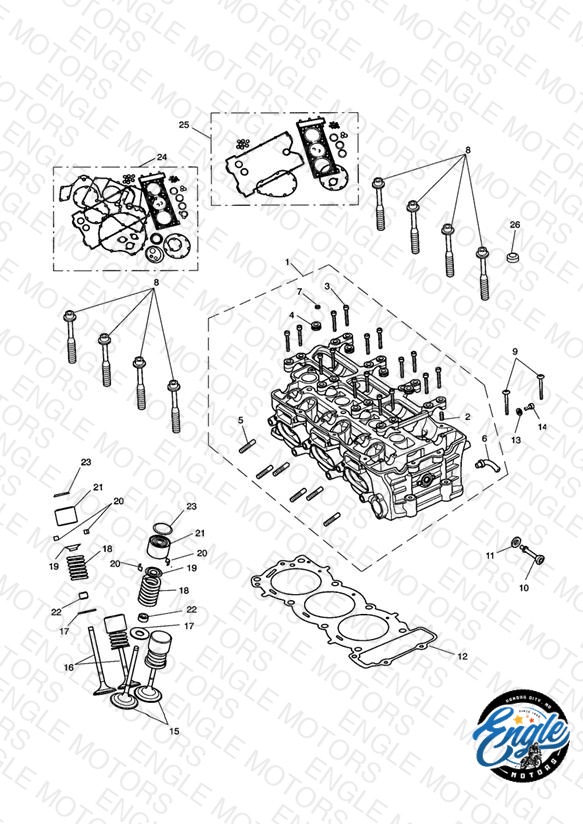

Loading schematic...
Cylinder Head & Valves
Parts (79)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150306 Cylinder Head Assy, 3 Cyl | Cylinder Head Assy, 3 Cyl > Eng No 242554 | 1 | $2529.48 | Available to order | 1 |
| 1 | T1150945 Cylinder Head Assy, 3 Cyl, Black | Cylinder Head Assy, 3 Cyl, Black Eng No 242555 > | 1 | $2428.87 | Available to order | 1 |
| 2 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Backorder — Late August 2026 | 2 |
| 3 | T3331299 Screw, Pan/HD, Tx, M6 x 40, Slv | Screw, Pan/HD, Tx, M6 x 40, Slv | 16 | $3.70 | Available to order | 16 |
| 4 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal > Eng No 727921 | 3 | $6.65 | Available to order | 3 |
| 4 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc Eng No 727922 > | 3 | $6.65 | Available to order | 3 |
| 5 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 6 | $2.74 | Backorder — Late August 2026 | 6 |
| 6 | T2108037 Spigot | Spigot | 1 | $27.27 | Available to order | 1 |
| 7 | T1151200 Restrictor, Oil, Dia 1.00 | Restrictor, Oil, Dia 1.00 | 1 | $12.38 | Available to order | 1 |
| 8 | T1151100 Bolt, Cyl Head, M12, Torx 55 | Bolt, Cyl Head, M12, Torx 55 | 8 | $12.28 | Available to order | 8 |
| 9 | T3331111 Screw, Pan/Hd, Tx, M6 x 55, Slv | Screw, Pan/Hd, Tx, M6 x 55, Slv | 2 | $6.73 | Backorder — Late July 2026 | 2 |
| 10 | T3332578 Screw, Pan/HD, Shld, M6 x 65, Slv | Screw, Pan/HD, Shld, M6 x 65, Slv | 1 | $5.88 | Available to order | 1 |
| 11 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 1 | $5.82 | Available to order | 1 |
| 12 | T1151150 Gasket, 3 Cyl Head | Gasket, 3 Cyl Head > Eng No 254213 | 1 | $108.34 | Available to order | 1 |
| 12 | T1150189 Gasket, 3 Cyl Head | Gasket, 3 Cyl Head Eng No 254214 > | 1 | $115.71 | Available to order | 1 |
| 13 | T3550146 Washer, 6.4 x 12 x 1, Copper | Washer, 6.4 x 12 x 1, Copper | 1 | $1.40 | Available to order | 1 |
| 14 | T3203115 Bolt, RHHF, M6x1.0x12, S/S | Bolt, RHHF, M6x1.0x12, S/S | 1 | $3.17 | Available to order | 1 |
| 15 | T1130455 Valve, Inlet, 37.9 | Valve, Inlet, 37.9 | 6 | $72.26 | Available to order | 6 |
| 16 | T1130465 Valve, Exhaust, 32.3 | Valve, Exhaust, 32.3 | 6 | $72.26 | Available to order | 6 |
| 17 | T3555019 Washer, 12.5 x 27 x 1 | Washer, 12.5 x 27 x 1 | 12 | $1.40 | Available to order | 12 |
| 18 | T1131201 Spring Valve, Symmetrical | Spring Valve, Symmetrical | 12 | $39.25 | Available to order | 12 |
| 19 | T1130053 Retainer, Spring, Valve | Retainer, Spring, Valve | 12 | $1.40 | Available to order | 12 |
| 20 | T1135500 Collet, Valve, 5.5mm | Collet, Valve, 5.5mm | 24 | $1.16 | Backorder — Mid August 2026 | 24 |
| 21 | T1130065 Bucket, Tappet | Bucket, Tappet | 12 | $15.88 | Available to order | 12 |
| 22 | T3600004 Oil Seal | Oil Seal | 12 | $15.60 | Available to order | 12 |
| 23 | T1130200 Shim Tappet, 2.000mm | Shim Tappet, 2.000mm | — | $10.18 | Available to order | 1 |
| 23 | T1130202 Shim Tappet, 2.025mm | Shim Tappet, 2.025mm | — | $8.18 | Available to order | 1 |
| 23 | T1130205 Shim, Tappet, 2.050 | Shim, Tappet, 2.050 | — | $10.18 | Available to order | 1 |
| 23 | T1130207 Shim Tappet, 2.075mm | Shim Tappet, 2.075mm | — | $8.18 | Available to order | 1 |
| 23 | T1130210 Shim, Tappet, 2.100 | Shim, Tappet, 2.100 | — | $10.18 | Available to order | 1 |
| 23 | T1130212 Shim Tappet, 2.125mm | Shim Tappet, 2.125mm | — | $10.18 | Available to order | 1 |
| 23 | T1130215 Shim, Tappet, 2.150 | Shim, Tappet, 2.150 | — | $10.18 | Available to order | 1 |
| 23 | T1130217 Shim Tappet, 2.175mm | Shim Tappet, 2.175mm | — | $8.18 | Available to order | 1 |
| 23 | T1130220 Shim, Tappet, 2.200 | Shim, Tappet, 2.200 | — | $10.18 | Available to order | 1 |
| 23 | T1130222 Shim Tappet, 2.225mm | Shim Tappet, 2.225mm | — | $8.18 | Available to order | 1 |
| 23 | T1130225 Shim, Tappet, 2.250 | Shim, Tappet, 2.250 | — | $10.18 | Available to order | 1 |
| 23 | T1130227 Shim Tappet, 2.275mm | Shim Tappet, 2.275mm | — | $5.14 | Available to order | 1 |
| 23 | T1130230 Shim, Tappet, 2.300 | Shim, Tappet, 2.300 | — | $10.18 | Available to order | 1 |
| 23 | T1130232 Shim Tappet, 2.325mm | Shim Tappet, 2.325mm | — | $10.01 | Available to order | 1 |
| 23 | T1130235 Shim, Tappet, 2.350 | Shim, Tappet, 2.350 | — | $10.18 | Available to order | 1 |
| 23 | T1130237 Shim Tappet, 2.375mm | Shim Tappet, 2.375mm | — | $8.18 | Available to order | 1 |
| 23 | T1130240 Shim, Tappet, 2.400 | Shim, Tappet, 2.400 | — | $10.18 | Available to order | 1 |
| 23 | T1130242 Shim Tappet, 2.425mm | Shim Tappet, 2.425mm | — | $10.18 | Available to order | 1 |
| 23 | T1130245 Shim, Tappet, 2.450 | Shim, Tappet, 2.450 | — | $10.18 | Available to order | 1 |
| 23 | T1130247 Shim Tappet, 2.475mm | Shim Tappet, 2.475mm | — | $10.18 | Available to order | 1 |
| 23 | T1130250 Shim, Tappet, 2.500 | Shim, Tappet, 2.500 | — | $10.18 | Available to order | 1 |
| 23 | T1130252 Shim Tappet, 2.525mm | Shim Tappet, 2.525mm | — | $10.18 | Available to order | 1 |
| 23 | T1130255 Shim, Tappet, 2.550 | Shim, Tappet, 2.550 | — | $10.18 | Out of Stock | Notify Me |
| 23 | T1130257 Shim Tappet, 2.575mm | Shim Tappet, 2.575mm | — | $8.18 | Available to order | 1 |
| 23 | T1130260 Shim, Tappet, 2.600 | Shim, Tappet, 2.600 | — | $10.18 | Available to order | 1 |
| 23 | T1130262 Shim Tappet, 2.625mm | Shim Tappet, 2.625mm | — | $10.18 | Available to order | 1 |
| 23 | T1130265 Shim, Tappet, 2.650 | Shim, Tappet, 2.650 | — | $10.18 | Out of Stock | Notify Me |
| 23 | T1130267 Shim Tappet, 2.675mm | Shim Tappet, 2.675mm | — | $8.18 | Available to order | 1 |
| 23 | T1130270 Shim, Tappet, 2.700 | Shim, Tappet, 2.700 | — | $10.18 | Available to order | 1 |
| 23 | T1130272 Shim Tappet, 2.725mm | Shim Tappet, 2.725mm | — | $10.18 | Available to order | 1 |
| 23 | T1130275 Shim, Tappet, 2.750 | Shim, Tappet, 2.750 | — | $10.18 | Available to order | 1 |
| 23 | T1130277 Shim Tappet, 2.775mm | Shim Tappet, 2.775mm | — | $8.18 | Available to order | 1 |
| 23 | T1130280 Shim, Tappet, 2.800 | Shim, Tappet, 2.800 | — | $10.18 | Available to order | 1 |
| 23 | T1130282 Shim Tappet, 2.825mm | Shim Tappet, 2.825mm | — | $8.18 | Available to order | 1 |
| 23 | T1130285 Shim, Tappet, 2.850 | Shim, Tappet, 2.850 | — | $10.18 | Available to order | 1 |
| 23 | T1130287 Shim Tappet, 2.875mm | Shim Tappet, 2.875mm | — | $8.18 | Available to order | 1 |
| 23 | T1130290 Shim, Tappet, 2.900 | Shim, Tappet, 2.900 | — | $10.18 | Available to order | 1 |
| 23 | T1130292 Shim Tappet, 2.925mm | Shim Tappet, 2.925mm | — | $10.18 | Available to order | 1 |
| 23 | T1130295 Shim, Tappet, 2.950 | Shim, Tappet, 2.950 | — | $10.18 | Available to order | 1 |
| 23 | T1130297 Shim Tappet, 2.975mm | Shim Tappet, 2.975mm | — | $10.18 | Available to order | 1 |
| 23 | T1130300 Shim Tappet, 3.000mm | Shim Tappet, 3.000mm | — | $10.18 | Backorder — Late August 2026 | 1 |
| 23 | T1130302 Shim Tappet, 3.025mm | Shim Tappet, 3.025mm | — | $10.18 | Out of Stock | Notify Me |
| 23 | T1130305 Shim, Tappet, 3.050 | Shim, Tappet, 3.050 | — | $10.18 | Available to order | 1 |
| 23 | T1130307 Shim Tappet, 3.075mm | Shim Tappet, 3.075mm | — | $10.18 | Available to order | 1 |
| 23 | T1130310 Shim, Tappet, 3.100 | Shim, Tappet, 3.100 | — | $10.18 | Available to order | 1 |
| 23 | T1130312 Shim Tappet, 3.125mm | Shim Tappet, 3.125mm | — | $10.18 | Available to order | 1 |
| 23 | T1130315 Shim, Tappet, 3.150 | Shim, Tappet, 3.150 | — | $10.18 | Available to order | 1 |
| 23 | T1130317 Shim Tappet, 3.175mm | Shim Tappet, 3.175mm | — | $10.18 | Available to order | 1 |
| 23 | T1130320 Shim, Tappet, 3.200 | Shim, Tappet, 3.200 | — | $10.18 | Available to order | 1 |
| 24 | T3990089 Gasket Kit Full | Gasket Kit Full > 254213 | 1 | $661.57 | Backorder — Late July 2026 | 1 |
| 24 | T3990093 Gasket Kit, Full | Gasket Kit, Full 254214 > | 1 | $661.57 | Available to order | 1 |
| 25 | T3990092 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head > 254213 | 1 | $516.55 | Available to order | 1 |
| 25 | T3990094 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head 254214 > | 1 | $516.55 | Available to order | 1 |
| 26 | T1152151 Cap, Chromed, Cyl HD bolt | Cap, Chromed, Cyl HD bolt | 1 | $3.17 | Available to order | 1 |
