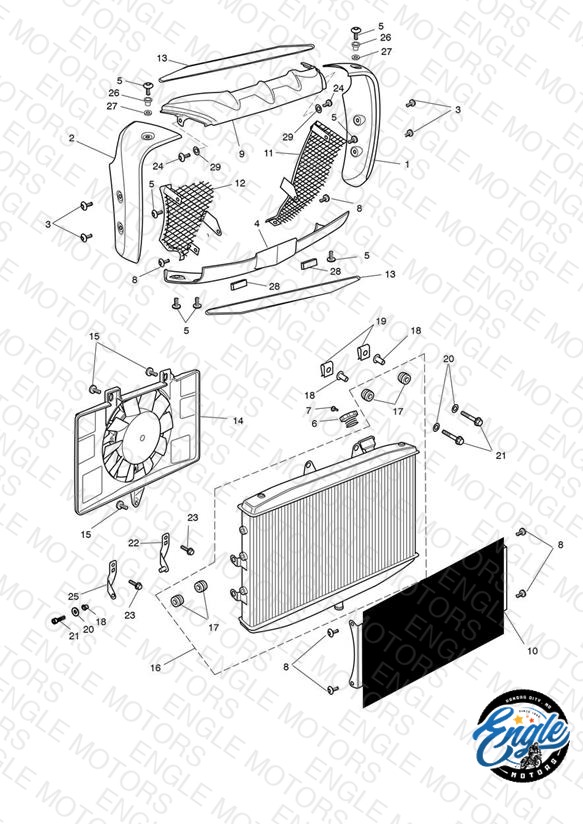

Cooling System - Cont’d
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2108413 Radiator Cover, LH | Radiator Cover, LH | 1 | $93.14 | Available to order | 1 |
| 2 | T2108414 Radiator Cover, RH | Radiator Cover, RH | 1 | $93.14 | Available to order | 1 |
| 3 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv > 476678 | 4 | $3.39 | Available to order | 4 |
| 4 | T2108418 Radiator Cover, Lower | Radiator Cover, Lower | 1 | $90.30 | Available to order | 1 |
| 5 | T3332666 Screw, But/Hd ,Skt, M6 x 1.0 x 12, S/S | Screw, But/Hd ,Skt, M6 x 1.0 x 12, S/S | 7 | $4.30 | Available to order | 7 |
| 6 | T2100069 Cap, Radiator, Chrome | Cap, Radiator, Chrome | 1 | $34.95 | Available to order | 1 |
| 7 | T3334333 Screw, Tritap, M3 x 3, Slv | Screw, Tritap, M3 x 3, Slv | 1 | $6.55 | Available to order | 1 |
| 8 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 6 | $3.90 | Available to order | 6 |
| 9 | T2108417 Rad Cover, Upper | Rad Cover, Upper | 1 | $90.30 | Available to order | 1 |
| 10 | T2107100 Grille, Radiator | Grille, Radiator | 1 | $148.31 | Available to order | 1 |
| 11 | T2107103 Kit, Grille Assy, Chrome | Kit, Grille Assy, Chrome > 549211 | 1 | $329.18 | Available to order | 1 |
| 11 | T2107101 Grille, Rad, Rear, LH | Grille, Rad, Rear, LH 549212 > | 1 | $178.72 | Available to order | 1 |
| 12 | T2107102 Grille, Rad, Rear, RH | Grille, Rad, Rear, RH 549212 > | 1 | $178.72 | Available to order | 1 |
| 13 | T2100764 Pad, Foam, Radiator | Pad, Foam, Radiator | 2 | $4.01 | Available to order | 2 |
| 14 | T2108308 Fan Assembly | Fan Assembly | 1 | $378.49 | Out of Stock | Notify Me |
| 15 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 3 | $0.97 | Available to order | 3 |
| 16 | T2108307 Radiator Assembly | Radiator Assembly | 1 | $878.98 | Out of Stock | Notify Me |
| 17 | T3021200 Grommet, Dia 14x4, Panel | Grommet, Dia 14x4, Panel | 4 | $3.17 | Available to order | 4 |
| 18 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 3 | $5.30 | Available to order | 3 |
| 19 | T3350091 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $2.37 | Backorder — Late July 2026 | 2 |
| 20 | T3551283 Washer, M10, 10.5x18x1.6, Slv | Washer, M10, 10.5x18x1.6, Slv | 3 | $2.00 | Available to order | 3 |
| 21 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 3 | $2.48 | Available to order | 3 |
| 22 | T2108309 Bracket, Radiator, Lower, LH | Bracket, Radiator, Lower, LH | 1 | $6.29 | Available to order | 1 |
| 23 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 25 | T2108319 Bracket, Radiator, Lower, RH | Bracket, Radiator, Lower, RH | 1 | $6.29 | Available to order | 1 |
| 26 | T3010500 Flanged Sleeve, M6 | Flanged Sleeve, M6 PART NO LONGER AVAILABLE | 2 | $3.27 | Obsolete | View Details |
| 27 | T3550188 Washer, Foam | Washer, Foam | 2 | $4.30 | Out of Stock | Notify Me |
| 28 | T3660171 Pad, Rubber, 30 x 10 x 5, thick | Pad, Rubber, 30 x 10 x 5, thick | 2 | $8.09 | Available to order | 2 |
| 29 | T3550213 Washer, Plastic, M6 | Washer, Plastic, M6 | 2 | $0.97 | Out of Stock | Notify Me |
| 30 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not Illustrated | — | $187.12 | Available to order | 1 |
