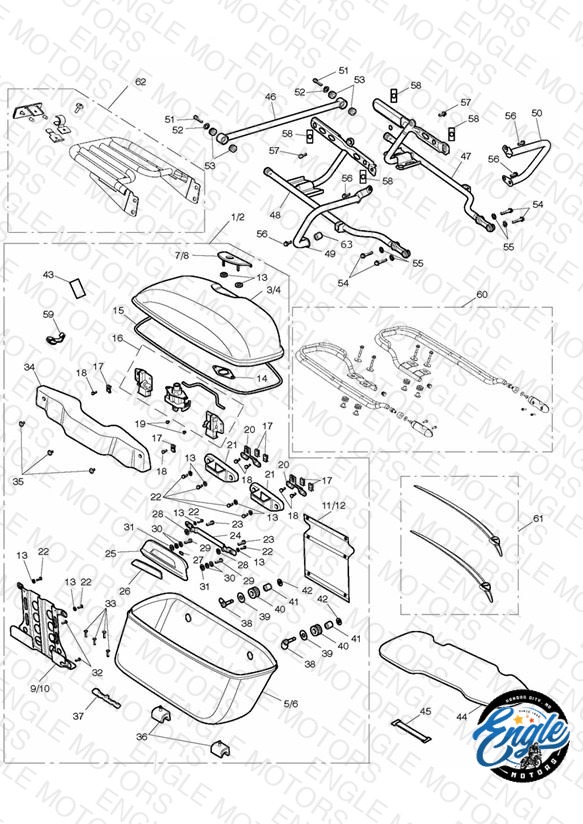

Triumph Rocket III Panniers — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2352020-CP Pannier Assembly, RH	Pannier Assembly, RH Jet Blk/Sunset Red: > 411983; > 561126 Special Edition	1	$2077.27	Available to order	1 Ships within 3–7 business days
1	T2352069-PG Pannier Assy, RH	Pannier Assy, RH Jet Black	1	$2077.27	Available to order	1 Ships within 3–7 business days
1	T2352069-JN Pannier Assy, RH	Pannier Assy, RH Eclipse Blue/Azure Blue	1	$2077.27	Out of Stock	Notify Me
1	T2352020-NG Pannier Assembly, RH	Pannier Assembly, RH Jet Blk/New England White: > 411983; > 561126 Special Edition	1	$2077.27	Out of Stock	Notify Me
1	T2352069-PR Pannier Assy, RH	Pannier Assy, RH Phantom Black - ABS Version > 574820	1	$2077.27	Available to order	1 Ships within 3–7 business days
1	T2352069-NW Pannier Assy, RH	Pannier Assy, RH Phantom Black/Crystal White - ABS Version > 550006	1	$2077.27	Out of Stock	Notify Me
1	T2352069-CX Pannier Assy, RH	Pannier Assy, RH Cranberry Red Over Phantom Black - ABS Version; 550007 > 574820	1	$2077.27	Out of Stock	Notify Me
1	T2353069-PR Pannier Assembly, RH	Pannier Assembly, RH Phantom Black - ABS Version - 574821 >	1	$1613.75	Out of Stock	Notify Me
1	T2353069-CX Pannier Assembly, RH	Pannier Assembly, RH Phantom Black Over Cranberry Red - ABS Version - 574821 >	1	$2077.27	Out of Stock	Notify Me
2	T2352010-CP Pannier Assembly, LH	Pannier Assembly, LH Jet Blk/Sunset Red: > 411983; > 561126 Special Edition	1	$2077.27	Out of Stock	Notify Me
2	T2352059-PG Pannier Assy, LH	Pannier Assy, LH Jet Black	1	$2077.27	Out of Stock	Notify Me
2	T2352059-JN Pannier Assy, LH	Pannier Assy, LH Eclipse Blue/Azure Blue	1	$2077.27	Out of Stock	Notify Me
2	T2352010-NG Pannier Assembly, LH	Pannier Assembly, LH Jet Blk/New England White: > 411983; > 561126 Special Edition	1	$2077.27	Out of Stock	Notify Me
2	T2352059-PR Pannier Assy, LH	Pannier Assy, LH Phantom Black - ABS Version > 574820	1	$2077.27	Out of Stock	Notify Me
2	T2352059-NW Pannier Assy, LH	Pannier Assy, LH Phantom Black/Crystal White - ABS Version	1	$2077.27	Out of Stock	Notify Me
2	T2352059-CX Pannier Assy, LH	Pannier Assy, LH Cranberry Red Over Phantom Black - ABS Version; 550007 > 574820	1	$2077.27	Out of Stock	Notify Me
2	T2353059-PR Pannier Assembly, LH	Pannier Assembly, LH Phantom Black - ABS Version - 574821 >	1	$2077.27	Out of Stock	Notify Me
2	T2353059-CX Pannier Assembly, LH	Pannier Assembly, LH Phantom Black Over Cranberry Red - ABS Version - 574821 >	1	$2077.27	Available to order	1 Ships within 3–7 business days
3	T2352071-PG Pannier Lid, Painted, RH	Pannier Lid, Painted, RH Jet Black	1	$651.31	Out of Stock	Notify Me
3	T2352071-JN Pannier Lid, Painted, RH	Pannier Lid, Painted, RH Eclipse Blue	1	$651.31	Out of Stock	Notify Me
3	T2352071-PR Pannier Lid, Painted, RH	Pannier Lid, Painted, RH Phantom Black - ABS Version > 574820	1	$648.90	Out of Stock	Notify Me
3	T2353071-PR Pannier Lid, Painted, RH	Pannier Lid, Painted, RH Phantom Black - ABS Version - 574821 >	1	$651.31	Available to order	1 Ships within 3–7 business days
3	T2353071-CX Pannier Lid, Painted, RH	Pannier Lid, Painted, RH Phantom Black/Cranberry Red - ABS Version - 574821 >	1	$651.31	Available to order	1 Ships within 3–7 business days
4	T2352041-PG Pannier Lid, Painted, LH	Pannier Lid, Painted, LH Jet Black	1	$651.31	Available to order	1 Ships within 3–7 business days
4	T2352041-JN Pannier Lid, Painted, LH	Pannier Lid, Painted, LH Eclipse Blue	1	$651.31	Out of Stock	Notify Me
4	T2352041-PR Pannier Lid, Painted, LH	Pannier Lid, Painted, LH Phantom Black - ABS Version > 574820	1	$2322.65	Out of Stock	Notify Me
4	T2353041-PR Pannier Lid, Painted, LH	Pannier Lid, Painted, LH Phantom Black - ABS Version - 574821 >	1	$651.31	Backorder — Early August 2026	1
4	T2353041-CX Pannier Lid, Painted, LH	Pannier Lid, Painted, LH Phantom Black/Cranberry Red - ABS Version - 574821 >	1	$651.31	Available to order	1 Ships within 3–7 business days
5	T2352023-CP Pannier Base, Painted, RH	Pannier Base, Painted, RH Jet Blk/Sunset Red: > 411983; > 561126 Special Edition	1	$774.57	Available to order	1 Ships within 3–7 business days
5	T2352063-PG Pannier Base, Painted, RH	Pannier Base, Painted, RH Jet Black	1	$774.57	Out of Stock	Notify Me
5	T2352063-JN Pannier Base, Painted, RH	Pannier Base, Painted, RH Eclipse Blue/Azure Blue	1	$774.57	Available to order	1 Ships within 3–7 business days
5	T2352023-NG Pannier Base, Painted, RH	Pannier Base, Painted, RH Jet Blk/New England White: > 411983; > 561126 Special Edition	1	$774.57	Out of Stock	Notify Me
5	T2352063-PR Pannier Base, Painted, RH	Pannier Base, Painted, RH Phantom Black - ABS Version > 574820	1	$774.57	Out of Stock	Notify Me
5	T2352063-NW Pannier Base, Painted, RH	Pannier Base, Painted, RH Phantom Black/Crystal White - ABS Version > 550006	1	$774.57	Out of Stock	Notify Me
5	T2352063-CX Pannier Base, Painted, RH	Pannier Base, Painted, RH Phantom Black/Cranberry Red - ABS Version; 550007 > 574820	1	$774.57	Out of Stock	Notify Me
5	T2353063-PR Pannier Base, Painted, RH	Pannier Base, Painted, RH Phantom Black - ABS Version - 574821 >	1	$774.57	Available to order	1 Ships within 3–7 business days
5	T2353063-CX Pannier Base, Painted, RH	Pannier Base, Painted, RH Phantom Black/Cranberry Red - ABS Version - 574821 >	1	$774.57	Out of Stock	Notify Me
6	T2352013-CP Pannier Base, Painted, LH	Pannier Base, Painted, LH Jet Blk/Sunset Red: > 411983; > 561126 Special Edition	1	$774.57	Out of Stock	Notify Me
6	T2352073-PG Pannier Base, Painted, LH	Pannier Base, Painted, LH Jet Black	1	$774.57	Backorder — Late July 2026	1
6	T2352073-JN Pannier Base, Painted, LH	Pannier Base, Painted, LH Eclipse Blue/Azure Blue	1	$774.57	Out of Stock	Notify Me
6	T2352013-NG Pannier Base, Painted, LH	Pannier Base, Painted, LH Jet Blk/New England White: > 411983; > 561126 Special Edition	1	$774.57	Out of Stock	Notify Me
6	T2352073-PR Pannier Base, Painted, LH	Pannier Base, Painted, LH Phantom Black - ABS Version > 574820	1	$774.57	Out of Stock	Notify Me
6	T2352073-NW Pannier Base, Painted, LH	Pannier Base, Painted, LH Phantom Black/Crystal White - ABS Version > 550006	1	$774.57	Out of Stock	Notify Me
6	T2352073-CX Pannier Base, Painted, LH	Pannier Base, Painted, LH Phantom Black/Cranberry Red - ABS Version; 550007 > 574820	1	$774.57	Out of Stock	Notify Me
6	T2353073-PR Pannier Base, Painted, LH	Pannier Base, Painted, LH Phantom Black - ABS Version - 574821 >	1	$774.57	Out of Stock	Notify Me
6	T2353073-CX Pannier Base, Painted, LH	Pannier Base, Painted, LH Phantom Black/Cranberry Red - ABS Version - 574821 >	1	$774.57	Out of Stock	Notify Me
7	T2352025 Lid, Handle, Pannier, RH	Lid, Handle, Pannier, RH	1	$69.37	Available to order	1 Ships within 3–7 business days
8	T2352015 Lid, Handle, Pannier, LH	Lid, Handle, Pannier, LH	1	$69.37	Available to order	1 Ships within 3–7 business days
9	T2352026 Support Pressing, Pannier, RH	Support Pressing, Pannier, RH	1	$51.31	Available to order	1 Ships within 3–7 business days
10	T2352016 Support Pressing, Pannier, LH	Support Pressing, Pannier, LH	1	$51.31	Out of Stock	Notify Me
11	T2352037 Storage Pouch, Pannier, RH	Storage Pouch, Pannier, RH	1	$12.83	Out of Stock	Notify Me
12	T2352027 Storage Pouch, Pannier, LH	Storage Pouch, Pannier, LH	1	$12.83	Available to order	1 Ships within 3–7 business days
13	T3550249 Washer, 11 x 5.1 x 0.8	Washer, 11 x 5.1 x 0.8	20	$2.25	Available to order	20 Ships within 3–7 business days
14	T2352005 Gasket, Pannier Lock	Gasket, Pannier Lock	2	$14.58	Available to order	2 Ships within 3–7 business days
15	T3660165 Rubber Seal	Rubber Seal	2	$34.11	Available to order	2 Ships within 3–7 business days
16	T2352000 Lock/Latch Mechansim Set	Lock/Latch Mechansim Set	2	$117.87	Available to order	2 Ships within 3–7 business days
17	T3350123 Nut, Captive, M5, Non-Secured	Nut, Captive, M5, Non-Secured	12	$2.48	Available to order	12 Ships within 3–7 business days
18	T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041	Bolt, RHHF, M5 x 0.8 x 12, S5041	12	$3.24	Available to order	12 Ships within 3–7 business days
19	T3350010 Locknut, Flgd, M5	Locknut, Flgd, M5	4	$2.25	Available to order	4 Ships within 3–7 business days
20	T2352008 Latch Striker, Pannier	Latch Striker, Pannier	4	$13.61	Available to order	4 Ships within 3–7 business days
21	T2352009 Cover, Latch Striker	Cover, Latch Striker	4	$30.88	Out of Stock	Notify Me
22	T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv	Screw, Pan/Hd, Tx, M5 x 12, Slv	16	$5.67	Available to order	16 Ships within 3–7 business days
23	T3330893 Bolt, RHHF, M5 x 25, S5041	Bolt, RHHF, M5 x 25, S5041	8	$1.13	Available to order	8 Ships within 3–7 business days
24	T2352007 Bracket, Hinge, Pannier	Bracket, Hinge, Pannier	2	$14.89	Available to order	2 Ships within 3–7 business days
25	T2352006 Hinge, Pannier	Hinge, Pannier	2	$70.35	Available to order	2 Ships within 3–7 business days
26	T2702000 Reflector, Red	Reflector, Red	2	$11.88	Available to order	2 Ships within 3–7 business days
27	T3660160 Rubber Pad, Adhesive	Rubber Pad, Adhesive	2	$2.95	Backorder — Late July 2026	2
28	T3600331 Rubber Washer	Rubber Washer	4	$1.62	Available to order	4 Ships within 3–7 business days
29	T3330892 Bolt, RHHF, M5 x 15, S5041	Bolt, RHHF, M5 x 15, S5041	4	$1.13	Available to order	4 Ships within 3–7 business days
30	T3551178 Washer, M5 x 15 x 1.6	Washer, M5 x 15 x 1.6	8	$0.97	Available to order	8 Ships within 3–7 business days
31	T3600330 Rubber Washer	Rubber Washer	8	$1.62	Available to order	8 Ships within 3–7 business days
32	T3701098 Firtree, Dia 5 x 18	Firtree, Dia 5 x 18	4	$5.24	Available to order	4 Ships within 3–7 business days
33	T3331260 Screw, Thread Forming, 5 x 20	Screw, Thread Forming, 5 x 20	8	$10.34	Backorder — Early August 2026	8
34	T2352019 Cover, Latch Mechanism	Cover, Latch Mechanism	2	$54.20	Available to order	2 Ships within 3–7 business days
35	T3701121 Rivet, Plastic, Screw Type	Rivet, Plastic, Screw Type	6	$1.21	Available to order	6 Ships within 3–7 business days
36	T2352017 Rubber Mount, Pannier	Rubber Mount, Pannier	4	$19.47	Available to order	4 Ships within 3–7 business days
37	T2352029 Badge, Pannier	Badge, Pannier	2	$31.16	Available to order	2 Ships within 3–7 business days
38	T3331312 Stud, Quarter Turn, 8.0	Stud, Quarter Turn, 8.0	4	$10.55	Available to order	4 Ships within 3–7 business days
39	T3555033 Washer, 8.4 x 24 x 2	Washer, 8.4 x 24 x 2	4	$2.74	Available to order	4 Ships within 3–7 business days
40	T3020220 Grommet	Grommet	4	$4.92	Available to order	4 Ships within 3–7 business days
41	T3010058 SLEEVE, FLANGED, 10.4X15X15.2	SLEEVE, FLANGED, 10.4X15X15.2	4	$5.02	Available to order	4 Ships within 3–7 business days
42	T3550315 Nylon Washer, ID9, OD19	Nylon Washer, ID9, OD19	4	$2.74	Available to order	4 Ships within 3–7 business days
43	T3900395 Label, Luggage Loading	Label, Luggage Loading	2	$5.69	Available to order	2 Ships within 3–7 business days
44	T2352018 Foam Mat, Pannier	Foam Mat, Pannier	2	$12.83	Available to order	2 Ships within 3–7 business days
45	T2501730 Battery Strap	Battery Strap In LH pannier	1	$10.18	Available to order	1 Ships within 3–7 business days
46	T2352035 Link, Pannier Rail	Link, Pannier Rail	1	$87.47	Available to order	1 Ships within 3–7 business days
47	T2352040 Rail, Pannier Mountings, LH	Rail, Pannier Mountings, LH	1	$148.31	Out of Stock	Notify Me
48	T2352050 Rail, Pannier Mountings, RH	Rail, Pannier Mountings, RH	1	$148.31	Available to order	1 Ships within 3–7 business days
49	T2352075 Dresser Bar, Pannier, RH	Dresser Bar, Pannier, RH	1	$104.56	Out of Stock	Notify Me
50	T2352070 Dresser Bar, Pannier, LH	Dresser Bar, Pannier, LH	1	$104.56	Out of Stock	Notify Me
51	T3051097 Screw, Cap/Hd, M8 x 25, Silver	Screw, Cap/Hd, M8 x 25, Silver	2	$4.12	Available to order	2 Ships within 3–7 business days
53	T3020320 Grommet, Top Hat	Grommet, Top Hat	4	$1.73	Obsolete	View Details
54	T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv	Bolt, RHHF, M8 x 1.25 x 45, Slv	4	$1.62	Available to order	4 Ships within 3–7 business days
55	T3550184 Washer, Hardened, 8.2 x 18.7 x 2	Washer, Hardened, 8.2 x 18.7 x 2	4	$2.25	Backorder — Early August 2026	4
56	T3205156 Bolt, HHF, Lghtd, M8 x 16, Slv	Bolt, HHF, Lghtd, M8 x 16, Slv	4	$1.62	Available to order	4 Ships within 3–7 business days
57	T3200145 Bolt, HHF, M10 x 20, Enc	Bolt, HHF, M10 x 20, Enc	2	$9.69	Available to order	2 Ships within 3–7 business days
58	T3350096 Receptacle, Quarter Turn	Receptacle, Quarter Turn	4	$10.55	Available to order	4 Ships within 3–7 business days
60	A9758115 Guard Rails, Pannier Kit	Guard Rails, Pannier Kit Special Edition Only > 541308	1	$199.00	Obsolete	View Details
61	A9738063 Pannier Trim Kit	Pannier Trim Kit Special Edition Only > 541308	1	$56.00	Obsolete	View Details
62	A9758068 Luggage Rack Kit	Luggage Rack Kit Special Edition Only	1	$102.00	Obsolete	View Details
63	T2352076 Plug, Dresser Bar	Plug, Dresser Bar	1	$1.41	Obsolete	View Details
