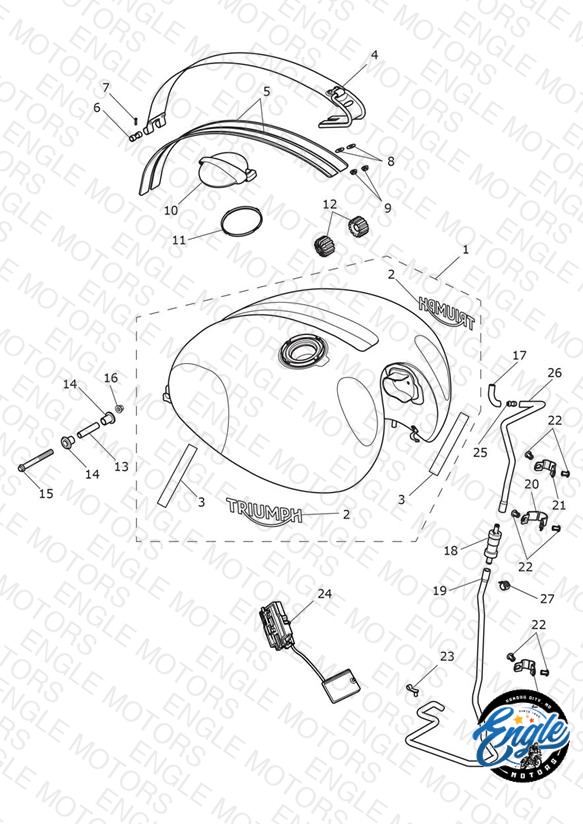

Fuel Tank
← Exhaust SystemEvap System - All Mkts Except AU, ID, NZ & ZA > 937358 & All Mkts Except AU, ID & NZ - 937359 > →
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2401629-PG Fuel Tank Assembly | Fuel Tank Assembly Jet Black | 1 | $1891.09 | Available to order | 1 |
| 1 | T2401629-HS Fuel Tank Assembly | Fuel Tank Assembly Khaki Green | 1 | $2289.21 | Backorder — Mid August 2026 | 1 |
| 2 | T2409024 Tank Badge Kit, 140mm | Tank Badge Kit, 140mm > 984030 | 1 | $65.62 | Available to order | 1 |
| 2 | T2401563 Tank Badge, 140mm | Tank Badge, 140mm 984031 > | 2 | $69.37 | Available to order | 2 |
| 3 | T2401746 Decal, Fuel Tank | Decal, Fuel Tank Fitted to Black Bikes | 2 | $49.07 | Available to order | 2 |
| 3 | T2401747 Decal, Fuel Tank | Decal, Fuel Tank Fitted to Green Bikes | 2 | $49.07 | Available to order | 2 |
| 4 | T2403710 Strap, Fuel Tank, Fabrication | Strap, Fuel Tank, Fabrication | 1 | $182.13 | Backorder — Late August 2026 | 1 |
| 5 | T2403805 Gasket, Tank Strap, Adhesive | Gasket, Tank Strap, Adhesive | 2 | $29.03 | Available to order | 2 |
| 6 | T2401447 Tank Strap, Boss | Tank Strap, Boss | 1 | $18.85 | Backorder — Late July 2026 | 1 |
| 7 | T3330659 Screw, Pan/Hd, TX, M5 x 25, Enc | Screw, Pan/Hd, TX, M5 x 25, Enc | 1 | $3.73 | Available to order | 1 |
| 8 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 2 | $0.97 | Available to order | 2 |
| 9 | T3350010 Locknut, Flgd, M5 | Locknut, Flgd, M5 | 2 | $2.25 | Available to order | 2 |
| 10 | T2400812 Fuel Filler Cap, Monza | Fuel Filler Cap, Monza | 1 | $98.85 | Available to order | 1 |
| 11 | T2401403 Fixture Ring, Plastic | Fixture Ring, Plastic | 2 | $7.02 | Available to order | 2 |
| 12 | T2400854 Tank Mount Bush | Tank Mount Bush | 2 | $2.74 | Available to order | 2 |
| 13 | T2401401 Turned Spacer, Tank Mount | Turned Spacer, Tank Mount | 1 | $8.65 | Backorder — Early August 2026 | 1 |
| 14 | T2403597 Rubber Bush | Rubber Bush | 2 | $3.50 | Available to order | 2 |
| 15 | T3202330 Bolt, RHHF, M6 x 90, Slv | Bolt, RHHF, M6 x 90, Slv | 1 | $11.03 | Backorder — Mid August 2026 | 1 |
| 16 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 1 | $0.67 | Available to order | 1 |
| 17 | T1240644 Hose, Tank to Restrictor | Hose, Tank to Restrictor | 2 | $11.12 | Out of Stock | Notify Me |
| 18 | T2405042 Roll Over Valve | Roll Over Valve | 1 | $40.38 | Out of Stock | Notify Me |
| 19 | T2401581 Hose, Roll Over to Drain | Hose, Roll Over to Drain AU, ID & NZ Only | 1 | $12.63 | Out of Stock | Notify Me |
| 20 | T1241673 Guide, Hose & Valve | Guide, Hose & Valve | 1 | $12.63 | Out of Stock | Notify Me |
| 21 | T2101679 Hose Guide | Hose Guide | 2 | $5.42 | Available to order | 2 |
| 22 | T3700120 Rivet, Plastic | Rivet, Plastic | 6 | $0.97 | Available to order | 6 |
| 23 | T3700091 Clip Cable | Clip Cable | 1 | $1.13 | Available to order | 1 |
| 24 | T2402031 Fuel Level Sensor | Fuel Level Sensor | 1 | $241.45 | Available to order | 1 |
| 25 | T2401851 Restrictor, Hose, Breather | Restrictor, Hose, Breather | 1 | $11.32 | Out of Stock | Notify Me |
| 26 | T2401969 Hose, Restrictor to Rollover Valve | Hose, Restrictor to Rollover Valve | 1 | $11.32 | Backorder — Early August 2026 | 1 |
| 27 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
