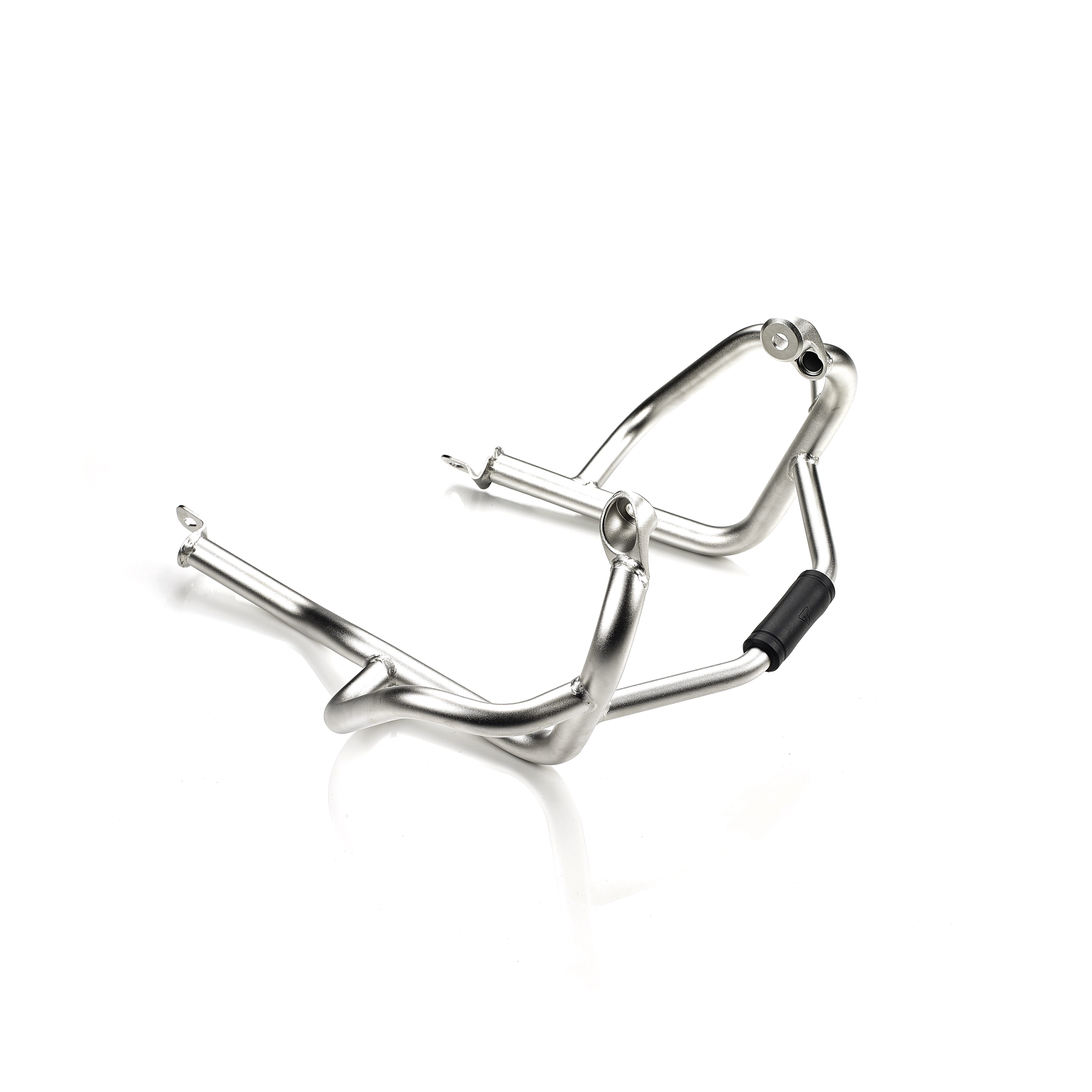

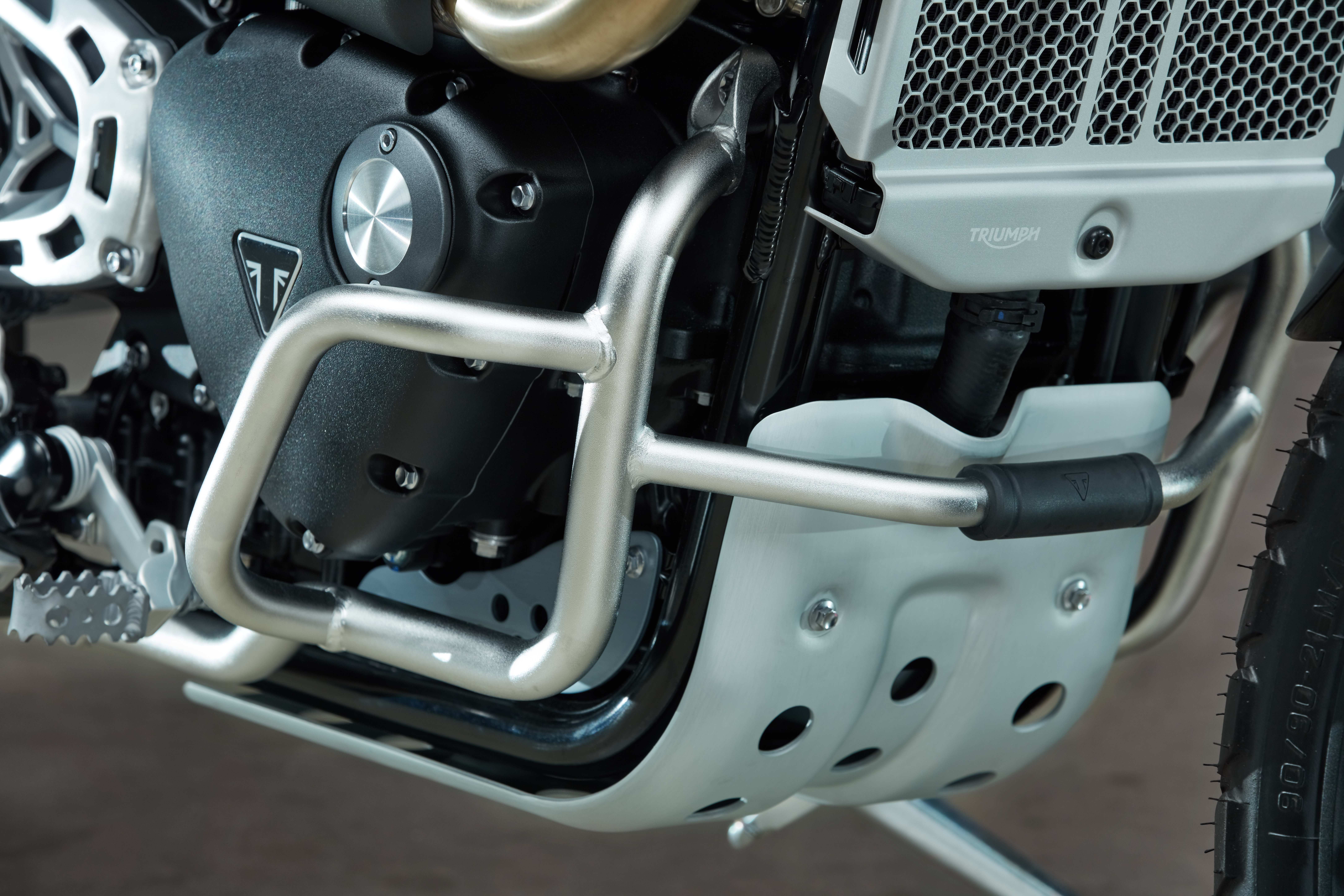

Dresser Bar Kit, Cage, Stainless Steel

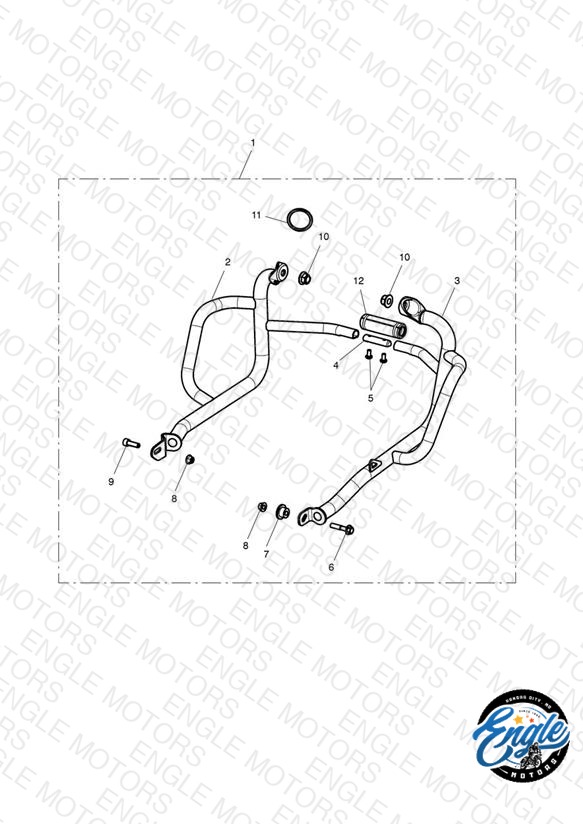

Schematic
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9788055 Dresser Bar Kit, S/S | Dresser Bar Kit, S/S Replaced by A9780119 | 1 | $255.00 | Unavailable | View Details |
| 2 | T9788058 Dresser Bar, LH, S/S | Dresser Bar, LH, S/S | 1 | $200.23 | Available to order | 1 |
| 3 | T9788059 Dresser Bar, RH, S/S | Dresser Bar, RH, S/S | 1 | $200.23 | Available to order | 1 |
| 4 | T2071686 Engine Dresser Bar Assy, Centre | Engine Dresser Bar Assy, Centre | 1 | $53.24 | Available to order | 1 |
| 5 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 6 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 1 | $3.04 | Available to order | 1 |
| 7 | T3010716 Sleeve, Flanged, M8 | Sleeve, Flanged, M8 | 1 | $5.56 | Available to order | 1 |
| 8 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
| 9 | T3205254 Bolt, HHF, Lghtd, M8 x 20, Slv | Bolt, HHF, Lghtd, M8 x 20, Slv | 1 | $1.62 | Backorder — Early August 2026 | 1 |
| 10 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 2 | $6.07 | Available to order | 2 |
| 11 | T2201429 Gasket, Exhaust Header | Gasket, Exhaust Header | 1 | $15.93 | Available to order | 1 |
| 12 | T9788060 Sleeve, Rubber, Dresser Bars | Sleeve, Rubber, Dresser Bars | 1 | $6.67 | Available to order | 1 |
