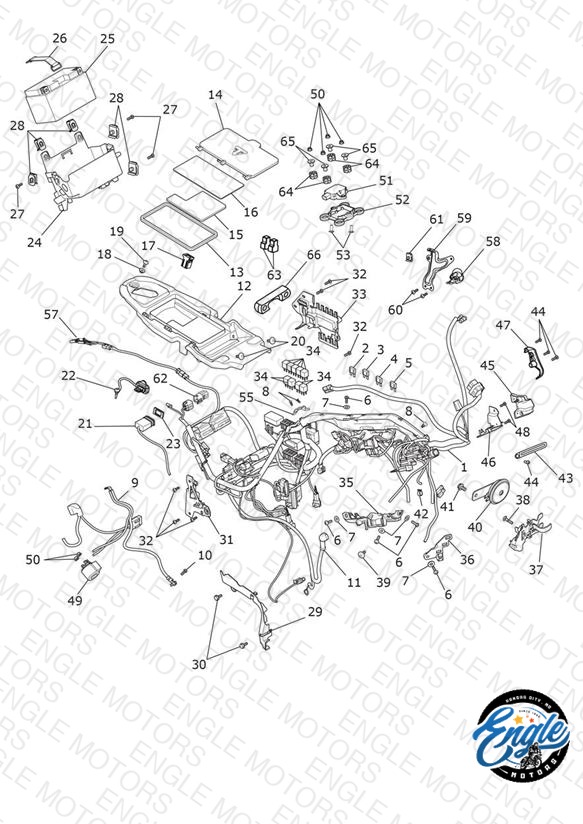

Electrical Equipment
Parts (74)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2502577 Main Harness | Main Harness > 945857 | 1 | $1241.15 | Unavailable | 1 |
| 1 | T2502624 Main Harness | Main Harness 945858 > All Except CN | 1 | $1241.15 | Available to order | 1 |
| 1 | T2502877 Main Harness | Main Harness CN Only | 1 | $1239.23 | Backorder — Late July 2026 | 1 |
| 2 | T2501325 Fuse, Mini, 25A | Fuse, Mini, 25A | 1 | $4.74 | Available to order | 1 |
| 3 | T2501315 Fuse, Mini, 15A | Fuse, Mini, 15A | 3 | $4.74 | Backorder — Early August 2026 | 3 |
| 4 | T2501310 Fuse, Mini, 10A | Fuse, Mini, 10A | 4 | $4.74 | Available to order | 4 |
| 5 | T2501305 Fuse, Mini, 5A | Fuse, Mini, 5A | 1 | $4.74 | Backorder — Early August 2026 | 1 |
| 6 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 5 | $5.30 | Available to order | 5 |
| 7 | T3555025 Washer, 6.4 x 18 x 1.6 | Washer, 6.4 x 18 x 1.6 | 5 | $1.72 | Available to order | 5 |
| 8 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 3 | $5.24 | Available to order | 3 |
| 9 | T2502462 Subharness, Battery | Subharness, Battery > 954861 | 1 | $95.04 | Available to order | 1 |
| 9 | T2502463 Subharness, Battery | Subharness, Battery 954862 > | 1 | $95.04 | Available to order | 1 |
| 10 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Out of Stock | Notify Me |
| 11 | T2501939 Starter Lead | Starter Lead | 1 | $77.01 | Out of Stock | Notify Me |
| 12 | T2308216 Base, Storage Box | Base, Storage Box | 1 | $16.78 | Available to order | 1 |
| 13 | T2311828 Seal, Storage Box, 3.7mm | Seal, Storage Box, 3.7mm | 1 | $16.74 | Available to order | 1 |
| 14 | T2307976 Lid, Storage Box | Lid, Storage Box | 1 | $33.23 | Backorder — Early August 2026 | 1 |
| 15 | T2501911 Foam Pad, Base, Storage Box | Foam Pad, Base, Storage Box | 1 | $31.64 | Obsolete | View Details |
| 16 | T2501912 Foam Pad, Lid, Storage Box | Foam Pad, Lid, Storage Box | 1 | $27.53 | Available to order | 1 |
| 17 | T2309804 Push Latch | Push Latch | 1 | $31.47 | Available to order | 1 |
| 18 | T3010706 Flanged Sleeve, 5.2 x 7 x 6.3 | Flanged Sleeve, 5.2 x 7 x 6.3 | 1 | $5.30 | Available to order | 1 |
| 19 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 1 | $6.73 | Available to order | 1 |
| 20 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 21 | T2501965 Charger, USB, 5V | Charger, USB, 5V | 1 | $40.59 | Out of Stock | Notify Me |
| 22 | T2502507 Cover, USB, Rubber | Cover, USB, Rubber | 1 | $5.67 | Out of Stock | Notify Me |
| 23 | T2308282 Gasket, USB | Gasket, USB | 1 | $11.50 | Available to order | 1 |
| 24 | T2503420 Battery Box Moulding | Battery Box Moulding | 1 | $88.26 | Available to order | 1 |
| 25 | T2505583 Battery, 12V, 8,6AH, FCB | Battery, 12V, 8,6AH, FCB N/A to EF/ER/GR/BR Markets | 1 | $223.03 | Available to order | 1 |
| 25 | T2506213 Kit, Battery, YTZ10S | Kit, Battery, YTZ10S EF/ER/GR Markets Only | 1 | $223.03 | Out of Stock | Notify Me |
| 25 | T2502467 Battery Kit | Battery Kit BR Only | 1 | $233.60 | Backorder — Late July 2026 | 1 |
| 26 | T2501730 Battery Strap | Battery Strap | 1 | $10.18 | Available to order | 1 |
| 27 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 3 | $2.63 | Available to order | 3 |
| 28 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 5 | $4.92 | Backorder — Early August 2026 | 5 |
| 29 | T2501772 Moulding, Starter Cable Guide | Moulding, Starter Cable Guide | 1 | $15.95 | Available to order | 1 |
| 30 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 2 | $3.50 | Available to order | 2 |
| 31 | T2502241 Connector, Airbox, Moulding | Connector, Airbox, Moulding | 1 | $42.51 | Out of Stock | Notify Me |
| 32 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 6 | $1.51 | Backorder — Early August 2026 | 6 |
| 33 | T2501647 Bracket, Relays, Moulding | Bracket, Relays, Moulding | 1 | $23.69 | Available to order | 1 |
| 34 | T2507729 Relay, Ultra Micro, ISO 280 | Relay, Ultra Micro, ISO 280 | 9 | $7.53 | Backorder — Early August 2026 | 9 |
| 35 | T1290354 Moulding, Coils Bracket | Moulding, Coils Bracket All Except CN | 1 | $11.41 | Available to order | 1 |
| 35 | T2503720 Moulding, Coils Bracket | Moulding, Coils Bracket CN Only | 1 | $11.41 | Backorder — Late July 2026 | 1 |
| 36 | T2501775 Moulding, Bracket, Connectors, Headstock | Moulding, Bracket, Connectors, Headstock | 1 | $10.28 | Available to order | 1 |
| 37 | T2501837 Bracket, Purge Valve | Bracket, Purge Valve All Except CN | 1 | $18.38 | Backorder — Late July 2026 | 1 |
| 37 | T2502641 Bracket, Purge Valve | Bracket, Purge Valve CN Only | 1 | $28.34 | Out of Stock | Notify Me |
| 38 | T3330231 Screw, Lge Skt Hd, M6 X 1 X 25 | Screw, Lge Skt Hd, M6 X 1 X 25 | 1 | $13.51 | Available to order | 1 |
| 39 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
| 40 | T2507002 Horn Assy, 440 Hz | Horn Assy, 440 Hz | 1 | $53.24 | Backorder — Mid August 2026 | 1 |
| 41 | T3201228 Bolt, HHF, M8 x 14, Slv | Bolt, HHF, M8 x 14, Slv | 1 | $2.74 | Available to order | 1 |
| 42 | T3700108 Clip, Cable, 14.3 x 10 | Clip, Cable, 14.3 x 10 | 1 | $3.24 | Available to order | 1 |
| 43 | T3700405 Clip, Harness | Clip, Harness | 1 | $4.01 | Available to order | 1 |
| 44 | T3331441 Screw, S/Tap, Pan, Torx, 4 x 10 | Screw, S/Tap, Pan, Torx, 4 x 10 > 961429 | 4 | $1.21 | Available to order | 4 |
| 44 | T3332655 Screw, But/HD, M5 x 12. Slv | Screw, But/HD, M5 x 12. Slv 961430 > | 4 | $0.89 | Unavailable | 4 |
| 45 | T2502121 Headstock, Outer Moulding | Headstock, Outer Moulding > 961429 | 1 | $12.44 | Out of Stock | Notify Me |
| 45 | T2502725 Headstock, Outer, Moulding | Headstock, Outer, Moulding 961430 > | 1 | $34.11 | Out of Stock | Notify Me |
| 46 | T2501971 Bracket, Headstock, Innner | Bracket, Headstock, Innner > 961429 | 1 | $10.55 | Backorder — Early August 2026 | 1 |
| 46 | T2502695 Bracket, Headstock, Inner | Bracket, Headstock, Inner 961430 > | 1 | $24.43 | Out of Stock | Notify Me |
| 47 | T2502528 Moulding, Retention, Brake Line | Moulding, Retention, Brake Line | 1 | $8.28 | Backorder — Early August 2026 | 1 |
| 48 | T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv | Screw, Pan/Hd, Tx, M5 x 12, Slv | 2 | $5.67 | Available to order | 2 |
| 49 | T1310008 Starter Solenoid Assy | Starter Solenoid Assy | 1 | $73.17 | Available to order | 1 |
| 50 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 6 | $0.67 | Available to order | 6 |
| 51 | T2504093 Inertial Measurement Unit | Inertial Measurement Unit | 1 | $440.08 | Available to order | 1 |
| 52 | T2508950 Carrier, IMU | Carrier, IMU | 1 | $37.93 | Available to order | 1 |
| 53 | T3331010 Bolt, But/Hd, Skt, M6 x 16, S/S | Bolt, But/Hd, Skt, M6 x 16, S/S | 2 | $4.30 | Available to order | 2 |
| 55 | T2501864 Moulding, Cable & Hose Guide | Moulding, Cable & Hose Guide | 1 | $12.29 | Out of Stock | Notify Me |
| 57 | T2509089 Subharness, Rear Light | Subharness, Rear Light | 1 | $85.52 | Backorder — Late July 2026 | 1 |
| 58 | T2502214 Switch, Rotational | Switch, Rotational CA & US Only | 2 | $89.35 | Available to order | 2 |
| 59 | T2502232 Bracket, Rotational Switch | Bracket, Rotational Switch CA & US Only | 1 | $8.93 | Available to order | 1 |
| 60 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT CA & US Only | 2 | $0.75 | Available to order | 2 |
| 61 | T3700162 Clip, Cable/Pipe | Clip, Cable/Pipe | 1 | $1.13 | Backorder — Early August 2026 | 1 |
| 62 | T2502238 Plug, 6-Way | Plug, 6-Way | 1 | $8.62 | Out of Stock | Notify Me |
| 63 | T2506066 Cover, Relay, Moulding | Cover, Relay, Moulding | 2 | $7.62 | Available to order | 2 |
| 64 | T3020601 Grommet, Castellated | Grommet, Castellated | 4 | $4.01 | Available to order | 4 |
| 65 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 4 | $4.12 | Available to order | 4 |
| 66 | T2509856 Spacer, Battery, Rubber | Spacer, Battery, Rubber | 1 | $13.99 | Available to order | 1 |
