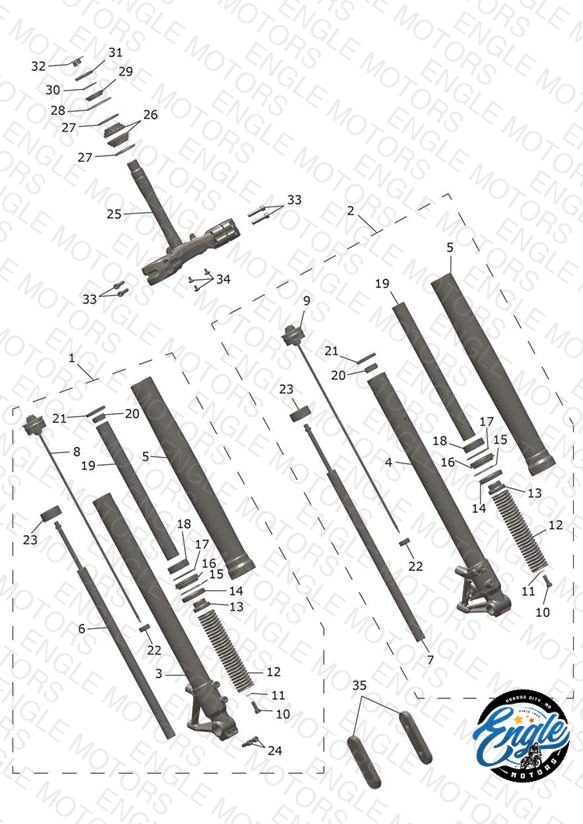

Triumph Scrambler 1200 Front Forks & Lower Yoke — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2042399 Stanchion Assy, 47mm, RH	Stanchion Assy, 47mm, RH	1	$1298.16	Available to order	1 Ships within 3–7 business days
2	T2043588 Stanchion Assy, 47mm, LH	Stanchion Assy, 47mm, LH	1	$1144.92	Out of Stock	Notify Me
3	T2043348 Slider Assy, RH	Slider Assy, RH	1	$828.61	Available to order	1 Ships within 3–7 business days
4	T2043340 Slider Assy, LH	Slider Assy, LH	1	$828.61	Available to order	1 Ships within 3–7 business days
5	T2043341 Outer tube	Outer tube	2	$393.68	Available to order	2 Ships within 3–7 business days
6	T2043349 Damper Assy, RH	Damper Assy, RH	1	$479.32	Available to order	1 Ships within 3–7 business days
7	T2043342 Damper Assy, LH	Damper Assy, LH	1	$479.32	Available to order	1 Ships within 3–7 business days
8	T2043350 Fork Cap Assy, RH	Fork Cap Assy, RH	1	$125.28	Available to order	1 Ships within 3–7 business days
9	T2043346 Fork Cap Assy, LH	Fork Cap Assy, LH	1	$125.28	Available to order	1 Ships within 3–7 business days
10	T2046164 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$9.10	Available to order	2 Ships within 3–7 business days
11	T2042907 Sealing washer	Sealing washer	2	$1.13	Available to order	2 Ships within 3–7 business days
12	T2043343 Spring	Spring	2	$81.79	Available to order	2 Ships within 3–7 business days
13	T2043344 SPG Joint	SPG Joint	2	$8.25	Out of Stock	Notify Me
14	T2045660 Seal, Front Fork	Seal, Front Fork	2	$23.67	Available to order	2 Ships within 3–7 business days
15	T2041690 Oil Seal Stopper Ring	Oil Seal Stopper Ring	2	$23.35	Available to order	2 Ships within 3–7 business days
16	T2041541 Dust Seal	Dust Seal	2	$20.66	Available to order	2 Ships within 3–7 business days
17	T2045659 Seal Spacer	Seal Spacer	2	$8.75	Available to order	2 Ships within 3–7 business days
18	T2041173 Bush, Guide	Bush, Guide	2	$14.32	Available to order	2 Ships within 3–7 business days
19	T2043345 SPG Collar	SPG Collar	2	$41.91	Out of Stock	Notify Me
20	T2046178 Slider	Slider	2	$13.18	Out of Stock	Notify Me
21	T2043347 Seat Rubber	Seat Rubber	2	$3.70	Available to order	2 Ships within 3–7 business days
22	T2048174 Centering Plate	Centering Plate	2	$14.16	Out of Stock	Notify Me
23	T2041184 Bush, Slider	Bush, Slider	2	$14.58	Available to order	2 Ships within 3–7 business days
24	T2046146 Hex Socket Bolt	Hex Socket Bolt	2	$5.42	Out of Stock	Notify Me
25	T2041681 Lower Yoke Assembly	Lower Yoke Assembly	1	$642.32	Available to order	1 Ships within 3–7 business days
26	T3800091 Bearing, Sac	Bearing, Sac	2	$33.95	Available to order	2 Ships within 3–7 business days
27	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	2	$8.34	Available to order	2 Ships within 3–7 business days
28	T2042138 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.90	Available to order	1 Ships within 3–7 business days
29	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
30	T2042738 Rubber Washer	Rubber Washer	1	$1.13	Available to order	1 Ships within 3–7 business days
31	T2040304 Locknut, M30	Locknut, M30	1	$20.60	Available to order	1 Ships within 3–7 business days
32	T2044184 Washer, Tabbed	Washer, Tabbed	1	$10.78	Out of Stock	Notify Me
33	T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv	Screw, Cap/Hd, M8 x 1.25 x 35, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
34	T3330958 Screw, But/Hd, M5 x 10, Blk, Enc	Screw, But/Hd, M5 x 10, Blk, Enc	3	$0.97	Available to order	3 Ships within 3–7 business days
35	T2700454 Amber reflector	Amber reflector	2	$6.14	Available to order	2 Ships within 3–7 business days
