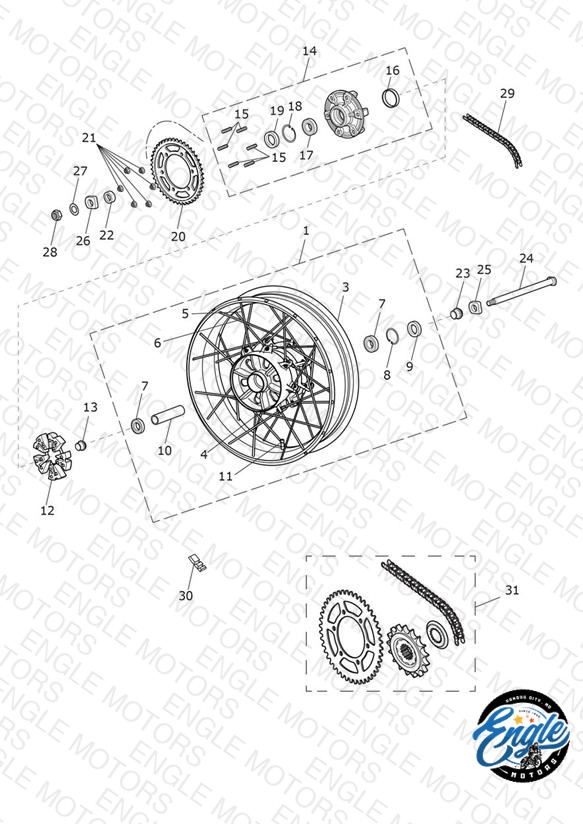

Rear Wheel
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2010578 Rear Wheel, Spoked, 17 x 4.25 | Rear Wheel, Spoked, 17 x 4.25 | 1 | $1352.44 | Available to order | 1 |
| 3 | T2010586 Rim, Rear Wheel, Tubeless, 17 x 4.25 | Rim, Rear Wheel, Tubeless, 17 x 4.25 | 1 | $759.84 | Out of Stock | Notify Me |
| 4 | T2000598 Nipple, Spoke, Locking, Slv | Nipple, Spoke, Locking, Slv | 32 | $6.94 | Available to order | 32 |
| 5 | T2010594 Spoke, 220mm | Spoke, 220mm | 16 | $7.37 | Available to order | 16 |
| 6 | T2010595 Spoke, 232.4mm | Spoke, 232.4mm | 16 | $8.07 | Backorder — Mid August 2026 | 16 |
| 7 | T3800096 Bearing Ball, 20 47 14 | Bearing Ball, 20 47 14 | 2 | $35.08 | Available to order | 2 |
| 8 | T3500012 Circlip, Int Dia 47 | Circlip, Int Dia 47 | 1 | $3.90 | Available to order | 1 |
| 9 | T3600046 Oil Seal, 28 47 7 | Oil Seal, 28 47 7 | 1 | $18.91 | Available to order | 1 |
| 10 | T2011042 Spacer, Internal, Wheel | Spacer, Internal, Wheel | 1 | $32.03 | Available to order | 1 |
| 11 | T2000613 Valve Assembly | Valve Assembly | 1 | $5.69 | Available to order | 1 |
| 12 | T2010314 Rubber, Cush Drive | Rubber, Cush Drive | 1 | $136.88 | Available to order | 1 |
| 13 | T2010492 Spacer, Stepped | Spacer, Stepped | 1 | $19.37 | Available to order | 1 |
| 14 | T2010606 Sprocket Carrier Assy, Black | Sprocket Carrier Assy, Black | 1 | $378.49 | Available to order | 1 |
| 15 | T2012144 Stud, Sprocket Carrier | Stud, Sprocket Carrier | 6 | $7.62 | Available to order | 6 |
| 16 | T2010630 Bearing, Ring | Bearing, Ring | 1 | $54.20 | Available to order | 1 |
| 17 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 18 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 19 | T3600073 Oil Seal, 35 52 6 | Oil Seal, 35 52 6 | 1 | $21.86 | Available to order | 1 |
| 20 | T2010665 Sprocket, Rear, 44T, 525, Black | Sprocket, Rear, 44T, 525, Black | 1 | $91.54 | Available to order | 1 |
| 21 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 6 | $4.16 | Available to order | 6 |
| 22 | T2010647 Spacer Tube, 35 x 20 x 12.5 | Spacer Tube, 35 x 20 x 12.5 | 1 | $8.09 | Out of Stock | Notify Me |
| 23 | T2010379 Spacer, Top Hat, 18 Long | Spacer, Top Hat, 18 Long | 1 | $12.38 | Available to order | 1 |
| 24 | T2010520 Rear Wheel Spindle | Rear Wheel Spindle | 1 | $104.56 | Backorder — Early August 2026 | 1 |
| 25 | T2011062 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 26 | T2011052 Adjuster, Rear Wheel | Adjuster, Rear Wheel | 1 | $15.27 | Available to order | 1 |
| 27 | T3555035 Washer, 19 x 34 x 3 | Washer, 19 x 34 x 3 | 1 | $1.27 | Available to order | 1 |
| 28 | T3350118 Locknut, Plain, M18 | Locknut, Plain, M18 | 1 | $11.56 | Backorder — Late July 2026 | 1 |
| 29 | T2011187 Chain, Final Drive, 525V11, 114L | Chain, Final Drive, 525V11, 114L | 1 | $208.24 | Out of Stock | Notify Me |
| 29 | T2010653 Chain, 525, 114 Links, Spares | Chain, 525, 114 Links, Spares | 1 | $267.30 | Backorder — Late July 2026 | 1 |
| 29 | T2011462 Soft Link, Chain, Final Drive, 525 | Soft Link, Chain, Final Drive, 525 | 1 | $16.43 | Available to order | 1 |
| 30 | T2006688 Wheel Weight, 5 Gram, Black | Wheel Weight, 5 Gram, Black | — | $11.01 | Available to order | 1 |
| 31 | T2011336 Chain & Sprocket Kit | Chain & Sprocket Kit | 1 | $342.45 | Available to order | 1 |
