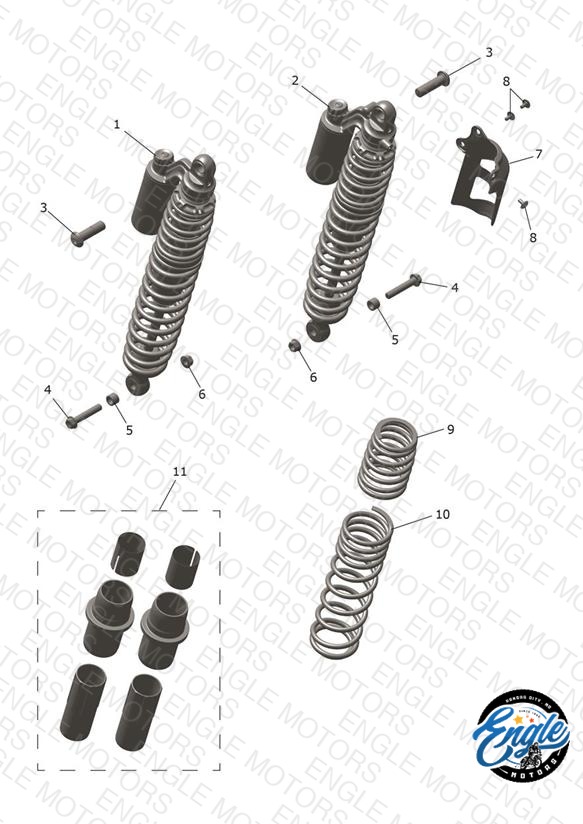

Triumph Scrambler 1200 Rear Suspension Unit — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2054141 Rear Suspension Unit, RH	Rear Suspension Unit, RH	1	$1191.83	Backorder — Late July 2026	1
2	T2056969 Rear Suspension Unit, LH	Rear Suspension Unit, LH	1	$1191.83	Available to order	1 Ships within 3–7 business days
3	T3331580 Bolt, Skt/Hd, M14 x 50, Shld	Bolt, Skt/Hd, M14 x 50, Shld	2	$11.58	Available to order	2 Ships within 3–7 business days
4	T3205766 Bolt, HHF, Lghtd, M10 x 55, Slv	Bolt, HHF, Lghtd, M10 x 55, Slv	2	$6.14	Backorder — Mid August 2026	2
5	T2051221 Sleeve, Aluminium	Sleeve, Aluminium	2	$14.89	Out of Stock	Notify Me
6	T3350250 Locknut, Flanged, M10	Locknut, Flanged, M10	2	$4.16	Available to order	2 Ships within 3–7 business days
7	T2051214 Moulding, RSU Shroud	Moulding, RSU Shroud	1	$73.17	Backorder — Early August 2026	1
8	T3331061 Bolt, But/Hd, M5 x 11, Shld, Slv	Bolt, But/Hd, M5 x 11, Shld, Slv	3	$5.02	Available to order	3 Ships within 3–7 business days
9	T2050692 Spring, RSU, Upper	Spring, RSU, Upper	2	$193.93	Out of Stock	Notify Me
10	T2051455 Spring, RSU, Lower	Spring, RSU, Lower	2	$216.72	Available to order	2 Ships within 3–7 business days
11	T2051058 Kit, Support Sleeves	Kit, Support Sleeves	1	$57.03	Available to order	1 Ships within 3–7 business days
12	T2048753 Decal, Fork Leg	Decal, Fork Leg Spares component of Items 1 & 2 - Not illustrated	2	$36.99	Available to order	2 Ships within 3–7 business days
13	T2059093 Bearing	Bearing Spares component of Items 1 & 2 - Not illustrated	2	$63.57	Out of Stock	Notify Me
14	T2059095 Bush, Metalastic	Bush, Metalastic Spares component of Items 1 & 2 - Not illustrated	2	$61.28	Out of Stock	Notify Me
15	T2059096 Bump Stop	Bump Stop Spares component of Items 1 & 2 - Not illustrated	2	$18.38	Out of Stock	Notify Me
16	T2059097 Seal, Top Bearing	Seal, Top Bearing Spares component of Items 1 & 2 - Not illustrated	2	$81.73	Out of Stock	Notify Me
17	T2059098 Spring Set	Spring Set Spares component of Items 1 & 2 - Not illustrated	2	$317.88	Out of Stock	Notify Me
18	T2059099 Preload Adjuster	Preload Adjuster Spares component of Items 1 & 2 - Not illustrated	2	$337.12	Out of Stock	Notify Me
19	T2059102 Sliding Sleeve Set	Sliding Sleeve Set Spares component of Items 1 & 2 - Not illustrated	2	$98.06	Out of Stock	Notify Me
