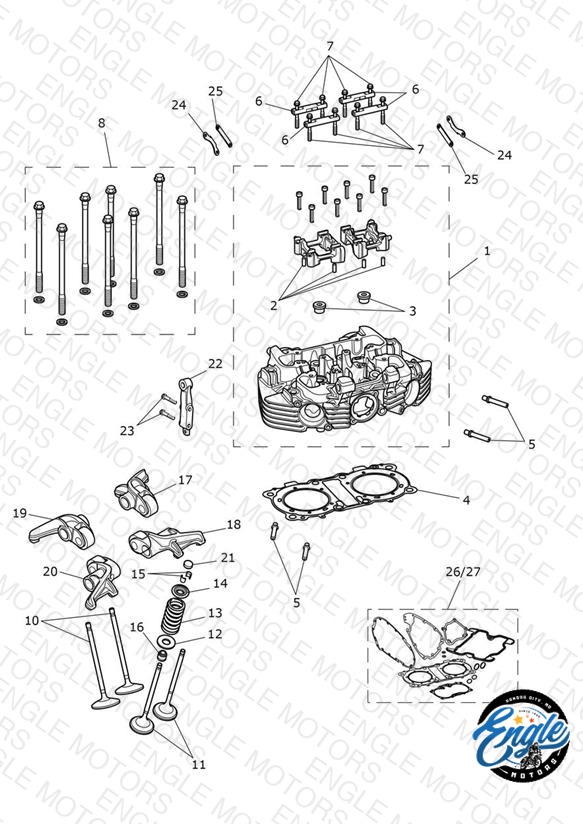

Cylinder Head & Valves
Parts (82)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1156065 Cylinder Head, 2 Cyl, M/C, 97.6 | Cylinder Head, 2 Cyl, M/C, 97.6 | 1 | $1809.64 | Available to order | 1 |
| 2 | T3000005 Dowel, Dia 6 x 16.5 | Dowel, Dia 6 x 16.5 | 4 | $1.13 | Available to order | 4 |
| 3 | T3456666 Plug, Flgd, M18 x 1.5, Slv, Enc | Plug, Flgd, M18 x 1.5, Slv, Enc | 2 | $7.80 | Available to order | 2 |
| 4 | T1156029 Gasket, Cylinder Head, 97.6 | Gasket, Cylinder Head, 97.6 | 1 | $99.47 | Available to order | 1 |
| 5 | T3100016 Stud, Shouldered, M8 x 55, Slv, Enc | Stud, Shouldered, M8 x 55, Slv, Enc | 4 | $3.24 | Backorder — Late August 2026 | 4 |
| 6 | T1156025 Shaft, Rocker | Shaft, Rocker | 4 | $24.05 | Available to order | 4 |
| 7 | T3205093 Bolt, HHF, Lghtd, M6 x 50, Slv | Bolt, HHF, Lghtd, M6 x 50, Slv | 8 | $6.73 | Available to order | 8 |
| 8 | T1151120 Kit, Cyl Head Bolts & Washers | Kit, Cyl Head Bolts & Washers | 1 | $94.11 | Available to order | 1 |
| 9 | T1151111 Bolt, Cylinder Head, M11 x 183 | Bolt, Cylinder Head, M11 x 183 | 8 | $8.33 | Out of Stock | Notify Me |
| 10 | T1136024 Inlet Valve | Inlet Valve | 4 | $90.10 | Backorder — Early August 2026 | 4 |
| 11 | T1136025 Exhaust Valve | Exhaust Valve | 4 | $80.81 | Backorder — Early August 2026 | 4 |
| 12 | T1136010 Platform, Spring, Valve | Platform, Spring, Valve | 8 | $5.78 | Unavailable | View Details |
| 13 | T1136006 Spring Valve | Spring Valve | 8 | $21.97 | Available to order | 8 |
| 14 | T1136001 Retainer, Spring Valve | Retainer, Spring Valve | 8 | $1.51 | Backorder — Late August 2026 | 8 |
| 15 | T1130705 Collet | Collet | 16 | $1.62 | Available to order | 16 |
| 16 | T1130710 Oil Seal, Valve Stem, 5mm | Oil Seal, Valve Stem, 5mm | 8 | $10.66 | Available to order | 8 |
| 17 | T1136030 Rocker Assy, Cyl 1, Inlet | Rocker Assy, Cyl 1, Inlet | 1 | $98.85 | Available to order | 1 |
| 18 | T1136031 Rocker Assy, Cyl 1, Exhaust | Rocker Assy, Cyl 1, Exhaust | 1 | $89.35 | Out of Stock | Notify Me |
| 19 | T1136032 Rocker Assy, Cyl 2, Inlet | Rocker Assy, Cyl 2, Inlet | 1 | $98.85 | Available to order | 1 |
| 20 | T1136033 Rocker Assy, Cyl 2, Exhaust | Rocker Assy, Cyl 2, Exhaust | 1 | $89.35 | Out of Stock | Notify Me |
| 21 | T1131011 Shim, Dia 9.5, 1.725 mm | Shim, Dia 9.5, 1.725 mm | — | $11.41 | Available to order | 1 |
| 21 | T1131012 Shim, Dia 9.5, 1.750 mm | Shim, Dia 9.5, 1.750 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131013 Shim, Dia 9.5, 1.775 mm | Shim, Dia 9.5, 1.775 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131014 Shim, Dia 9.5, 1.800 mm | Shim, Dia 9.5, 1.800 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131015 Shim, Dia 9.5, 1.825 mm | Shim, Dia 9.5, 1.825 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131016 Shim, Dia 9.5, 1.850 mm | Shim, Dia 9.5, 1.850 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131017 Shim, Dia 9.5, 1.875 mm | Shim, Dia 9.5, 1.875 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131018 Shim, Dia 9.5, 1.900 mm | Shim, Dia 9.5, 1.900 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131019 Shim, Dia 9.5, 1.925 mm | Shim, Dia 9.5, 1.925 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131020 Shim, Dia 9.5, 1.950 mm | Shim, Dia 9.5, 1.950 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131021 Shim, Dia 9.5, 1.975 mm | Shim, Dia 9.5, 1.975 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131022 Shim, Dia 9.5, 2.000 mm | Shim, Dia 9.5, 2.000 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131023 Shim, Dia 9.5, 2.025 mm | Shim, Dia 9.5, 2.025 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131024 Shim, Dia 9.5, 2.050 mm | Shim, Dia 9.5, 2.050 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131025 Shim, Dia 9.5, 2.075 mm | Shim, Dia 9.5, 2.075 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131026 Shim, Dia 9.5, 2.100 mm | Shim, Dia 9.5, 2.100 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131027 Shim, Dia 9.5, 2.125 mm | Shim, Dia 9.5, 2.125 mm | — | $5.69 | Backorder — Late July 2026 | 1 |
| 21 | T1131028 Shim, Dia 9.5, 2.150 mm | Shim, Dia 9.5, 2.150 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131029 Shim, Dia 9.5, 2.175 mm | Shim, Dia 9.5, 2.175 mm | — | $9.10 | Backorder — Late July 2026 | 1 |
| 21 | T1131030 Shim, Dia 9.5, 2.200 mm | Shim, Dia 9.5, 2.200 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131031 Shim, Dia 9.5, 2.225 mm | Shim, Dia 9.5, 2.225 mm | — | $9.10 | Backorder — Late July 2026 | 1 |
| 21 | T1131032 Shim, Dia 9.5, 2.250 mm | Shim, Dia 9.5, 2.250 mm | — | $9.10 | Out of Stock | Notify Me |
| 21 | T1131033 Shim, Dia 9.5, 2.275 mm | Shim, Dia 9.5, 2.275 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131034 Shim, Dia 9.5, 2.300 mm | Shim, Dia 9.5, 2.300 mm | — | $9.10 | Out of Stock | Notify Me |
| 21 | T1131035 Shim, Dia 9.5, 2.325 mm | Shim, Dia 9.5, 2.325 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131036 Shim, Dia 9.5, 2.350 mm | Shim, Dia 9.5, 2.350 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131037 Shim, Dia 9.5, 2.375 mm | Shim, Dia 9.5, 2.375 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131038 Shim, Dia 9.5, 2.400 mm | Shim, Dia 9.5, 2.400 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131039 Shim, Dia 9.5, 2.425 mm | Shim, Dia 9.5, 2.425 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131040 Shim, Dia 9.5, 2.450 mm | Shim, Dia 9.5, 2.450 mm | — | $9.10 | Backorder — Early August 2026 | 1 |
| 21 | T1131041 Shim, Dia 9.5, 2.475 mm | Shim, Dia 9.5, 2.475 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131042 Shim, Dia 9.5, 2.500 mm | Shim, Dia 9.5, 2.500 mm | — | $11.41 | Backorder — Mid August 2026 | 1 |
| 21 | T1131043 Shim, Dia 9.5, 2.525 mm | Shim, Dia 9.5, 2.525 mm | — | $11.41 | Available to order | 1 |
| 21 | T1131044 Shim, Dia 9.5, 2.550 mm | Shim, Dia 9.5, 2.550 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131045 Shim, Dia 9.5, 2.575 mm | Shim, Dia 9.5, 2.575 mm | — | $11.41 | Available to order | 1 |
| 21 | T1131046 Shim, Dia 9.5, 2.600 mm | Shim, Dia 9.5, 2.600 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131047 Shim, Dia 9.5, 2.625 mm | Shim, Dia 9.5, 2.625 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131048 Shim, Dia 9.5, 2.650 mm | Shim, Dia 9.5, 2.650 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131049 Shim, Dia 9.5, 2.675 mm | Shim, Dia 9.5, 2.675 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131050 Shim, Dia 9.5, 2.700 mm | Shim, Dia 9.5, 2.700 mm | — | $9.10 | Out of Stock | Notify Me |
| 21 | T1131051 Shim, Dia 9.5, 2.725 mm | Shim, Dia 9.5, 2.725 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131052 Shim, Dia 9.5, 2.750 mm | Shim, Dia 9.5, 2.750 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131053 Shim, Dia 9.5, 2.775 mm | Shim, Dia 9.5, 2.775 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131054 Shim, Dia 9.5, 2.800 mm | Shim, Dia 9.5, 2.800 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131055 Shim, Dia 9.5, 2.825 mm | Shim, Dia 9.5, 2.825 mm | — | $11.41 | Available to order | 1 |
| 21 | T1131056 Shim, Dia 9.5, 2.850 mm | Shim, Dia 9.5, 2.850 mm | — | $11.41 | Available to order | 1 |
| 21 | T1131057 Shim, Dia 9.5, 2.875 mm | Shim, Dia 9.5, 2.875 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131058 Shim, Dia 9.5, 2.900 mm | Shim, Dia 9.5, 2.900 mm | — | $5.69 | Out of Stock | Notify Me |
| 21 | T1131059 Shim, Dia 9.5, 2.925 mm | Shim, Dia 9.5, 2.925 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131060 Shim, Dia 9.5, 2.950 mm | Shim, Dia 9.5, 2.950 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131061 Shim, Dia 9.5, 2.975 mm | Shim, Dia 9.5, 2.975 mm | — | $9.10 | Available to order | 1 |
| 21 | T1131062 Shim, Dia 9.5, 3.000 mm | Shim, Dia 9.5, 3.000 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131063 Shim, Dia 9.5, 3.025 mm | Shim, Dia 9.5, 3.025 mm | — | $5.69 | Backorder — Early August 2026 | 1 |
| 21 | T1131064 Shim, Dia 9.5, 3.050 mm | Shim, Dia 9.5, 3.050 mm | — | $5.69 | Available to order | 1 |
| 21 | T1131065 Shim, Dia 9.5, 3.075 mm | Shim, Dia 9.5, 3.075 mm | — | $2.25 | Available to order | 1 |
| 21 | T1131066 Shim, Dia 9.5, 3.100 mm | Shim, Dia 9.5, 3.100 mm | — | $2.25 | Available to order | 1 |
| 22 | T2078590 Cylinder Head Mount, Rear | Cylinder Head Mount, Rear | 1 | $37.38 | Out of Stock | Notify Me |
| 23 | T3205109 Bolt, HHF, Lghtd, M8 x 45, Slv | Bolt, HHF, Lghtd, M8 x 45, Slv | 2 | $5.12 | Available to order | 2 |
| 24 | T1156093 Support, Cam Frame, Outer | Support, Cam Frame, Outer | 2 | $3.35 | Available to order | 2 |
| 25 | T1156094 Support, Cam Frame, Inner | Support, Cam Frame, Inner | 2 | $2.80 | Available to order | 2 |
| 26 | T3990164 Gasket Kit, Full | Gasket Kit, Full | 1 | $598.14 | Available to order | 1 |
| 27 | T3990165 Gasket Kit, Cyl Head | Gasket Kit, Cyl Head | 1 | $398.76 | Out of Stock | Notify Me |
