Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

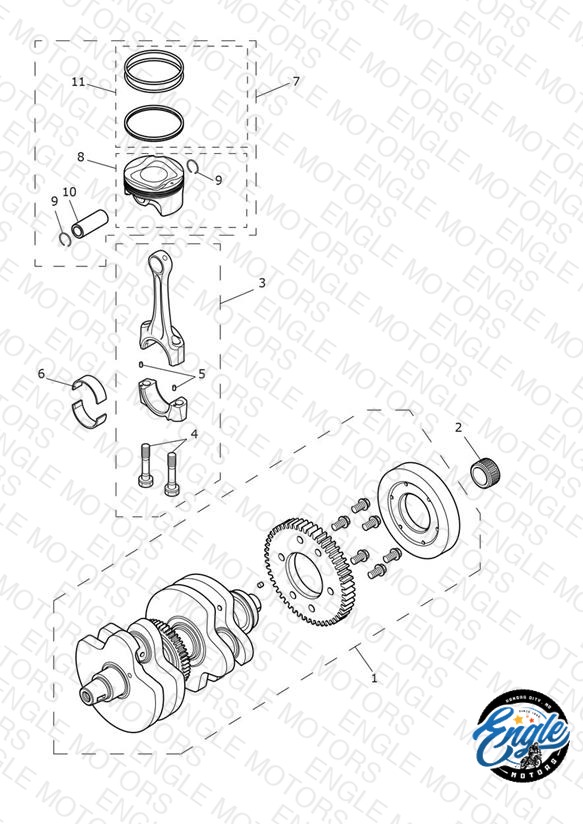

Loading schematic...
Crankshaft, Connecting Rods & Pistons
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100480 Crankshaft Assy, 1200, LW | Crankshaft Assy, 1200, LW | 1 | $1461.15 | Available to order | 1 |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Available to order | 1 |
| 3 | T1110512 Conrod Assy | Conrod Assy | 2 | $214.83 | Out of Stock | Notify Me |
| 4 | T1110301 Conrod Bolt, M8 x 0.75 x 42 | Conrod Bolt, M8 x 0.75 x 42 | 4 | $13.18 | Available to order | 4 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 4 | $2.85 | Available to order | 4 |
| 6 | T1110007 Bearing Shell, Conrod, White | Bearing Shell, Conrod, White | 4 | $19.29 | Available to order | 4 |
| 6 | T1110008 Bearing Shell, Conrod, Red | Bearing Shell, Conrod, Red | 4 | $19.29 | Available to order | 4 |
| 7 | T1126150 Piston Assy, 97.6 | Piston Assy, 97.6 | 2 | $396.28 | Backorder — Late July 2026 | 2 |
| 8 | T1126160 Piston & Circlip Assembly | Piston & Circlip Assembly | 1 | $249.05 | Available to order | 1 |
| 9 | T1127011 Circlip, Piston | Circlip, Piston | 2 | $2.55 | Out of Stock | Notify Me |
| 10 | T1127070 Gudgeon Pin, Nitrided | Gudgeon Pin, Nitrided | 1 | $18.16 | Available to order | 1 |
| 11 | T1126111 Piston Ring Set, 97.6 | Piston Ring Set, 97.6 | 1 | $115.97 | Available to order | 1 |
