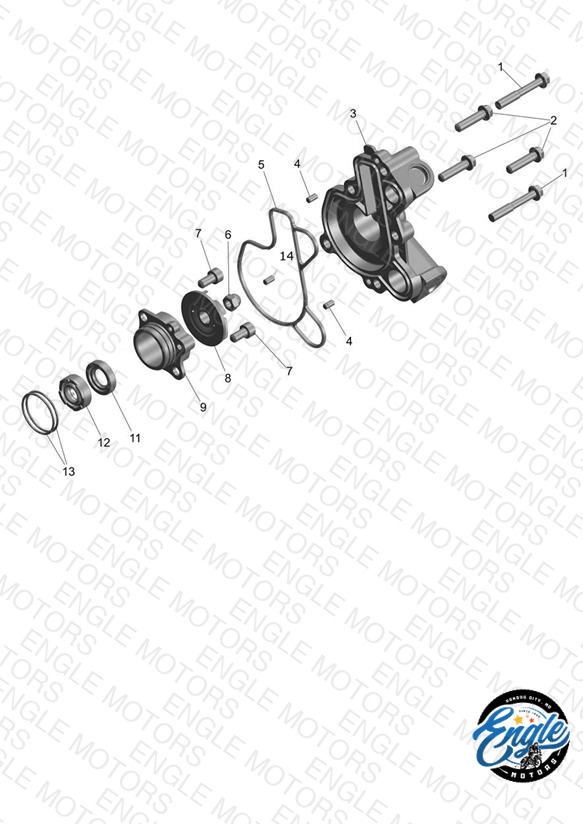

Loading schematic...
Coolant Pump
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | KAED0640 Bolt, Flgd, M6 x 1 | Bolt, Flgd, M6 x 1 | 2 | $0.26 | Available to order | 2 |
| 2 | LAE00090 Bolt, Flanged, M6 x 1 | Bolt, Flanged, M6 x 1 | 3 | $0.57 | Available to order | 3 |
| 3 | TA601000 Water Pump Cover | Water Pump Cover | 1 | $38.23 | Available to order | 1 |
| 4 | 39260607 Pin Dowel Dia 4 | Pin Dowel Dia 4 | 2 | $0.31 | Available to order | 2 |
| 5 | TA601001 O Ring, Water Pump Cover | O Ring, Water Pump Cover | 1 | $6.90 | Available to order | 1 |
| 6 | JG601005 Cap Nut Domed, M6 x 1 | Cap Nut Domed, M6 x 1 | 1 | $0.57 | Available to order | 1 |
| 7 | KACF0612 Bolt, Socket, M6 x 1 | Bolt, Socket, M6 x 1 | 2 | $0.34 | Available to order | 2 |
| 8 | TA601002 Rotor Pump Water | Rotor Pump Water | 1 | $7.03 | Available to order | 1 |
| 9 | TA541036 Housing Seal | Housing Seal | 1 | $11.22 | Available to order | 1 |
| 11 | JG601007 Oil Seal | Oil Seal | 1 | $9.16 | Available to order | 1 |
| 12 | JL601010 Water Seal, Double Lip | Water Seal, Double Lip | 1 | $9.16 | Available to order | 1 |
| 13 | LJA00031 O Ring | O Ring | 2 | $1.19 | Available to order | 2 |
| 14 | KHDA0306 Pin Dowel | Pin Dowel | 1 | $0.46 | Available to order | 1 |
