Triumph Speed 400 Footrests — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

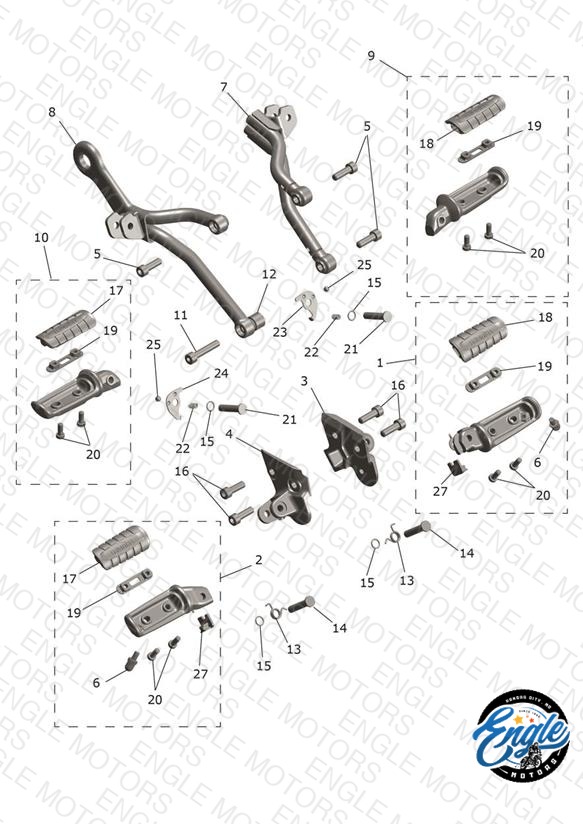

#	Part Number	Description	Qty	Price	Status
1	36TA0107 Rider Step Assy, LH	Rider Step Assy, LH	1	$27.45	Out of Stock	Notify Me
2	36TA0108 Rider Step Assy, RH	Rider Step Assy, RH	1	$27.45	Available to order	1 Ships within 3–7 business days
3	TA113013 Holder Step, Rider, LH	Holder Step, Rider, LH	1	$133.86	Out of Stock	Notify Me
4	TA113014 Holder Step, Rider, RH	Holder Step, Rider, RH	1	$133.86	Available to order	1 Ships within 3–7 business days
5	LAC00234 Bolt, Socket, M8 x 1.25	Bolt, Socket, M8 x 1.25	3	$1.10	Available to order	3 Ships within 3–7 business days
6	JL113035 Bolt, M6 x 1	Bolt, M6 x 1	2	$1.93	Available to order	2 Ships within 3–7 business days
7	TA113006 Holder, Pillion, LH	Holder, Pillion, LH	1	$44.63	Out of Stock	Notify Me
8	TA113010 Holder, Pillion, RH	Holder, Pillion, RH	1	$44.63	Available to order	1 Ships within 3–7 business days
9	36TA0109 Step Assy, Pillion, LH	Step Assy, Pillion, LH	1	$23.82	Available to order	1 Ships within 3–7 business days
10	36TA0110 Step Assy, Pillion, RH	Step Assy, Pillion, RH	1	$23.82	Available to order	1 Ships within 3–7 business days
11	LAC00233 Bolt, Socket, M8 x 1.25	Bolt, Socket, M8 x 1.25	1	$1.51	Available to order	1 Ships within 3–7 business days
12	TA113061 Spacer	Spacer	1	$1.93	Available to order	1 Ships within 3–7 business days
13	JP113035 Torsion Spring	Torsion Spring	2	$1.01	Out of Stock	Notify Me
14	JP113019 Pivot Pin, Footrest, Black	Pivot Pin, Footrest, Black	2	$2.95	Available to order	2 Ships within 3–7 business days
15	30141031 O Ring	O Ring	4	$0.17	Available to order	4 Ships within 3–7 business days
16	LBU00212 Screw, Btn Hd, M8 x 1.25	Screw, Btn Hd, M8 x 1.25	4	$1.36	Available to order	4 Ships within 3–7 business days
17	TA113012 Damper Step, RH	Damper Step, RH	2	$4.60	Available to order	2 Ships within 3–7 business days
18	TA113008 Damper Step, LH	Damper Step, LH	2	$4.60	Available to order	2 Ships within 3–7 business days
19	TA113019 Plate, Step, Pillion	Plate, Step, Pillion	4	$2.95	Available to order	4 Ships within 3–7 business days
20	LAC00010 Bolt	Bolt	8	$1.01	Available to order	8 Ships within 3–7 business days
21	DD161381 Clevis Pin	Clevis Pin	2	$0.66	Available to order	2 Ships within 3–7 business days
22	GF161143 Compression Spring	Compression Spring	2	$0.10	Available to order	2 Ships within 3–7 business days
23	TA113021 Lock Plate, LH	Lock Plate, LH	1	$2.19	Available to order	1 Ships within 3–7 business days
24	TA113033 Lock Plate, RH	Lock Plate, RH	1	$4.86	Available to order	1 Ships within 3–7 business days
25	KMAA0800 Ball, Steel	Ball, Steel	2	$0.10	Available to order	2 Ships within 3–7 business days
27	TA113032 Stopper Step	Stopper Step	2	$3.29	Available to order	2 Ships within 3–7 business days
28	KDBA0818 Washer, Plain	Washer, Plain Part Not Illustrated	4	$0.10	Available to order	4 Ships within 3–7 business days
29	TA113030 Heelguard, LH	Heelguard, LH Part Not Illustrated	1	$33.42	Available to order	1 Ships within 3–7 business days
30	TA113031 Heelguard, RH	Heelguard, RH Part Not Illustrated	1	$33.42	Available to order	1 Ships within 3–7 business days
31	LBU00218 Screw, Btn Hd, M6 x 1	Screw, Btn Hd, M6 x 1 Part Not Illustrated	4	$0.56	Available to order	4 Ships within 3–7 business days
32	TA111151 Collar	Collar Part Not Illustrated	2	$1.63	Available to order	2 Ships within 3–7 business days
33	TA111152 Collar	Collar Part Not Illustrated	2	$1.91	Available to order	2 Ships within 3–7 business days
34	KHAA2015 Pin Cotter	Pin Cotter Part Not Illustrated	4	$0.10	Available to order	4 Ships within 3–7 business days
