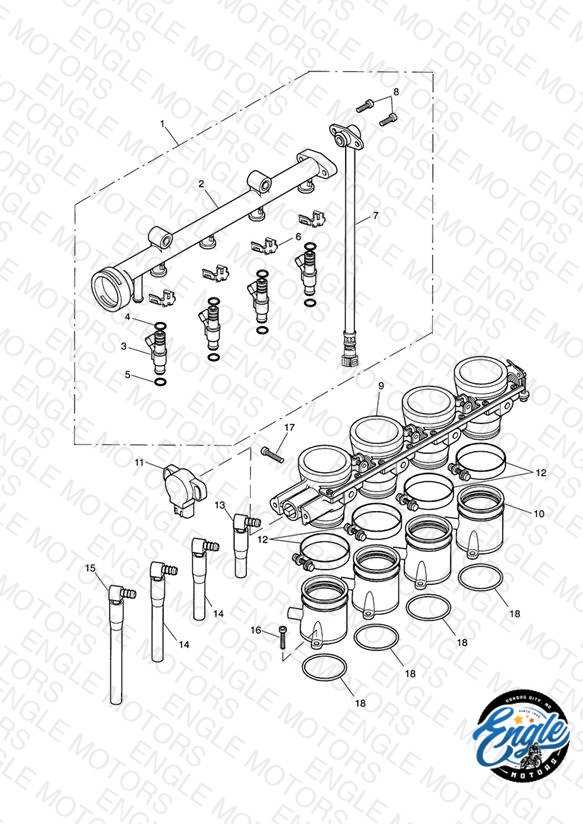

Throttles/Injectors and Fuel Rail Vin 211243 >
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240951 Fuel Rail Assembly | Fuel Rail Assembly | 1 | $1177.93 | Obsolete | View Details |
| 2 | T1240952 Fuel Rail Plastic, Returnless | Fuel Rail Plastic, Returnless | 1 | $235.74 | Out of Stock | Notify Me |
| 3 | T1240890 Fuel injector | Fuel injector | 4 | $197.09 | Obsolete | View Details |
| 4 | T1245016 O Ring, Injector, Upper | O Ring, Injector, Upper | 4 | $5.24 | Available to order | 4 |
| 5 | T1240355 Lower O Ring, Injector | Lower O Ring, Injector | 4 | $2.95 | Available to order | 4 |
| 6 | T1240821 Clip, Fuel Injector | Clip, Fuel Injector | 4 | $2.06 | Obsolete | View Details |
| 7 | T1240953 Fuel Hose, Flow, Assembly | Fuel Hose, Flow, Assembly | 1 | $101.69 | Obsolete | View Details |
| 8 | T1240816 Screw, Self Cutting | Screw, Self Cutting ** Part No Longer Available ** | 2 | $2.62 | Obsolete | View Details |
| 9 | T1240752 Throttle Body Assy, 4 Cyl | Throttle Body Assy, 4 Cyl | 1 | $2756.43 | Obsolete | View Details |
| 10 | T1240774 Rubber, Throttle Body To Cyl HD | Rubber, Throttle Body To Cyl HD | 4 | $25.96 | Available to order | 4 |
| 11 | T1290515 Sensor, Throttle Position | Sensor, Throttle Position | 1 | $176.81 | Available to order | 1 |
| 12 | T3700073 Clip, Throttle Body to Rubber | Clip, Throttle Body to Rubber | 4 | $12.04 | Available to order | 4 |
| 13 | T1242515 Pipe, Air Bypass, 170mm | Pipe, Air Bypass, 170mm | 1 | $24.51 | Available to order | 1 |
| 14 | T1242516 Pipe, Air Bypass, 240mm | Pipe, Air Bypass, 240mm | 2 | $24.51 | Available to order | 2 |
| 15 | T1242514 Pipe, Air Bypass, 300mm | Pipe, Air Bypass, 300mm | 1 | $24.51 | Available to order | 1 |
| 16 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 8 | $2.63 | Available to order | 8 |
| 17 | T3330154 Screw, Torx, PH, M6 x 30 | Screw, Torx, PH, M6 x 30 | 2 | $2.90 | Obsolete | View Details |
| 18 | T3600064 O ring | O ring | 4 | $8.33 | Obsolete | View Details |
