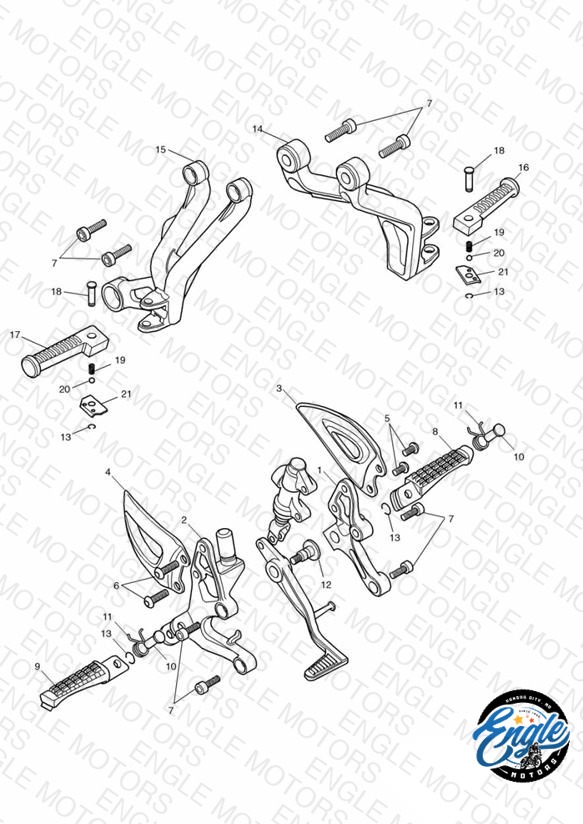

Loading schematic...
Footrests & Mountings 186151 »
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080543 Control Plate, LH | Control Plate, LH | 1 | $82.63 | Obsolete | View Details |
| 2 | T2080893 Control Plate, RH | Control Plate, RH | 1 | $117.87 | Available to order | 1 |
| 3 | T2080524 Heelguard | Heelguard | 1 | $37.00 | Obsolete | View Details |
| 4 | T2080544 Heelguard | Heelguard | 1 | $18.23 | Obsolete | View Details |
| 5 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 2 | $1.72 | Available to order | 2 |
| 6 | T3335012 Screw, But/Hd, Skt, M8 x 25 | Screw, But/Hd, Skt, M8 x 25 | 2 | $8.33 | Available to order | 2 |
| 7 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 8 | $7.42 | Available to order | 8 |
| 8 | T2080850 Footrest, Front, Lh | Footrest, Front, Lh | 1 | $56.07 | Available to order | 1 |
| 9 | T2080860 Footrest, Front, Rh | Footrest, Front, Rh | 1 | $56.07 | Available to order | 1 |
| 10 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 2 | $6.55 | Available to order | 2 |
| 11 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 12 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 13 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 14 | T2080558 Footrest hanger rear lh | Footrest hanger rear lh LH | 1 | $128.36 | Obsolete | View Details |
| 15 | T2080557 Footrest hanger | Footrest hanger RH | 1 | $153.49 | Obsolete | View Details |
| 16 | T2080875 Rear Footrest, LH | Rear Footrest, LH | 1 | $50.59 | Obsolete | View Details |
| 17 | T2080885 Footrest, Rear, Rh | Footrest, Rear, Rh | 1 | $56.07 | Available to order | 1 |
| 18 | T2080547 Pivot pin | Pivot pin Rear footrest | 2 | $6.55 | Available to order | 2 |
| 19 | T2080569 Return spring | Return spring | 2 | $1.13 | Out of Stock | Notify Me |
| 20 | T2080563 Ball bearing | Ball bearing | 2 | $1.18 | Obsolete | View Details |
| 21 | T2080567 Detent plate | Detent plate PART NO LONGER AVAILABLE | 2 | $3.78 | Obsolete | View Details |
