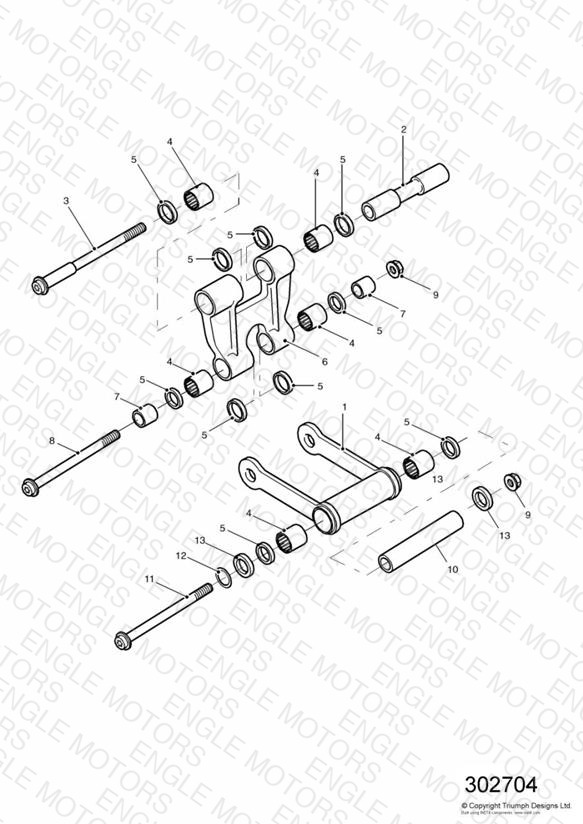

Rear Suspension Linkage
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2057315 Drag Link Assy | Drag Link Assy | 1 | $64.62 | Out of Stock | Notify Me |
| 2 | T2057320 Sleeve | Sleeve | 1 | $94.11 | Available to order | 1 |
| 3 | T3332121 Bolt, Tx, M10 x 1.25 x 156 | Bolt, Tx, M10 x 1.25 x 156 | 1 | $31.64 | Available to order | 1 |
| 4 | T3800060 Bearing, Needle Roller, 202620 | Bearing, Needle Roller, 202620 | 1 | $37.15 | Available to order | 1 |
| 5 | T3600040 Seal | Seal | 1 | $6.94 | Available to order | 1 |
| 6 | T2051011 Drop Link | Drop Link | 1 | $157.79 | Available to order | 1 |
| 7 | T2057354 Sleeve, Linkage, Dia 20.0 x 30.5 | Sleeve, Linkage, Dia 20.0 x 30.5 | 1 | $10.71 | Available to order | 1 |
| 8 | T3050406 Bolt, Tx, M12 x 110, Slv | Bolt, Tx, M12 x 110, Slv | 1 | $14.23 | Available to order | 1 |
| 9 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 M12 | 1 | $6.07 | Available to order | 1 |
| 10 | T2057348 Sleeve, Dia 20.0 x 118.0 | Sleeve, Dia 20.0 x 118.0 | 1 | $40.22 | Available to order | 1 |
| 11 | T3330278 Screw, Torx M12 x 155 | Screw, Torx M12 x 155 | 1 | $9.83 | Obsolete | View Details |
| 12 | T3550614 Washer, 12 x 23 x 2 | Washer, 12 x 23 x 2 | 1 | $0.97 | Available to order | 1 |
| 13 | T3550615 Washer, Thrust, 12 x 32 x 1 | Washer, Thrust, 12 x 32 x 1 | 2 | $5.01 | Backorder — Early August 2026 | 2 |
