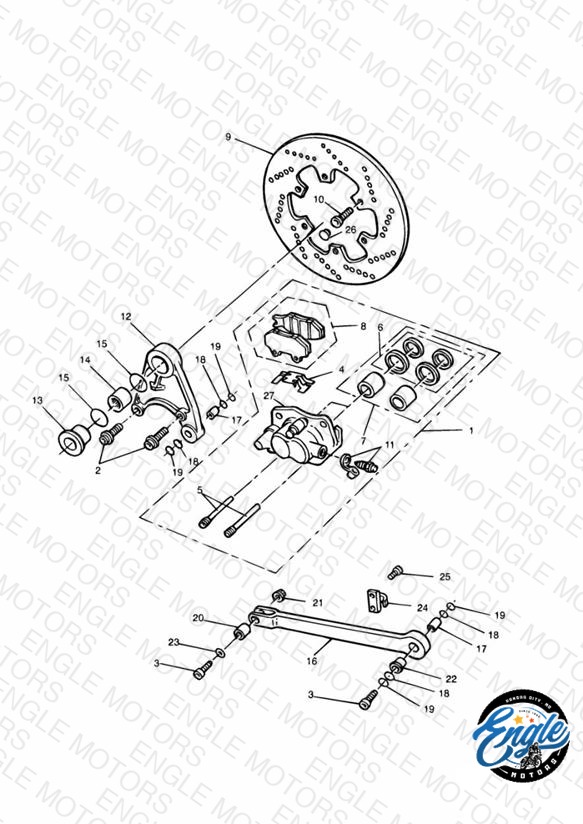

Rear Brake Disc and Caliper
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2020900 Caliper Assembly, Rear | Caliper Assembly, Rear » 29155 | 1 | $748.17 | Out of Stock | Notify Me |
| 1 | T2020901 Caliper assembly | Caliper assembly 29156 » Gold | 1 | $645.12 | Obsolete | View Details |
| 2 | 3330100-T0301 Bolt Torx | Bolt Torx M10 x 28.5mm | 2 | $3.87 | Obsolete | View Details |
| 3 | 3050050-T0301 Capscrew | Capscrew M8 x 45mm | 2 | $1.37 | Obsolete | View Details |
| 4 | T2020954 Pad Spring Set | Pad Spring Set | 1 | $8.53 | Available to order | 1 |
| 5 | T2020966 Pad Pin Set (2 Pins) | Pad Pin Set (2 Pins) | 2 | $15.95 | Available to order | 2 |
| 6 | T2020505 Seal Kit, 2 Piston Caliper | Seal Kit, 2 Piston Caliper | 1 | $57.03 | Available to order | 1 |
| 7 | T2020050 Piston Set | Piston Set | 1 | $119.76 | Available to order | 1 |
| 8 | T2020560 Brake Pad Set, x 2 Pads | Brake Pad Set, x 2 Pads | 1 | $66.40 | Available to order | 1 |
| 9 | T2020370 Brake disc | Brake disc » 29155 | 1 | $251.26 | Available to order | 1 |
| 9 | T2020985 Brake disc | Brake disc 29156 » Gold * PART NO LONGER AVAILABLE * | 1 | $217.95 | Obsolete | View Details |
| 10 | T2024801 Bolt, Disc, M8 x 30, Slv, Enc | Bolt, Disc, M8 x 30, Slv, Enc | 6 | $1.90 | Available to order | 6 |
| 11 | T2020014 Bleed Screw | Bleed Screw | 1 | $15.27 | Available to order | 1 |
| 12 | T2020927 Brake carrier | Brake carrier Silver | 1 | $36.33 | Backorder — Late July 2026 | 1 |
| 12 | T2020925 Brake carrier | Brake carrier Black | 1 | $153.08 | Obsolete | View Details |
| 13 | 2020905-T0301 Sleeve | Sleeve | 1 | $9.49 | Out of Stock | Notify Me |
| 14 | 3800030-T0301 Bearing | Bearing * PART NO LONGER AVAILABLE * | 1 | $19.29 | Obsolete | View Details |
| 15 | 3600030-T0301 Seal | Seal | 2 | $4.38 | Obsolete | View Details |
| 16 | T2020355 Torque arm | Torque arm 16922 » Black | 1 | $53.24 | Out of Stock | Notify Me |
| 17 | 3750010-T0301 Bush | Bush * PART NO LONGER AVAILABLE * | 2 | $3.60 | Obsolete | View Details |
| 18 | 3600016-T0301 O ring | O ring | 4 | $3.79 | Obsolete | View Details |
| 19 | 2020064-T0301 Retainer | Retainer | 4 | $0.43 | Obsolete | View Details |
| 20 | 2020046-T0301 Sleeve | Sleeve | 1 | $9.25 | Obsolete | View Details |
| 21 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 M8 | 1 | $2.45 | Available to order | 1 |
| 22 | 2020058-T0301 Sleeve | Sleeve | 1 | $9.25 | Obsolete | View Details |
| 23 | T3550013 Washer | Washer M8 | 1 | $1.13 | Available to order | 1 |
| 24 | 2020090-T0301 Clamp | Clamp | 1 | $1.94 | Obsolete | View Details |
| 25 | T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc | Screw, Pan/Hd, Tx, M5 x 16, Enc | 2 | $0.97 | Available to order | 2 |
| 26 | T3450200 Plug, Caphead, Chrome | Plug, Caphead, Chrome Chrome | 6 | $4.19 | Available to order | 6 |
| 27 | T2025406 Backing plate | Backing plate | 1 | $27.31 | Available to order | 1 |
