Loading schematic...

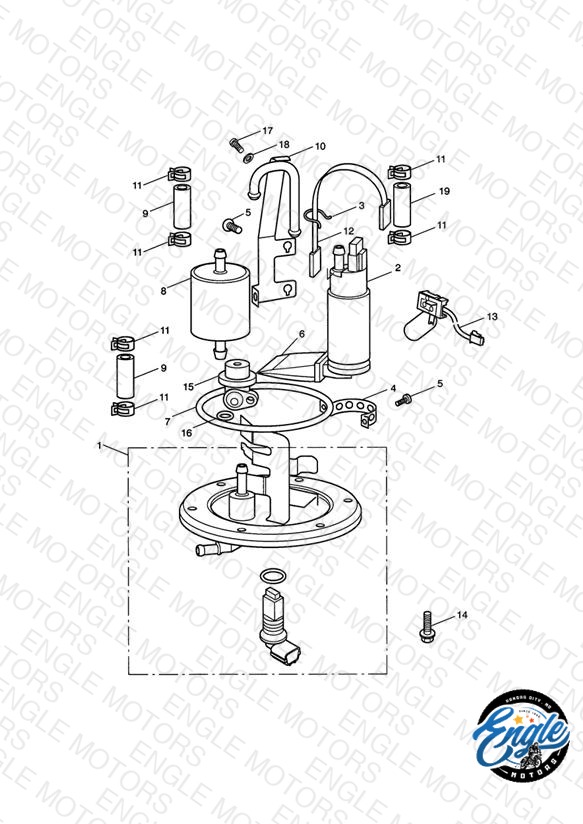

Fuel Pump/Filter >305059 Jet Blk/Neon Blue; >305222 Roulette Green; >305251 Fusion White Bikes
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1241086 Plate, Fuel Pump Assy | Plate, Fuel Pump Assy | 1 | $251.98 | Obsolete | View Details |
| 2 | T1240911 Fuel Pump, EFI | Fuel Pump, EFI | 1 | $264.04 | Available to order | 1 |
| 3 | T3350200 Wire Twist | Wire Twist | 1 | $0.81 | Obsolete | View Details |
| 4 | T1240990 Strap, Retaining, Fuel Pump | Strap, Retaining, Fuel Pump | 1 | $14.58 | Available to order | 1 |
| 5 | T3332130 Bolt, H/HD, M4 x 16, Slv | Bolt, H/HD, M4 x 16, Slv | 2 | $0.57 | Available to order | 2 |
| 6 | T1247557 Cushion, Fuel Pump | Cushion, Fuel Pump | 1 | $9.03 | Available to order | 1 |
| 7 | T3600048 O Ring, 112 ID, Dia 5.3 | O Ring, 112 ID, Dia 5.3 | 1 | $5.39 | Available to order | 1 |
| 8 | T1240850 Fuel Filter | Fuel Filter | 1 | $68.07 | Available to order | 1 |
| 9 | T3620395 Fuel Hose, 45mm | Fuel Hose, 45mm | 2 | $9.88 | Available to order | 2 |
| 10 | T1240996 Pipe, Fuel Pump to Fuel Filter | Pipe, Fuel Pump to Fuel Filter | 1 | $40.77 | Obsolete | View Details |
| 11 | T3700089 Hose Clip, Dia 12.5 | Hose Clip, Dia 12.5 | 6 | $4.01 | Available to order | 6 |
| 12 | T1240847 Fly Lead, Fuel Pump | Fly Lead, Fuel Pump | 1 | $23.95 | Available to order | 1 |
| 13 | T1241084 Fuel Level Sender | Fuel Level Sender PART NO LONGER AVAILABLE | 1 | $115.68 | Obsolete | View Details |
| 14 | T3330891 Bolt, RHHF, M5 x 0.8 x 12, S5041 | Bolt, RHHF, M5 x 0.8 x 12, S5041 | 6 | $3.24 | Available to order | 6 |
| 15 | T1241093 Fuel Pressure Regulator | Fuel Pressure Regulator | 1 | $84.58 | Available to order | 1 |
| 16 | T3600098 O Ring, ID 10 x 2.0 | O Ring, ID 10 x 2.0 | 1 | $1.21 | Available to order | 1 |
| 17 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 18 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 19 | T3620092 Hose, Fuel, 55mm | Hose, Fuel, 55mm | 1 | $7.06 | Obsolete | View Details |
