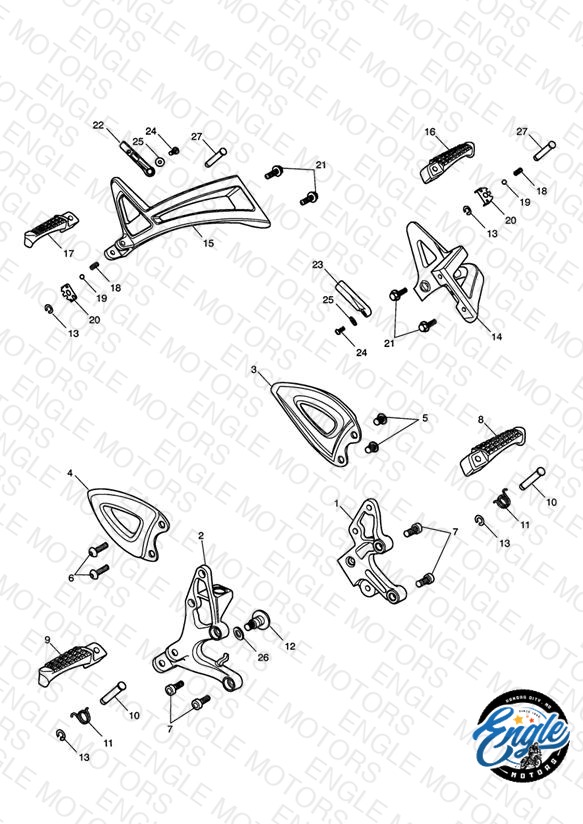

Footrests & Mountings
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2080894 Control Plate, LH | Control Plate, LH | 1 | $96.79 | Obsolete | View Details |
| 2 | T2080893 Control Plate, RH | Control Plate, RH | 1 | $117.87 | Available to order | 1 |
| 3 | T2080698 Heelguard, Lh | Heelguard, Lh > 333178 | 1 | $45.06 | Available to order | 1 |
| 3 | T2082302 Heelguard, LH | Heelguard, LH 333179 > | 1 | $52.29 | Out of Stock | Notify Me |
| 4 | T2080693 Heelguard, Rh | Heelguard, Rh > 333178 | 1 | $47.33 | Available to order | 1 |
| 4 | T2082301 Heelguard, RH | Heelguard, RH 333179 > | 1 | $52.29 | Available to order | 1 |
| 5 | T3331625 Screw, Btn Hd, M8 x 12, Slv | Screw, Btn Hd, M8 x 12, Slv | 2 | $1.72 | Available to order | 2 |
| 6 | T3330371 Screw, Btn HD, M8x25, Ss | Screw, Btn HD, M8x25, Ss | 2 | $6.89 | Obsolete | View Details |
| 7 | T3050321 Screw, Cap/Hd, M8 x 20, Slv | Screw, Cap/Hd, M8 x 20, Slv | 4 | $7.42 | Available to order | 4 |
| 8 | T2080850 Footrest, Front, Lh | Footrest, Front, Lh | 1 | $56.07 | Available to order | 1 |
| 9 | T2080860 Footrest, Front, Rh | Footrest, Front, Rh | 1 | $56.07 | Available to order | 1 |
| 10 | T2080546 Pin, Pivot, Footrest | Pin, Pivot, Footrest | 2 | $6.55 | Available to order | 2 |
| 11 | T2080819 Return Spring, Footrest | Return Spring, Footrest | 2 | $6.29 | Available to order | 2 |
| 12 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 13 | T3500207 Circlip, Ext 8 X 0.89 | Circlip, Ext 8 X 0.89 | 4 | $2.85 | Available to order | 4 |
| 14 | T2080951 Spares Kit, Footrest | Spares Kit, Footrest > 333178 | 1 | $279.80 | Obsolete | View Details |
| 14 | T2080759 Footrest Hangar, LH | Footrest Hangar, LH 333179 > | 1 | $136.88 | Available to order | 1 |
| 15 | T2080758 Footrest Hangar, RH | Footrest Hangar, RH 333179 > | 1 | $136.88 | Available to order | 1 |
| 16 | T2080875 Rear Footrest, LH | Rear Footrest, LH | 1 | $50.59 | Obsolete | View Details |
| 17 | T2080885 Footrest, Rear, Rh | Footrest, Rear, Rh | 1 | $56.07 | Available to order | 1 |
| 18 | T2081674 Spring, Detent | Spring, Detent | 2 | $6.39 | Available to order | 2 |
| 19 | T2081675 Detent Ball | Detent Ball | 2 | $1.91 | Available to order | 2 |
| 20 | T2081672 Detent Plate | Detent Plate | 2 | $5.30 | Available to order | 2 |
| 21 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv | 4 | $1.21 | Available to order | 4 |
| 22 | T3450088 Bump Stop, Rh | Bump Stop, Rh > 333178 | 1 | $5.69 | Available to order | 1 |
| 22 | T3450118 Bum Stop, RH | Bum Stop, RH 333179 > | 1 | $5.69 | Out of Stock | Notify Me |
| 23 | T3450089 Bump Stop, Lh | Bump Stop, Lh > 333178 | 1 | $5.69 | Available to order | 1 |
| 23 | T3450117 Bum Stop, LH | Bum Stop, LH 333179 > | 1 | $5.69 | Available to order | 1 |
| 24 | T3330627 Screw, Pan/HD, TPT, Tx, M5 x 12 | Screw, Pan/HD, TPT, Tx, M5 x 12 | 2 | $0.97 | Available to order | 2 |
| 25 | T3551178 Washer, M5 x 15 x 1.6 | Washer, M5 x 15 x 1.6 | 2 | $0.97 | Available to order | 2 |
| 26 | T3550277 Washer, M8 | Washer, M8 248573 > 281013 | 1 | $1.06 | Available to order | 1 |
| 27 | T2081687 Pin, Pivot, Footrest | Pin, Pivot, Footrest 333179 > | 2 | $5.24 | Available to order | 2 |
