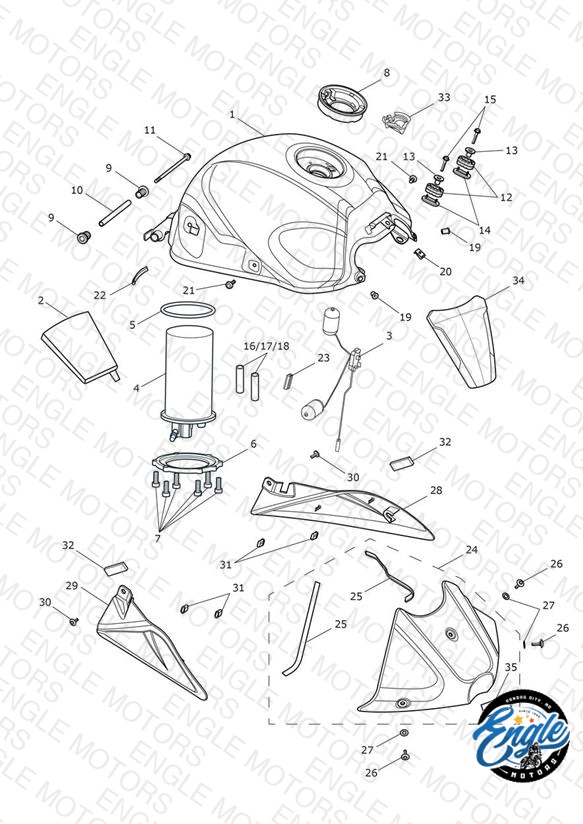

Fuel Tank/Fuel Pump Fittings
Parts (60)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2405101-NW Fuel Tank Assy | Fuel Tank Assy Crystal White > 498697; Includes heat pad, item 2 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405101-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black > 499637; Includes heat pad, item 2 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405101-CW Fuel Tank Assy | Fuel Tank Assy Diablo Red > 499325; Includes heat pad, item 2 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405201-NW Fuel Tank Assy | Fuel Tank Assy Crystal White - 498698 > 602552 ; Includes heat pad, item 2 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405201-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black - 499638 > 602552 ; Includes heat pad, item 2 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405201-CW Fuel Tank Assy | Fuel Tank Assy Diablo Red - 499326 > 549576; Includes heat pad, item 2 | 1 | $1741.80 | Backorder — Late July 2026 | 1 |
| 1 | T2405201-FI Fuel Tank Assy | Fuel Tank Assy Sulphur Yellow; 549577 > 602552 ; Includes heat pad, item 2 | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405201-LS Fuel Tank Assy | Fuel Tank Assy Matt Graphite; ABS Special Edition (13MY) | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405205-NW Fuel Tank Assy | Fuel Tank Assy Crystal White; ABS Special Edition (13MY) | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405206-JZ Fuel Tank Assy | Fuel Tank Assy Matt Caspian; 602553 > 657552 | 1 | $1741.80 | Available to order | 1 |
| 1 | T2405206-NW Fuel Tank Assy | Fuel Tank Assy Crystal White; 602553 > 657552 | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405206-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black; 602553 > 657552 | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405211-CW Fuel Tank Assy | Fuel Tank Assy Diablo Red - 657553 > | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405211-PR Fuel Tank Assy | Fuel Tank Assy Phantom Black - 657553 > | 1 | $1741.80 | Backorder — Late July 2026 | 1 |
| 1 | T2405211-NW Fuel Tank Assy | Fuel Tank Assy Crystal White - 657533 > | 1 | $1741.80 | Out of Stock | Notify Me |
| 1 | T2405211-FA Fuel Tank Assy | Fuel Tank Assy Racing Yellow; Speed 94 | 1 | $1741.80 | Backorder — Late July 2026 | 1 |
| 1 | T2405213-PG Fuel Tank Assy | Fuel Tank Assy Jet Black; Speed 94 | 1 | $1443.21 | Backorder — Late July 2026 | 1 |
| 2 | T2405030 Heat Pad, Fuel Tank, Top | Heat Pad, Fuel Tank, Top > 958758 | 1 | $23.46 | Obsolete | View Details |
| 2 | T2405044 Heat Pad, Fuel Tank, Top | Heat Pad, Fuel Tank, Top 958759 > | 1 | $57.60 | Available to order | 1 |
| 3 | T2401326 Level Sender | Level Sender | 1 | $144.49 | Available to order | 1 |
| 4 | T2403893 Fuel Pump | Fuel Pump | 1 | $510.48 | Available to order | 1 |
| 5 | T2401887 Seal, Fuel Pump Module | Seal, Fuel Pump Module | 1 | $10.25 | Available to order | 1 |
| 6 | T2401250 Location Plate, Fuel Pump | Location Plate, Fuel Pump | 1 | $37.09 | Available to order | 1 |
| 7 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 6 | $5.30 | Available to order | 6 |
| 8 | T2405034 Seal, Fuel Filler Cap | Seal, Fuel Filler Cap | 1 | $8.46 | Available to order | 1 |
| 9 | T2400446 Rubber Bush | Rubber Bush | 2 | $3.24 | Out of Stock | Notify Me |
| 10 | T2404416 Spacer, 10 x 129 x 1.55 | Spacer, 10 x 129 x 1.55 | 1 | $16.93 | Out of Stock | Notify Me |
| 11 | T3204087 Bolt, RHHF, M6 x 147, S/S | Bolt, RHHF, M6 x 147, S/S | 1 | $3.50 | Available to order | 1 |
| 12 | T3020605 Grommet, Castellated, Oval | Grommet, Castellated, Oval | 2 | $4.01 | Available to order | 2 |
| 13 | T3010710 Flanged Sleeve, 6.4 x 9.6 x 13.4 | Flanged Sleeve, 6.4 x 9.6 x 13.4 | 2 | $4.12 | Available to order | 2 |
| 14 | T3550266 Washer, Oval, Tabbed, 1.6mm Thick | Washer, Oval, Tabbed, 1.6mm Thick | 2 | $2.00 | Available to order | 2 |
| 15 | T3200148 Bolt, RHHF, M6 x 30, Slv | Bolt, RHHF, M6 x 30, Slv | 2 | $4.45 | Available to order | 2 |
| 16 | T3620016 Hose, Formed, Drain | Hose, Formed, Drain | 1 | $14.66 | Backorder — Early August 2026 | 1 |
| 17 | T3620017 Hose, Formed, Breather | Hose, Formed, Breather | 1 | $54.20 | Available to order | 1 |
| 18 | T3620018 Hose, Formed, Breather, Evap | Hose, Formed, Breather, Evap | 1 | $16.15 | Out of Stock | Notify Me |
| 19 | T3350050 Wellnut, M5 | Wellnut, M5 | 2 | $6.65 | Available to order | 2 |
| 20 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 1 | $2.48 | Available to order | 1 |
| 21 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 2 | $0.97 | Available to order | 2 |
| 22 | T3660033 Trim, Tank Flange, 120mm | Trim, Tank Flange, 120mm | 1 | $5.30 | Available to order | 1 |
| 23 | T2401240 Clip, Baffle, Plastic | Clip, Baffle, Plastic | 1 | $4.85 | Out of Stock | Notify Me |
| 24 | T2306587-PS Cover Panel, Pntd, Matt Black | Cover Panel, Pntd, Matt Black White bikes > 462437 | 1 | $334.47 | Out of Stock | Notify Me |
| 24 | T2306587-PR Cover Panel, Painted | Cover Panel, Painted Phantom Black | 1 | $334.47 | Available to order | 1 |
| 24 | T2306587-NW Cover Panel, Painted | Cover Panel, Painted Crystal White | 1 | $537.47 | Out of Stock | Notify Me |
| 24 | T2306587-CW Cover Panel, Painted | Cover Panel, Painted Diablo Red > 549576 | 1 | $537.47 | Available to order | 1 |
| 24 | T2306587-FI Cover Panel, Painted | Cover Panel, Painted Sulphur Yellow; 549577 > 602552 | 1 | $537.47 | Out of Stock | Notify Me |
| 24 | T2306584 Cover Panel, Fuel Tank, Carbon, Kit | Cover Panel, Fuel Tank, Carbon, Kit ABS Special Edition (13MY) | 1 | $200.86 | Obsolete | View Details |
| 24 | T2306587-JZ Cover Panel, Painted | Cover Panel, Painted Matt Caspian; 602553 > 657552 | 1 | $537.47 | Out of Stock | Notify Me |
| 24 | T2306652-FA Cover Panel, Painted | Cover Panel, Painted Racing Yellow; Speed 94 - Includes plaque, item 35 | 1 | $537.47 | Out of Stock | Notify Me |
| 24 | T2306652-PG Cover Panel, Painted | Cover Panel, Painted Jet Black; Speed 94 - Includes plaque, item 35 | 1 | $537.47 | Backorder — Late July 2026 | 1 |
| 25 | T2306572 Foam, Tape, Cover Panel | Foam, Tape, Cover Panel | 2 | $5.78 | Available to order | 2 |
| 26 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv | 3 | $2.17 | Available to order | 3 |
| 27 | T3550094 Washer, Nylon, 12.45x14x0.76 | Washer, Nylon, 12.45x14x0.76 | 3 | $1.10 | Available to order | 3 |
| 28 | T2306603 Infill, Fuel Tank, LH | Infill, Fuel Tank, LH | 1 | $16.42 | Available to order | 1 |
| 29 | T2306604 Infill, Fuel Tank, RH | Infill, Fuel Tank, RH | 1 | $16.42 | Available to order | 1 |
| 30 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $0.97 | Available to order | 2 |
| 31 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 6 | $2.63 | Backorder — Late August 2026 | 6 |
| 32 | T3660171 Pad, Rubber, 30 x 10 x 5, thick | Pad, Rubber, 30 x 10 x 5, thick | 2 | $8.09 | Available to order | 2 |
| 33 | T2406548 Moulding, Fuel Filler Baffle | Moulding, Fuel Filler Baffle 519317 > | 1 | $38.31 | Available to order | 1 |
| 34 | T2408600 Tank Pad Rubber | Tank Pad Rubber 602553 > | 1 | $24.89 | Available to order | 1 |
| 35 | T2045061 Plaque, Special Edition, Cover Panel | Plaque, Special Edition, Cover Panel Speed 94 Only | 1 | $96.97 | Backorder — Early August 2026 | 1 |
