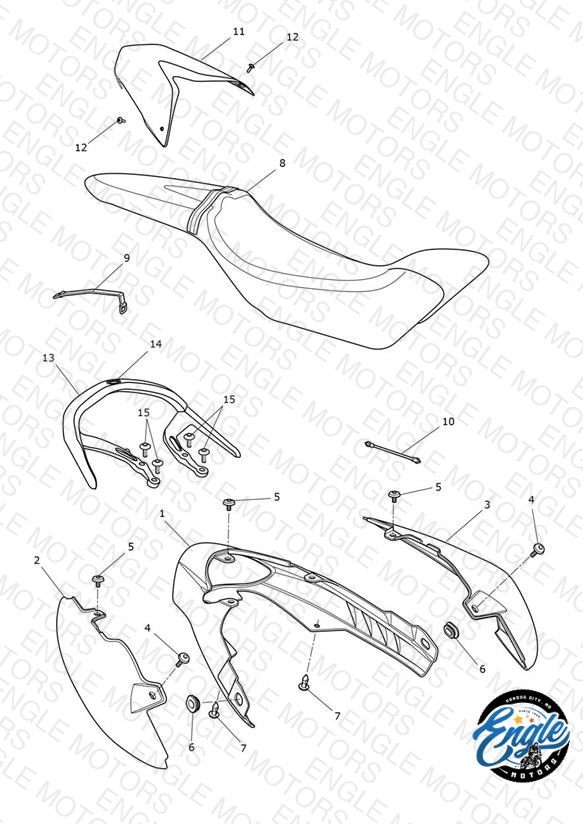

Rear Bodywork & Seat
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2303279 Finisher, Rear Light Moulding | Finisher, Rear Light Moulding All Excpt "IN" | 1 | $133.08 | Available to order | 1 |
| 1 | T2302958 Finisher, Rear Light | Finisher, Rear Light IN Only | 1 | $102.00 | Obsolete | View Details |
| 2 | T2306605-NW Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Crystal White > 579409 | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306605-PR Rear Side Panel, RH | Rear Side Panel, RH Phantom Black > 577674 | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306547-FI Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Sulphur Yellow 549577 > 580012 | 1 | $195.29 | Obsolete | View Details |
| 2 | T2306605-FI Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Sulphur Yellow 580013 > 602552 | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306547-CW Rear Side Panel, RH | Rear Side Panel, RH Diablo Red > 549576 | 1 | $336.75 | Available to order | 1 |
| 2 | T2306605-LS Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Matt Graphite; ABS Special Edition | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306605-JZ Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Matt Caspian; 602553 > 657552 | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306605-CW Rear Side Panel, RH | Rear Side Panel, RH PART NO LONGER AVAILABLE - Diablo Red; 657553 > | 1 | $258.06 | Obsolete | View Details |
| 2 | T2306605-FA Rear Side Panel, RH | Rear Side Panel, RH Racing Yellow - Speed 94 | 1 | $336.75 | Backorder — Late July 2026 | 1 |
| 2 | T2306605-PG Rear Side Panel, RH | Rear Side Panel, RH Jet Black - Speed 94 | 1 | $336.75 | Out of Stock | Notify Me |
| 3 | T2306607-NW Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Crystal White | 1 | $326.94 | Obsolete | View Details |
| 3 | T2308738-PR Side Panel, LHR | Side Panel, LHR PART NO LONGER AVAILABLE - Phantom Black > 579397 | 1 | $336.75 | Available to order | 1 |
| 3 | T2306548-FI Rear Side Panel, LH Replaced by T2306607-FI — Rear Side Panel, LH | Rear Side Panel, LH Sulphur Yellow 549577 > 580012 | 1 | $188.71 | Unavailable | View Details |
| 3 | T2306607-FI Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Sulphur Yellow 580013 > 602552 | 1 | $258.06 | Obsolete | View Details |
| 3 | T2306548-CW Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Diablo Red > 549576 | 1 | $218.74 | Obsolete | View Details |
| 3 | T2306607-LS Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Matt Graphite; ABS Special Edition | 1 | $258.06 | Obsolete | View Details |
| 3 | T2306607-JZ Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Matt Caspian; 602553 > 657552 | 1 | $326.94 | Obsolete | View Details |
| 3 | T2306607-CW Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Diablo Red; 657553 > | 1 | $258.06 | Obsolete | View Details |
| 3 | T2306607-FA Rear Side Panel, LH | Rear Side Panel, LH Racing Yellow - Speed 94 | 1 | $243.32 | Out of Stock | Notify Me |
| 3 | T2306607-PG Rear Side Panel, LH | Rear Side Panel, LH PART NO LONGER AVAILABLE - Jet Black - Speed 94 | 1 | $258.06 | Obsolete | View Details |
| 4 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 5 | T3330726 Screw, Btn/Hd, M6 x 12, Slv | Screw, Btn/Hd, M6 x 12, Slv | 3 | $4.42 | Available to order | 3 |
| 6 | T3020029 Grommet, Side Panel | Grommet, Side Panel | 2 | $2.55 | Available to order | 2 |
| 7 | T3701170 Plastic Rivet, Screw Type | Plastic Rivet, Screw Type | 2 | $1.21 | Available to order | 2 |
| 8 | T2304444 Seat, Twin | Seat, Twin | 1 | $598.53 | Available to order | 1 |
| 8 | T2304480 Seat, Twin, Stripe | Seat, Twin, Stripe ABS Special Edition | 1 | $598.53 | Available to order | 1 |
| 9 | T2501730 Battery Strap | Battery Strap | 1 | $10.18 | Available to order | 1 |
| 10 | T2401819 Support, Fuel Tank | Support, Fuel Tank | 1 | $12.38 | Out of Stock | Notify Me |
| 11 | T2304465-NW Seat Cowl, Painted | Seat Cowl, Painted Crystal White; ABS Special Edition | 1 | $379.04 | Backorder — Late July 2026 | 1 |
| 11 | T2304450-LS Seat Cowl, Painted | Seat Cowl, Painted Matt Graphite; ABS Special Edition | 1 | $379.04 | Out of Stock | Notify Me |
| 11 | T2304450-FA Seat Cowl, Painted | Seat Cowl, Painted Speed 94 | 1 | $379.04 | Backorder — Late July 2026 | 1 |
| 11 | T2304450-PG Seat Cowl, Painted | Seat Cowl, Painted Speed 94 | 1 | $379.04 | Out of Stock | Notify Me |
| 12 | T3331063 Bolt, But/Hd, M5 x 17, Slv | Bolt, But/Hd, M5 x 17, Slv ABS Special Edition | 2 | $2.17 | Available to order | 2 |
| 13 | A2306984 Grab Rail | Grab Rail IN Only - N/A to Speed 94 | 1 | $135.00 | Available to order | 1 |
| 14 | T2305997 Badge, Insert, Triangular | Badge, Insert, Triangular IN Only - N/A to Speed 94 | 1 | $13.45 | Available to order | 1 |
| 15 | T3205653 Bolt, HHF, Lghtd, M8 x 30, Slv | Bolt, HHF, Lghtd, M8 x 30, Slv IN Only - N/A to Speed 94 | 4 | $1.21 | Available to order | 4 |
