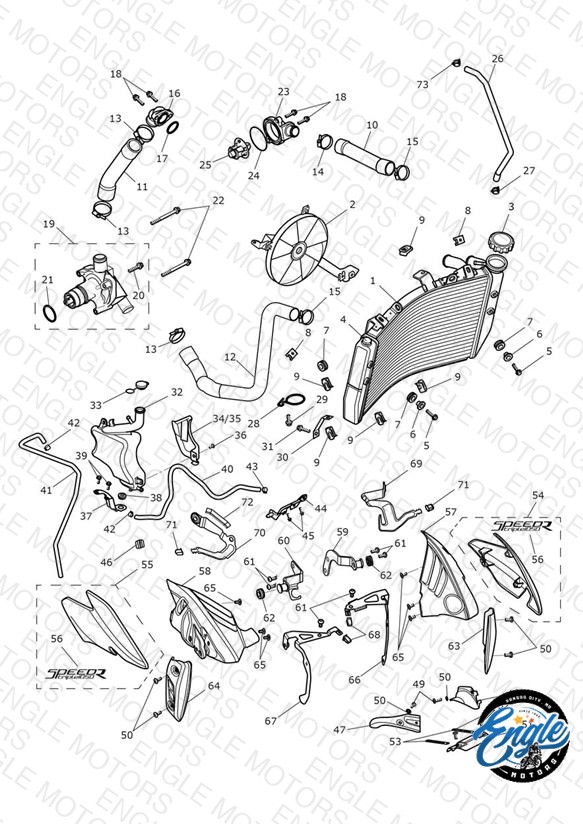

Loading schematic...
Cooling System
Parts (72)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2100683 Radiator, Curved | Radiator, Curved | 1 | $802.92 | Out of Stock | Notify Me |
| 2 | T2100684 Cooling Fan | Cooling Fan | 1 | $475.29 | Available to order | 1 |
| 3 | T2100164 Cap Assy, Radiator | Cap Assy, Radiator | 1 | $19.13 | Available to order | 1 |
| 4 | T2100084 Bleed Screw, Nylon | Bleed Screw, Nylon | 1 | $7.42 | Available to order | 1 |
| 5 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 6 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 2 | $5.78 | Available to order | 2 |
| 7 | T3020153 Grommet, 13 x 3 x 10 | Grommet, 13 x 3 x 10 | 3 | $1.91 | Available to order | 3 |
| 8 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 2 | $4.92 | Backorder — Early August 2026 | 2 |
| 10 | T2100781 Hose, Cylinder Head to Radiator | Hose, Cylinder Head to Radiator | 1 | $25.00 | Available to order | 1 |
| 11 | T2100782 Hose, Pump to Block | Hose, Pump to Block | 1 | $28.00 | Available to order | 1 |
| 12 | T2100786 Hose, Radiator to Pump | Hose, Radiator to Pump | 1 | $26.30 | Available to order | 1 |
| 13 | T3706216 Clamp, Constant Tension, Dia 32 | Clamp, Constant Tension, Dia 32 | 3 | $13.99 | Available to order | 3 |
| 14 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 1 | $13.99 | Available to order | 1 |
| 15 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 2 | $13.99 | Available to order | 2 |
| 16 | T2107070 Elbow, Water, Cast, Black | Elbow, Water, Cast, Black | 1 | $58.92 | Out of Stock | Notify Me |
| 17 | T3600190 O Ring, 24 x 2.5 | O Ring, 24 x 2.5 | 1 | $1.13 | Backorder — Early August 2026 | 1 |
| 19 | T2100783 Water Pump Assembly | Water Pump Assembly | 1 | $216.72 | Available to order | 1 |
| 20 | T3200190 Bolt, RHHF, M6 x 25, Slv | Bolt, RHHF, M6 x 25, Slv | 1 | $2.63 | Available to order | 1 |
| 21 | T2100784 O Ring, Water Pump | O Ring, Water Pump | 1 | $11.22 | Backorder — Late July 2026 | 1 |
| 22 | T3205073 Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv | Bolt, HHF, Lghtd, M6 x 1.0 x 50, Slv | 2 | $6.73 | Available to order | 2 |
| 23 | T2100826 Elbow, Coolant, Bypass, Black | Elbow, Coolant, Bypass, Black | 1 | $58.92 | Available to order | 1 |
| 24 | T2100713 O Ring, Water Elbow | O Ring, Water Elbow | 1 | $3.50 | Available to order | 1 |
| 25 | T2102020 Thermostat, Bypass | Thermostat, Bypass | 1 | $76.04 | Available to order | 1 |
| 26 | T2101101 Kit, Bypass Hose | Kit, Bypass Hose > Eng No 764760 - All Except BR | 1 | $23.69 | Out of Stock | Notify Me |
| 26 | T2101980 Bypass Hose | Bypass Hose Eng No 764761 > - All Except BR | 1 | $23.00 | Out of Stock | Notify Me |
| 27 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 28 | T2101655 Hose Guide | Hose Guide | 1 | $6.55 | Available to order | 1 |
| 29 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 30 | T2100403 Bracket, Radiator Shield | Bracket, Radiator Shield | 1 | $7.14 | Available to order | 1 |
| 31 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 1 | $1.72 | Out of Stock | Notify Me |
| 32 | T2105000 Expansion Tank | Expansion Tank | 1 | $85.52 | Available to order | 1 |
| 33 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 34 | T2306564 Spares Kit, Expansion Cover | Spares Kit, Expansion Cover | 1 | $62.71 | Available to order | 1 |
| 35 | T3650011 Adhesive Tape, 19mm x 50mm | Adhesive Tape, 19mm x 50mm | 1 | $9.53 | Out of Stock | Notify Me |
| 36 | T3701098 Firtree, Dia 5 x 18 | Firtree, Dia 5 x 18 | 1 | $5.24 | Available to order | 1 |
| 37 | T2105001 Bracket, Expansion Tank | Bracket, Expansion Tank | 1 | $10.18 | Available to order | 1 |
| 38 | T3020135 Rubber Grommet | Rubber Grommet | 1 | $1.91 | Available to order | 1 |
| 40 | T2105006 Coolant Pipe, Expansion Tank | Coolant Pipe, Expansion Tank | 1 | $21.66 | Available to order | 1 |
| 41 | T2105003 Pipe, Overflow, Expansion Tank | Pipe, Overflow, Expansion Tank | 1 | $19.75 | Available to order | 1 |
| 43 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 44 | T2100483 Bracket, Radiator | Bracket, Radiator | 1 | $16.15 | Available to order | 1 |
| 45 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 2 | $2.63 | Available to order | 2 |
| 46 | T3700196 Wire Clip, 4mm | Wire Clip, 4mm | 1 | $2.95 | Available to order | 1 |
| 47 | T2100397 Shield, Frame, RH | Shield, Frame, RH | 1 | $54.20 | Out of Stock | Notify Me |
| 48 | T2100398 Shield, Frame, LH | Shield, Frame, LH | 1 | $38.72 | Out of Stock | Notify Me |
| 49 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 2 | $5.30 | Available to order | 2 |
| 50 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 4 | $1.40 | Available to order | 4 |
| 51 | T2100663 Shield, Cam Cover | Shield, Cam Cover | 1 | $63.70 | Out of Stock | Notify Me |
| 52 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 2 | $0.97 | Available to order | 2 |
| 53 | T3700405 Clip, Harness | Clip, Harness | 2 | $4.01 | Available to order | 2 |
| 54 | T2101046-CW Rad Cowl, Outer, LH | Rad Cowl, Outer, LH Diablo Red Panel - Used on Crystal White Bikes | 1 | $208.70 | Available to order | 1 |
| 54 | T2100986-CW Rad Cowl, Outer, LH | Rad Cowl, Outer, LH Diablo Red Panel - Used on Matt Graphite Bikes | 1 | $208.70 | Available to order | 1 |
| 55 | T2101028-CW Rad Cowl, Outer, RH | Rad Cowl, Outer, RH Diablo Red Panel - Used on Crystal White Bikes | 1 | $208.70 | Available to order | 1 |
| 55 | T2100987-CW Rad Cowl, Outer, RH | Rad Cowl, Outer, RH Diablo Red Panel - Used on Matt Graphite Bikes | 1 | $208.70 | Out of Stock | Notify Me |
| 56 | T2100449 Decal, Rad Cowl | Decal, Rad Cowl For Rad Cowls on Crystal White Bikes | 2 | $36.48 | Available to order | 2 |
| 56 | T2100665 Decal, Rad Cowl | Decal, Rad Cowl For Rad Cowls on Matt Graphite Bikes | 2 | $36.48 | Available to order | 2 |
| 57 | T2100985-PS Rad Cowl, Inner, LH | Rad Cowl, Inner, LH Matt Jet Black Panel | 1 | $208.70 | Backorder — Early August 2026 | 1 |
| 58 | T2100967-PS Rad Cowl, Inner, RH | Rad Cowl, Inner, RH Matt Jet Black Panel | 1 | $208.70 | Backorder — Early August 2026 | 1 |
| 59 | T2100656 Bracket, Radiator Cowl, LHR | Bracket, Radiator Cowl, LHR | 1 | $14.66 | Available to order | 1 |
| 60 | T2100657 Bracket, Radiator Cowl, RHR | Bracket, Radiator Cowl, RHR | 1 | $14.66 | Available to order | 1 |
| 61 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 6 | $0.97 | Available to order | 6 |
| 63 | T2100653 Finisher, Rad Cowl, LH | Finisher, Rad Cowl, LH | 1 | $38.68 | Available to order | 1 |
| 64 | T2100654 Finisher, Rad Cowl, RH | Finisher, Rad Cowl, RH | 1 | $38.68 | Backorder — Early August 2026 | 1 |
| 65 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 6 | $0.75 | Available to order | 6 |
| 66 | T2101658 Bracket, Radiator Cowl, LHF | Bracket, Radiator Cowl, LHF | 1 | $14.66 | Available to order | 1 |
| 67 | T2101659 Bracket, Radiator Cowl, RHF | Bracket, Radiator Cowl, RHF | 1 | $14.66 | Backorder — Early August 2026 | 1 |
| 68 | T3700290 Clip, Panel, Bayonet | Clip, Panel, Bayonet | 2 | $2.37 | Available to order | 2 |
| 69 | T2101031 Bracket, Rad Cowl, LH | Bracket, Rad Cowl, LH | 1 | $7.14 | Available to order | 1 |
| 70 | T2101032 Bracket, Rad Cowl, RH | Bracket, Rad Cowl, RH | 1 | $7.14 | Available to order | 1 |
| 71 | T2204745 Grommet, Secondary Cvr Brkt | Grommet, Secondary Cvr Brkt | 2 | $2.63 | Backorder — Late August 2026 | 2 |
| 72 | T3660084 Trim, Cut Length, 55mm | Trim, Cut Length, 55mm | 1 | $4.85 | Backorder — Early August 2026 | 1 |
| 73 | T3700035 Clip, Hose, Dia 13.5-15.0 | Clip, Hose, Dia 13.5-15.0 Eng No 764761 > - All Except BR | 1 | $0.75 | Available to order | 1 |
