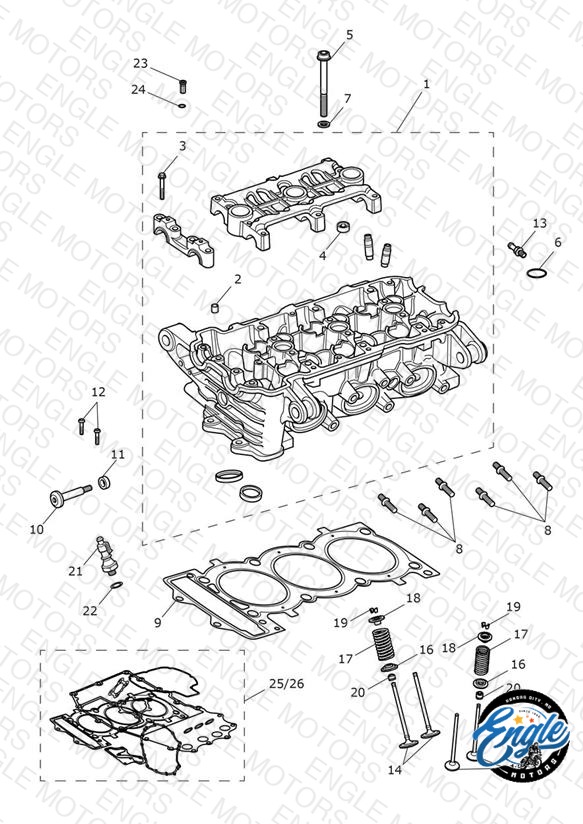

Loading schematic...
Cylinder Head & Valves
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1150818 Cylinder Head, 3 Cyl, Machined | Cylinder Head, 3 Cyl, Machined | 1 | $2529.48 | Available to order | 1 |
| 2 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 4 | $3.90 | Backorder — Late August 2026 | 4 |
| 3 | T3201029 Bolt, RHHF, M6 x 40, Raw | Bolt, RHHF, M6 x 40, Raw | 16 | $2.10 | Available to order | 16 |
| 4 | T3450000 Plug, PTF-SAE Short, 3/8-18, Enc | Plug, PTF-SAE Short, 3/8-18, Enc | 2 | $6.65 | Available to order | 2 |
| 5 | T1158855 Bolt, TX, M10 x 81 | Bolt, TX, M10 x 81 | 8 | $8.18 | Available to order | 8 |
| 6 | T3600188 O Ring, Fluorocarbon | O Ring, Fluorocarbon | 3 | $1.87 | Available to order | 3 |
| 7 | T3555041 Washer, 10.25 x 19.5 x 2 | Washer, 10.25 x 19.5 x 2 | 8 | $2.83 | Available to order | 8 |
| 8 | T3100015 Stud, Shld, M8 x 36.5, Slv, Enc | Stud, Shld, M8 x 36.5, Slv, Enc | 6 | $2.74 | Backorder — Late August 2026 | 6 |
| 9 | T1150961 Gasket, Cylinder Head, 5 Layer | Gasket, Cylinder Head, 5 Layer | 1 | $119.76 | Available to order | 1 |
| 10 | T3332578 Screw, Pan/HD, Shld, M6 x 65, Slv | Screw, Pan/HD, Shld, M6 x 65, Slv | 1 | $5.88 | Available to order | 1 |
| 11 | T1260309 Seal, Cam Cover, Screw, Twin Lip | Seal, Cam Cover, Screw, Twin Lip | 1 | $5.82 | Available to order | 1 |
| 12 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 13 | T2102333 Spigot, Bypass | Spigot, Bypass | 1 | $28.96 | Available to order | 1 |
| 14 | T1130121 Valve, Inlet | Valve, Inlet | 6 | $75.11 | Available to order | 6 |
| 15 | T1130122 Valve, Exhaust | Valve, Exhaust | 6 | $75.11 | Available to order | 6 |
| 16 | T1131216 Platform, Spring Valve | Platform, Spring Valve | 12 | $6.29 | Available to order | 12 |
| 17 | T1131217 Spring Valve | Spring Valve | 12 | $17.99 | Available to order | 12 |
| 18 | T1131215 Retainer, Spring Valve | Retainer, Spring Valve | 12 | $7.80 | Available to order | 12 |
| 19 | T1130705 Collet | Collet | 24 | $1.62 | Available to order | 24 |
| 20 | T1130710 Oil Seal, Valve Stem, 5mm | Oil Seal, Valve Stem, 5mm | 12 | $10.66 | Available to order | 12 |
| 21 | T1210091 Oil Pressure Switch, M10 | Oil Pressure Switch, M10 | 1 | $50.37 | Available to order | 1 |
| 22 | T3550546 Washer, Cu, OD 16 x ID 10.2/ | Washer, Cu, OD 16 x ID 10.2/ | 1 | $0.89 | Available to order | 1 |
| 23 | T1151224 Restrictor, Oil | Restrictor, Oil | 1 | $6.65 | Available to order | 1 |
| 24 | T1151225 O Ring, Restrictor | O Ring, Restrictor | 1 | $2.00 | Available to order | 1 |
| 25 | T3990147 Full Gasket Kit | Full Gasket Kit See Service Section for kit breakdown | 1 | $536.64 | Available to order | 1 |
| 26 | T3990148 Cylinder Head Gasket Kit | Cylinder Head Gasket Kit See Service Section for kit breakdown | 1 | $516.55 | Available to order | 1 |
