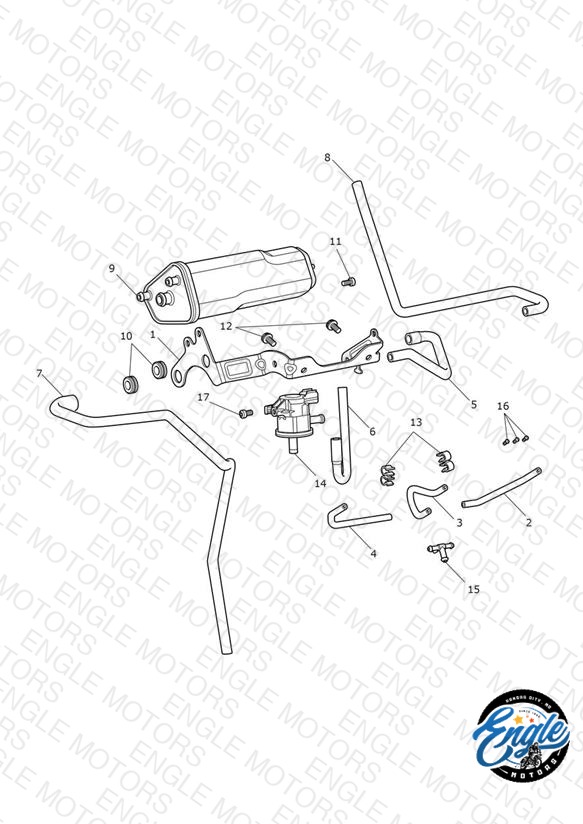

Evaporative Loss Control System
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240327 Bracket, Carbon Canister | Bracket, Carbon Canister | 1 | $106.47 | Backorder — Late July 2026 | 1 |
| 2 | T1292075 Hose, Throttle Body, Cyl 1 | Hose, Throttle Body, Cyl 1 | 1 | $3.24 | Available to order | 1 |
| 3 | T1292076 Hose, Throttle Body, Cyl 2 | Hose, Throttle Body, Cyl 2 | 1 | $3.24 | Available to order | 1 |
| 4 | T1292077 Hose, Throttle Body, Cyl 3 | Hose, Throttle Body, Cyl 3 | 1 | $3.24 | Available to order | 1 |
| 5 | T1249028 Hose, Evap, Purge, Can | Hose, Evap, Purge, Can | 1 | $19.97 | Out of Stock | Notify Me |
| 6 | T1249029 Hose, Evap, Purge, Valve | Hose, Evap, Purge, Valve | 1 | $20.99 | Out of Stock | Notify Me |
| 7 | T1240313 Hose, Vent, Evap | Hose, Vent, Evap | 1 | $15.81 | Out of Stock | Notify Me |
| 8 | T2403010 Carbon Cannister | Carbon Cannister | 1 | $112.13 | Available to order | 1 |
| 9 | T1240218 Hose, Evap, Fuel Tank | Hose, Evap, Fuel Tank | 1 | $35.65 | Out of Stock | Notify Me |
| 10 | T3020085 Grommet, Dia 18 x 9 | Grommet, Dia 18 x 9 | 2 | $2.10 | Available to order | 2 |
| 11 | T3050341 Screw, Cap/Hd, M5 x 10, Slv | Screw, Cap/Hd, M5 x 10, Slv | 1 | $3.80 | Available to order | 1 |
| 12 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 2 | $1.40 | Available to order | 2 |
| 13 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 2 | $2.63 | Available to order | 2 |
| 14 | T1248990 Purge Valve | Purge Valve | 1 | $66.52 | Available to order | 1 |
| 15 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 16 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 3 | $11.32 | Available to order | 3 |
| 17 | T3332568 Screw, But/HD, M5 x 8, Slv | Screw, But/HD, M5 x 8, Slv | 1 | $3.90 | Available to order | 1 |
