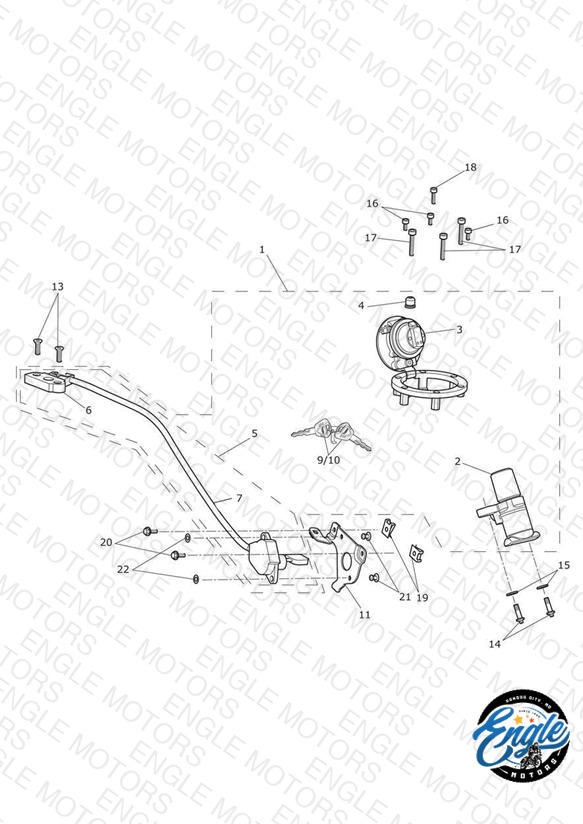

#	Part Number	Description	Qty	Price	Status
1	T2500947 Lockset	Lockset	1	$589.72	Available to order	1 Ships within 3–7 business days
2	T2504586 Ignition Lock, Combined Replaced by T2506407 — Ignition Lock Kit — Available to Order	Ignition Lock, Combined	1	$215.63	Unavailable	View Details
3	T2401242 Filler Cap Assy, Fuel Tank	Filler Cap Assy, Fuel Tank Includes 2 keys	1	$212.94	Available to order	1 Ships within 3–7 business days
4	T2500622 Seal, Filler Cap, Breather	Seal, Filler Cap, Breather	1	$6.14	Available to order	1 Ships within 3–7 business days
5	T2504589 Seat Lock Assy	Seat Lock Assy	1	$140.69	Out of Stock	Notify Me
6	T2500506 Seat Latch Housing	Seat Latch Housing	2	$33.01	Available to order	2 Ships within 3–7 business days
7	T2505540 Cable Seat Lock	Cable Seat Lock	1	$28.60	Available to order	1 Ships within 3–7 business days
9	T2504577 Key, Cut, Immobiliser	Key, Cut, Immobiliser Supplied as pair	1	$79.02	Out of Stock	Notify Me
10	T2504578 Key, Blank, Immobiliser	Key, Blank, Immobiliser Supplied as single	2	$72.26	Available to order	2 Ships within 3–7 business days
11	T2501462 Bracket Assembly, Seat Lock	Bracket Assembly, Seat Lock	1	$9.97	Available to order	1 Ships within 3–7 business days
13	T3332727 Screw, Pan/Hd Tx, M6 x 20, Slv	Screw, Pan/Hd Tx, M6 x 20, Slv	2	$4.45	Available to order	2 Ships within 3–7 business days
14	T3330327 Bolt, Shear, M6 x 22, Enc	Bolt, Shear, M6 x 22, Enc	2	$5.24	Available to order	2 Ships within 3–7 business days
15	T3550436 Washer, M6, Elongated	Washer, M6, Elongated	2	$4.45	Available to order	2 Ships within 3–7 business days
16	T3050341 Screw, Cap/Hd, M5 x 10, Slv	Screw, Cap/Hd, M5 x 10, Slv	3	$3.80	Available to order	3 Ships within 3–7 business days
17	T3050343 Screw, Cap/Hd, M5 x 30, Slv	Screw, Cap/Hd, M5 x 30, Slv	3	$4.45	Available to order	3 Ships within 3–7 business days
18	T3050342 Screw, Cap/Hd, M5 x 16, Slv	Screw, Cap/Hd, M5 x 16, Slv	1	$2.85	Available to order	1 Ships within 3–7 business days
19	T3350123 Nut, Captive, M5, Non-Secured	Nut, Captive, M5, Non-Secured	2	$2.48	Available to order	2 Ships within 3–7 business days
20	T3330649 Screw, Pan/Hd, Tx, M5 x 12, Slv	Screw, Pan/Hd, Tx, M5 x 12, Slv	2	$5.67	Available to order	2 Ships within 3–7 business days
21	T3300001 Pop Rivet	Pop Rivet	2	$1.13	Available to order	2 Ships within 3–7 business days
22	T3550289 Washer, 11 x 5.1 x 1.6	Washer, 11 x 5.1 x 1.6	2	$2.25	Available to order	2 Ships within 3–7 business days
