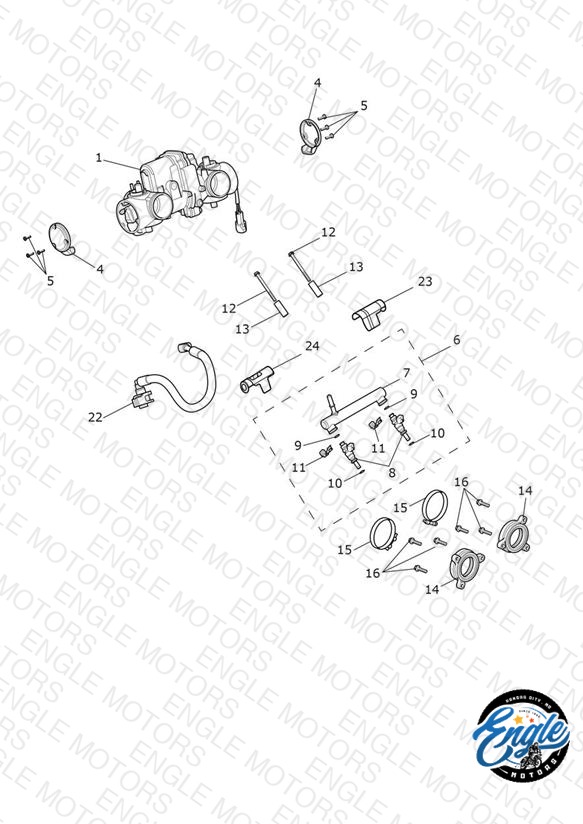

Triumph Speed Twin 1200 Throttle Bodies — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T1240285 Throttle Body Assy, Twin 44mm	Throttle Body Assy, Twin 44mm	1	$2640.58	Available to order	1 Ships within 3–7 business days
4	T1240422 Cover, TPS	Cover, TPS	2	$27.40	Available to order	2 Ships within 3–7 business days
5	T3330248 Screw, Pan/Hd, M4 x 16	Screw, Pan/Hd, M4 x 16	6	$1.03	Available to order	6 Ships within 3–7 business days
6	T1241970 Fuel Rail Assy, High Flow	Fuel Rail Assy, High Flow	1	$249.05	Out of Stock	Notify Me
7	T1242261 Fuel Rail Assy	Fuel Rail Assy	1	$243.93	Available to order	1 Ships within 3–7 business days
8	T1241960 Injector Assy, High Flow	Injector Assy, High Flow	2	$218.63	Available to order	2 Ships within 3–7 business days
9	T1241965 O Ring, Injector, Upper	O Ring, Injector, Upper	2	$5.42	Available to order	2 Ships within 3–7 business days
10	T1241966 O Ring, Injector, Lower	O Ring, Injector, Lower	2	$5.42	Available to order	2 Ships within 3–7 business days
11	T1241967 Clip, Injector	Clip, Injector	2	$5.78	Available to order	2 Ships within 3–7 business days
12	T3200195 Bolt, RHHF, M6 x 68, Slv	Bolt, RHHF, M6 x 68, Slv > Eng No AG0229 All Expt BR; > AF9930 BR Only	2	$4.36	Backorder — Early August 2026	2
12	T3205075 Bolt, HHF, Lghtd, M6 x 65, Slv	Bolt, HHF, Lghtd, M6 x 65, Slv Eng No AG0230 > All Expt BR; AF9931 > BR Only	2	$3.77	Available to order	2 Ships within 3–7 business days
13	T1242786 Spacer, Fuel Rail, Aluminium	Spacer, Fuel Rail, Aluminium	2	$5.60	Available to order	2 Ships within 3–7 business days
14	T1241991 Transition Piece, 1200	Transition Piece, 1200	2	$33.23	Out of Stock	Notify Me
15	T1241705 Clip, Transition Piece	Clip, Transition Piece	2	$33.23	Available to order	2 Ships within 3–7 business days
16	T3200190 Bolt, RHHF, M6 x 25, Slv	Bolt, RHHF, M6 x 25, Slv	6	$2.63	Available to order	6 Ships within 3–7 business days
22	T1243322 Hose, Fuel Feed, Rubber, Assy	Hose, Fuel Feed, Rubber, Assy	1	$125.46	Out of Stock	Notify Me
23	T1241955 Cover, Fuel Rail, LH	Cover, Fuel Rail, LH > Eng No AG0229 All Expt BR; > AF9930 BR Only	1	$22.52	Available to order	1 Ships within 3–7 business days
24	T1241956 Cover, Fuel Rail, RH	Cover, Fuel Rail, RH > Eng No AG0229 All Expt BR; > AF9930 BR Only	1	$22.52	Available to order	1 Ships within 3–7 business days

Part Number

Price

T1240285

Throttle Body Assy, Twin 44mm

$2640.58

Ships within 3–7 business days

T1240422

Cover, TPS

$27.40

Ships within 3–7 business days

T3330248

Screw, Pan/Hd, M4 x 16
