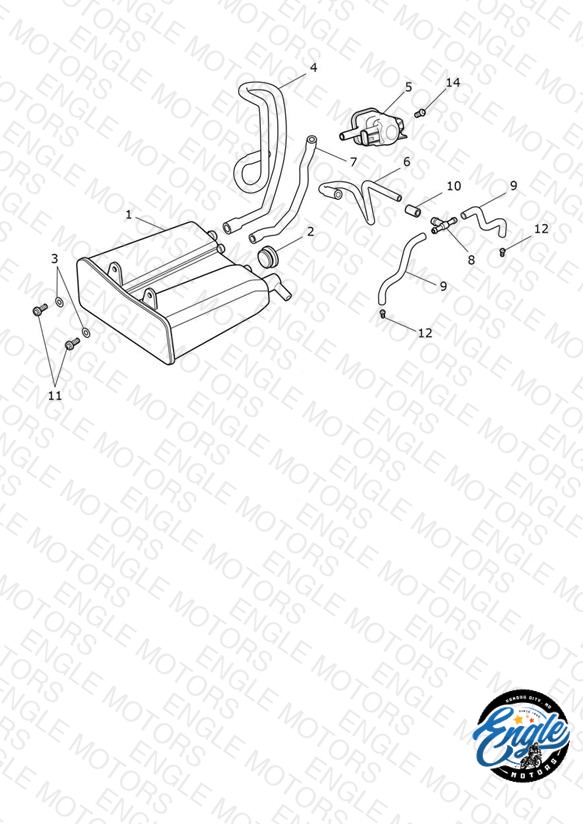

Evap System
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2403030 Carbon Cannister | Carbon Cannister All Mkts Except AU, NZ & ID | 1 | $119.76 | Out of Stock | Notify Me |
| 2 | T3020135 Rubber Grommet | Rubber Grommet All Mkts Except AU, NZ & ID | 1 | $1.91 | Available to order | 1 |
| 3 | T3555050 Washer, 5.3 x 12.5mm | Washer, 5.3 x 12.5mm All Mkts Except AU, NZ & ID | 2 | $0.97 | Available to order | 2 |
| 4 | T1242092 Hose, Formed, Cannister to Solenoid | Hose, Formed, Cannister to Solenoid All Mkts Except AU, NZ & ID | 1 | $16.74 | Out of Stock | Notify Me |
| 5 | T1248990 Purge Valve | Purge Valve All Mkts Except AU, NZ & ID | 1 | $66.52 | Available to order | 1 |
| 6 | T1242095 Hose, Solenoid to Throttle Body | Hose, Solenoid to Throttle Body All Mkts Except AU, NZ & ID | 1 | $21.57 | Out of Stock | Notify Me |
| 7 | T1242082 Hose, Formed, Roll Over to Can | Hose, Formed, Roll Over to Can All Mkts Except AU, NZ & ID | 1 | $19.88 | Out of Stock | Notify Me |
| 8 | T1243154 Connector, T-Piece | Connector, T-Piece | 1 | $2.74 | Available to order | 1 |
| 9 | T1241124 Hose, Formed, Purge | Hose, Formed, Purge | 2 | $25.29 | Out of Stock | Notify Me |
| 10 | T1245009 Cap, Vacuum Connection | Cap, Vacuum Connection AU, NZ & ID Only | 2 | $4.74 | Available to order | 2 |
| 11 | T3332656 Screw, Button, M5 x 12, Enc | Screw, Button, M5 x 12, Enc All Mkts Except AU, NZ & ID | 2 | $1.11 | Available to order | 2 |
| 12 | T1241890 Restrictor, Purge, Evap | Restrictor, Purge, Evap | 2 | $11.32 | Available to order | 2 |
| 13 | T1240402 Hose Drain | Hose Drain All Mkts Except AU, NZ & ID | 1 | $16.74 | Out of Stock | Notify Me |
| 14 | T3330957 Screw, But/Hd, M5 x 12, Slv | Screw, But/Hd, M5 x 12, Slv All Mkts Except AU, NZ & ID | 1 | $8.46 | Available to order | 1 |
| 15 | T3700015 Cable Tie, 185.7 Long | Cable Tie, 185.7 Long | 1 | $0.89 | Available to order | 1 |
