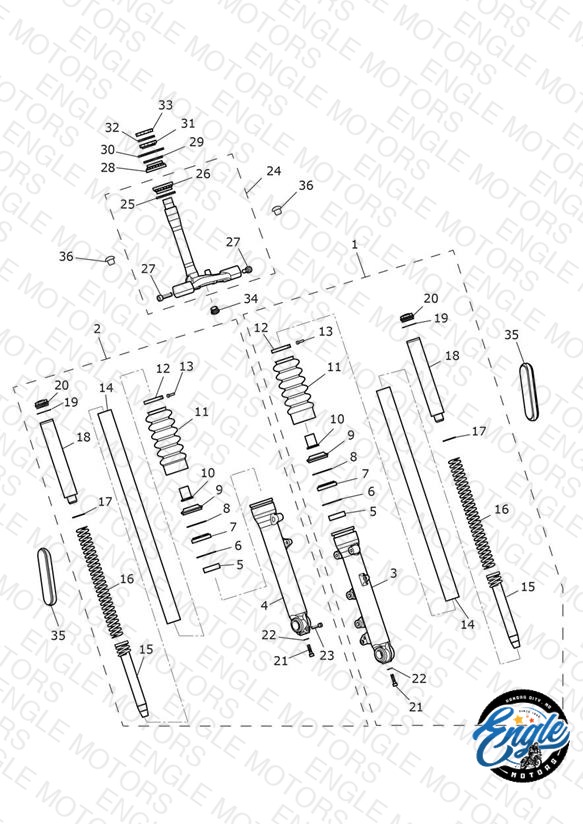

Triumph Bonneville Front Forks & Lower Yoke — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2041320 Stanchion Assy, LH	Stanchion Assy, LH > 917021, All Except BR - > 934111, BR Only	1	$1153.04	Available to order	1 Ships within 3–7 business days
1	T2041801 Stanchion Assy, LH	Stanchion Assy, LH 917022 > All Except BR - 934112 > BR Only	1	$1153.04	Available to order	1 Ships within 3–7 business days
2	T2041321 Stanchion Assy, RH	Stanchion Assy, RH > 917021, All Except BR - > 934111, BR Only	1	$1188.28	Available to order	1 Ships within 3–7 business days
2	T2041802 Stanchion Assy, RH	Stanchion Assy, RH 917022 > All Except BR - 934112 > BR Only	1	$1153.04	Available to order	1 Ships within 3–7 business days
3	T2041701 Casting, Fork, LH	Casting, Fork, LH	1	$536.92	Available to order	1 Ships within 3–7 business days
4	T2041707 Casting, Fork, RH	Casting, Fork, RH	1	$536.92	Available to order	1 Ships within 3–7 business days
5	T2047106 Guide, Bushing	Guide, Bushing	2	$13.51	Available to order	2 Ships within 3–7 business days
6	T2047107 Ring, Back Up	Ring, Back Up	2	$4.36	Available to order	2 Ships within 3–7 business days
7	T2044161 Oil Seal	Oil Seal	2	$24.04	Available to order	2 Ships within 3–7 business days
8	T2040248 Snap Ring	Snap Ring	2	$6.73	Available to order	2 Ships within 3–7 business days
9	T2047109 Dust Seal, Fork	Dust Seal, Fork	2	$18.30	Backorder — Late August 2026	2
10	T2045311 Oil Lock	Oil Lock	2	$39.44	Available to order	2 Ships within 3–7 business days
11	T2044069 Fork Gaiter Replaced by T2044087 — Fork Gaiter — Available to Order	Fork Gaiter	2	$40.04	Unavailable	View Details
12	T2045157 Clip, Gaiter, Front Forks	Clip, Gaiter, Front Forks	2	$3.59	Available to order	2 Ships within 3–7 business days
13	T2040399 Screw, Fork Gaiter Clip, M4	Screw, Fork Gaiter Clip, M4	2	$3.59	Available to order	2 Ships within 3–7 business days
14	T2046532 Fork Tube, Inner	Fork Tube, Inner > 917021, All Except BR - > 934111, BR Only	2	$580.92	Available to order	2 Ships within 3–7 business days
14	T2046536 Fork Tube, Inner	Fork Tube, Inner 917022 > All Except BR - 934112 > BR Only	2	$580.92	Backorder — Late July 2026	2
15	T2046071 Piston, Damper	Piston, Damper > 917021, All Except BR - > 934111, BR Only	2	$131.17	Out of Stock	Notify Me
15	T2046061 Piston, Damper	Piston, Damper 917022 > All Except BR - 934112 > BR Only	2	$131.17	Out of Stock	Notify Me
16	T2042623 Spring, Front Fork, Main	Spring, Front Fork, Main 917022 > All Except BR - 934112 > BR Only	2	$102.64	Out of Stock	Notify Me
16	T2042633 Spring, Front Fork, Main	Spring, Front Fork, Main > 917021, All Except BR - > 934111, BR Only	2	$102.64	Available to order	2 Ships within 3–7 business days
17	T2047151 Washer	Washer 917022 > All Except BR - 934112 > BR Only	2	$1.27	Available to order	2 Ships within 3–7 business days
17	T2047141 Washer	Washer > 917021, All Except BR - > 934111, BR Only	2	$1.27	Available to order	2 Ships within 3–7 business days
18	T2041673 Spacer	Spacer	2	$11.71	Available to order	2 Ships within 3–7 business days
19	T2047113 O Ring, Fork Seal	O Ring, Fork Seal	2	$2.74	Available to order	2 Ships within 3–7 business days
20	T2041156 Fork Cap	Fork Cap	2	$81.75	Available to order	2 Ships within 3–7 business days
21	T2045046 Capscrew, Oil Lock	Capscrew, Oil Lock	2	$10.63	Available to order	2 Ships within 3–7 business days
22	T2045045 Washer, Sealing B	Washer, Sealing B	2	$1.13	Available to order	2 Ships within 3–7 business days
23	T3050133 Capscrew	Capscrew	1	$4.55	Backorder — Early October 2026	1
24	T2042309 Kit, Lower Yoke Assy	Kit, Lower Yoke Assy > 837466 All Excpt BR & > 841082 BR Only	1	$501.70	Available to order	1 Ships within 3–7 business days
24	T2041488 Lower Yoke Assembly	Lower Yoke Assembly 837467 > All Expt BR & 841083 > BR Only	1	$473.26	Out of Stock	Notify Me
25	T3600063 Seal, Dust, Dia 55	Seal, Dust, Dia 55	1	$8.34	Available to order	1 Ships within 3–7 business days
26	T3800052 Bearing, Sac, 55 x 30 x 17	Bearing, Sac, 55 x 30 x 17	1	$33.95	Available to order	1 Ships within 3–7 business days
27	T2048899 Capscrew, M10 x 30, SS, Enc	Capscrew, M10 x 30, SS, Enc	2	$8.09	Available to order	2 Ships within 3–7 business days
28	T3800091 Bearing, Sac	Bearing, Sac	1	$33.95	Available to order	1 Ships within 3–7 business days
29	T3600234 Dust Seal, Dia 55	Dust Seal, Dia 55	1	$8.34	Available to order	1 Ships within 3–7 business days
30	T2042138 Cover, Headstock Bearing	Cover, Headstock Bearing	1	$10.90	Available to order	1 Ships within 3–7 business days
31	T2040301 Adjuster Nut, M30, Lower	Adjuster Nut, M30, Lower	1	$28.50	Available to order	1 Ships within 3–7 business days
32	T2044183 Washer, Headstock	Washer, Headstock	1	$8.30	Available to order	1 Ships within 3–7 business days
33	T2040304 Locknut, M30	Locknut, M30	1	$20.60	Available to order	1 Ships within 3–7 business days
34	T3450060 Cap	Cap	1	$1.40	Available to order	1 Ships within 3–7 business days
35	T2700332 Reflector, Amber, Oval	Reflector, Amber, Oval All Mkts Excpt BR & TH	2	$6.39	Available to order	2 Ships within 3–7 business days
36	T3450134 Blanking Plug	Blanking Plug > 973469	2	$4.92	Available to order	2 Ships within 3–7 business days
36	T3450675 Bung, Hole Dia 12, Black	Bung, Hole Dia 12, Black 973470 >	2	$7.71	Available to order	2 Ships within 3–7 business days
