Loading schematic...

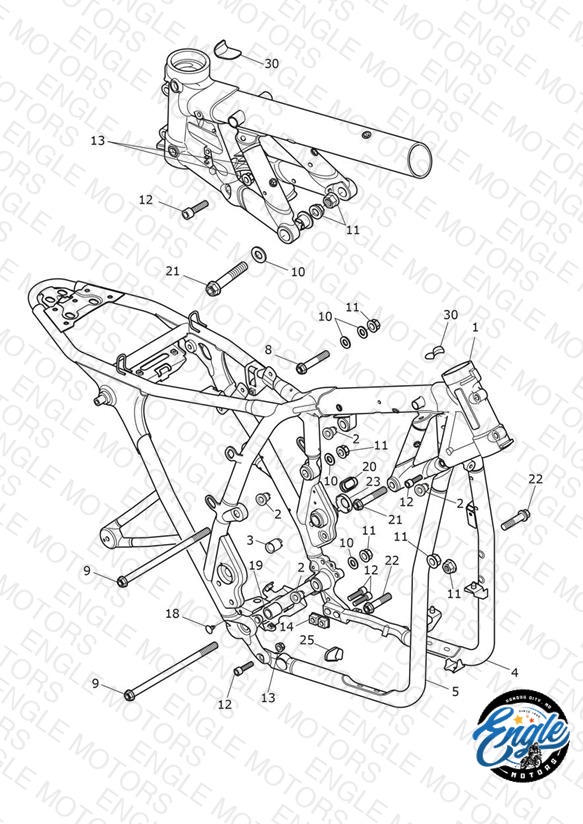

Main Frame Assembly
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2075385 Frame Assembly, Spares, ROW | Frame Assembly, Spares, ROW | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075387 Frame Assembly, Spares, US | Frame Assembly, Spares, US | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075383 Frame Assembly, Spares, CA | Frame Assembly, Spares, CA | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075381 Frame Assembly, Spares, AU | Frame Assembly, Spares, AU | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075384 Frame Assembly, Spares, CN | Frame Assembly, Spares, CN | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075382 Frame Assembly, Spares, BR | Frame Assembly, Spares, BR | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075388 Frame Assembly, Spares, KR | Frame Assembly, Spares, KR | 1 | $2877.70 | Out of Stock | Notify Me |
| 1 | T2075389 Frame Assembly, Spares, XA | Frame Assembly, Spares, XA | 1 | $2877.70 | Out of Stock | Notify Me |
| 2 | T2071980 Adjuster, Frame, M12 | Adjuster, Frame, M12 | 4 | $9.78 | Out of Stock | Notify Me |
| 3 | T2051010 Swingarm Pivot Adjuster | Swingarm Pivot Adjuster | 1 | $24.43 | Available to order | 1 |
| 4 | T2076643 Cradle Assy, LH | Cradle Assy, LH | 1 | $266.39 | Backorder — Early August 2026 | 1 |
| 5 | T2071099 Cradle Assy, RH | Cradle Assy, RH | 1 | $268.08 | Out of Stock | Notify Me |
| 8 | T3150316 Bolt, HHF, M12 x 70, Silver | Bolt, HHF, M12 x 70, Silver | 1 | $13.10 | Available to order | 1 |
| 9 | T3334675 Bolt, HHF, M12 x 240, Slv | Bolt, HHF, M12 x 240, Slv | 2 | $6.94 | Out of Stock | Notify Me |
| 10 | T3501795 Washer, M12, OD26, Hardened, Slv | Washer, M12, OD26, Hardened, Slv | 5 | $2.25 | Available to order | 5 |
| 11 | T3350234 Locknut, Flgd, M12 x 1.25 | Locknut, Flgd, M12 x 1.25 | 7 | $6.07 | Available to order | 7 |
| 12 | T3203206 Screw, Cap/Hd, M10 x 35, Slv | Screw, Cap/Hd, M10 x 35, Slv | 5 | $6.67 | Available to order | 5 |
| 13 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 3 | $4.16 | Available to order | 3 |
| 14 | T2075055 Bracket, M10 | Bracket, M10 | 1 | $15.12 | Available to order | 1 |
| 18 | T3450299 Firtree, M6 | Firtree, M6 | 1 | $3.33 | Out of Stock | Notify Me |
| 19 | T2072119 Spacer, 13 x 24 x 29 | Spacer, 13 x 24 x 29 | 1 | $7.42 | Available to order | 1 |
| 20 | T2070387 Bung, Rubber, Oval | Bung, Rubber, Oval | 1 | $3.17 | Available to order | 1 |
| 21 | T3151024 Bolt, HHF, M12 x 75, 10,9, Slv | Bolt, HHF, M12 x 75, 10,9, Slv | 2 | $6.39 | Available to order | 2 |
| 22 | T3151021 Bolt, HHF, M12 x 55, 10.9, Slv | Bolt, HHF, M12 x 55, 10.9, Slv | 2 | $6.14 | Available to order | 2 |
| 23 | T2074269 Cover, Swingarm Pivot | Cover, Swingarm Pivot | 1 | $42.64 | Available to order | 1 |
| 25 | T2084848 Rubber Pad, Sidestand | Rubber Pad, Sidestand | 1 | $3.04 | Available to order | 1 |
| 30 | T2073980 Fuel Tank Protection Pad | Fuel Tank Protection Pad | 1 | $24.60 | Available to order | 1 |
