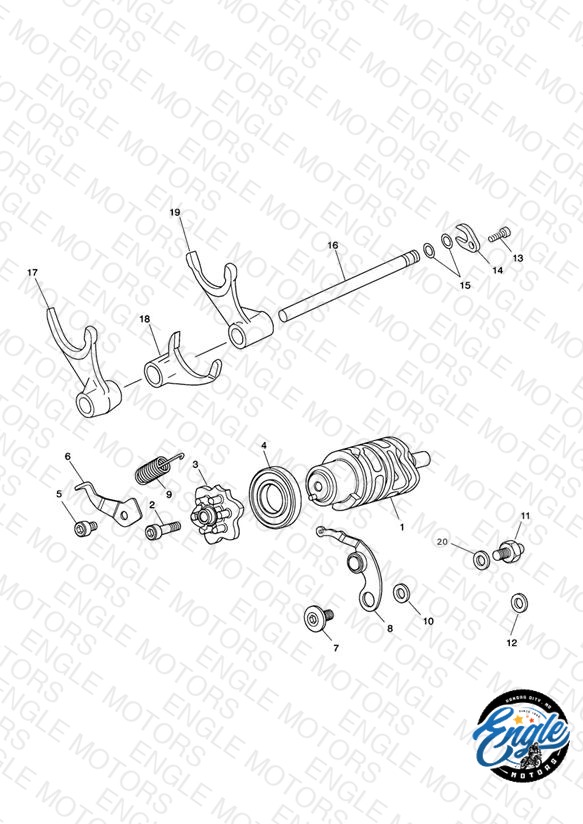

Gear Selector Drum > Eng No 563846
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1199911 Selector Drum Assy | Selector Drum Assy > Eng No 536532 | 1 | $277.90 | Out of Stock | Notify Me |
| 1 | T1192233 Kit, Selector Drum Assy | Kit, Selector Drum Assy Eng No 536533 > | 1 | $378.49 | Available to order | 1 |
| 2 | T3050302 Capscrew, Skt/Hd, M6 x 35 | Capscrew, Skt/Hd, M6 x 35 | 1 | $1.21 | Available to order | 1 |
| 3 | T1190278 Detent Wheel, Pivot, G/change | Detent Wheel, Pivot, G/change | 1 | $40.47 | Available to order | 1 |
| 4 | T3800090 Bearing Ball, Unshld, 20x42x8 | Bearing Ball, Unshld, 20x42x8 | 1 | $7.62 | Out of Stock | Notify Me |
| 5 | T3051069 Screw, Cap/Hd, M6 x 10, Enc, Raw | Screw, Cap/Hd, M6 x 10, Enc, Raw | 1 | $1.27 | Available to order | 1 |
| 6 | T1190277 Retaining Plate, Detent Spring | Retaining Plate, Detent Spring | 1 | $7.80 | Available to order | 1 |
| 7 | T3050188 Bolt, Pan/HD, Shld, M6 x 16.2 | Bolt, Pan/HD, Shld, M6 x 16.2 | 1 | $0.89 | Available to order | 1 |
| 8 | T1190275 Detent Arm, Linear Pull | Detent Arm, Linear Pull | 1 | $22.72 | Available to order | 1 |
| 9 | T1190303 Spring, Extension | Spring, Extension | 1 | $4.92 | Available to order | 1 |
| 10 | T3550228 Washer, Hardened, 6.4 x 12.5 x 2 | Washer, Hardened, 6.4 x 12.5 x 2 | 1 | $1.72 | Backorder — Mid August 2026 | 1 |
| 11 | T1190494 Neutral Indicator Switch | Neutral Indicator Switch > Eng No 536532 | 1 | $39.24 | Available to order | 1 |
| 11 | T1190988 Kit, Neutral Indicator Switch | Kit, Neutral Indicator Switch Eng No 536533 > | 1 | $39.24 | Backorder — Mid July 2026 | 1 |
| 12 | 3550020-T0301 Sealing Washer, M10 | Sealing Washer, M10 | 1 | $0.90 | Obsolete | View Details |
| 13 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 14 | T1190101 Keeper Plate, Selector Shaft | Keeper Plate, Selector Shaft | 1 | $5.14 | Available to order | 1 |
| 15 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 2 | $2.10 | Available to order | 2 |
| 16 | T1191111 Shaft, Selector | Shaft, Selector | 1 | $14.89 | Available to order | 1 |
| 17 | T1191000 Fork, A, Selector, Output | Fork, A, Selector, Output > Eng No 536532 | 1 | $96.97 | Available to order | 1 |
| 17 | T1197000 Fork, A, Selector, Output | Fork, A, Selector, Output Eng No 536533 > | 1 | $125.46 | Available to order | 1 |
| 18 | T1191006 Fork, B, Selector, Input | Fork, B, Selector, Input | 1 | $98.85 | Available to order | 1 |
| 19 | T1191002 Fork, C, Selector, Output | Fork, C, Selector, Output > Eng No 536532 | 1 | $96.97 | Available to order | 1 |
| 19 | T1198000 Fork, C, Selector, Output | Fork, C, Selector, Output Eng No 536533 > | 1 | $125.46 | Available to order | 1 |
| 20 | T3555044 Washer, 10.23 x 15.84 x 1.5 | Washer, 10.23 x 15.84 x 1.5 Use as required | — | $3.17 | Available to order | 1 |
| 20 | T3555066 Washer, 10.25 x 16.0 x 0.9, Blk | Washer, 10.25 x 16.0 x 0.9, Blk Use as required | — | $3.17 | Available to order | 1 |
