Loading schematic...

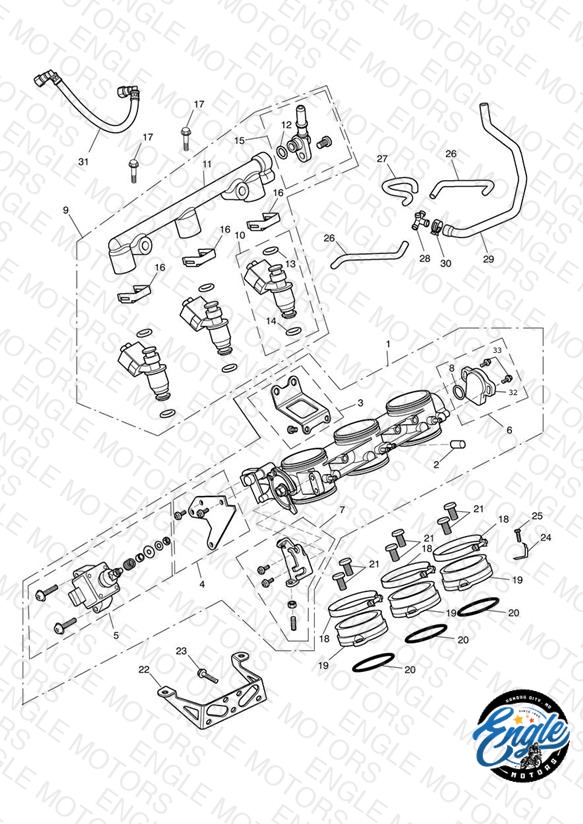

Throttles, Injectors and Fuel Rail
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1240460 Throttle Body Assembly | Throttle Body Assembly | 1 | $2816.60 | Backorder — Mid August 2026 | 1 |
| 2 | T1245009 Cap, Vacuum Connection | Cap, Vacuum Connection Not applicable to US Cal or HK | 1 | $4.74 | Available to order | 1 |
| 3 | T1241180 Bracket Airbox | Bracket Airbox | 1 | $28.41 | Available to order | 1 |
| 4 | T1241181 Bracket, Isc | Bracket, Isc | 1 | $24.33 | Available to order | 1 |
| 5 | T1241182 Actuator, ISC | Actuator, ISC | 1 | $268.08 | Available to order | 1 |
| 6 | T1241183 Sensor, Throttle Position | Sensor, Throttle Position | 1 | $127.08 | Obsolete | View Details |
| 7 | T1241184 Bracket, Throttle Cable | Bracket, Throttle Cable | 1 | $39.06 | Backorder — Late July 2026 | 1 |
| 8 | T1240572 O Ring, Throttle Position Sensor | O Ring, Throttle Position Sensor | 1 | $4.01 | Available to order | 1 |
| 9 | T1240465 Fuel Rail Assembly | Fuel Rail Assembly | 1 | $243.32 | Available to order | 1 |
| 10 | T1240466 Injector, Fuel | Injector, Fuel | 3 | $228.13 | Available to order | 3 |
| 11 | T1240467 Pipe, Comp, Fuel Rail | Pipe, Comp, Fuel Rail | 1 | $209.11 | Out of Stock | Notify Me |
| 12 | T1244024 O Ring, Injector | O Ring, Injector | 1 | $3.90 | Available to order | 1 |
| 13 | T1245016 O Ring, Injector, Upper | O Ring, Injector, Upper | 3 | $5.24 | Available to order | 3 |
| 14 | T1245006 O Ring, Injector, Lower | O Ring, Injector, Lower | 3 | $4.36 | Available to order | 3 |
| 15 | T1240494 L-Joint, Fuel Rail | L-Joint, Fuel Rail | 1 | $44.96 | Available to order | 1 |
| 16 | T1240495 Injector Clip | Injector Clip | 3 | $2.85 | Available to order | 3 |
| 17 | T3205083 Bolt, HHF, LGHTD, M6 x 28, Slv | Bolt, HHF, LGHTD, M6 x 28, Slv | 2 | $2.48 | Available to order | 2 |
| 18 | T3701055 Band Clamp, 55mm | Band Clamp, 55mm | 3 | $6.65 | Available to order | 3 |
| 19 | T1240604 Transition Piece | Transition Piece | 3 | $33.23 | Available to order | 3 |
| 20 | T3600082 O Ring, Transition Piece | O Ring, Transition Piece | 3 | $3.77 | Available to order | 3 |
| 21 | T3330334 Screw, Tx, Pan/Hd, M6 x 16, Slv | Screw, Tx, Pan/Hd, M6 x 16, Slv | 6 | $2.63 | Available to order | 6 |
| 22 | T1240561 Bracket, Fuel Rail Assembly | Bracket, Fuel Rail Assembly | 1 | $10.34 | Available to order | 1 |
| 23 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 3 | $1.72 | Out of Stock | Notify Me |
| 24 | T1240474 Bracket, Restrictor, 106PS | Bracket, Restrictor, 106PS | 1 | $52.29 | Backorder — Mid August 2026 | 1 |
| 25 | T3050308 Screw, Cap/Hd, M4 x 8 | Screw, Cap/Hd, M4 x 8 | 1 | $5.14 | Available to order | 1 |
| 26 | T1244445 Hose, Map Sensor CYLS 1 & 3 | Hose, Map Sensor CYLS 1 & 3 | 2 | $10.28 | Available to order | 2 |
| 27 | T1244446 Hose Map Sensor, CYL 2 | Hose Map Sensor, CYL 2 | 2 | $9.31 | Available to order | 2 |
| 28 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 29 | T1244444 Hose Map Sensor | Hose Map Sensor | 1 | $11.97 | Out of Stock | Notify Me |
| 30 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 1 | $5.42 | Available to order | 1 |
| 31 | T1240592 Hose, Fuel Feed, Rubber, Assy | Hose, Fuel Feed, Rubber, Assy | 1 | $125.46 | Available to order | 1 |
| 32 | T1240562 Sensor | Sensor | 1 | $153.98 | Available to order | 1 |
| 33 | T1240567 Screw Position Sensor | Screw Position Sensor | 2 | $0.75 | Available to order | 2 |
