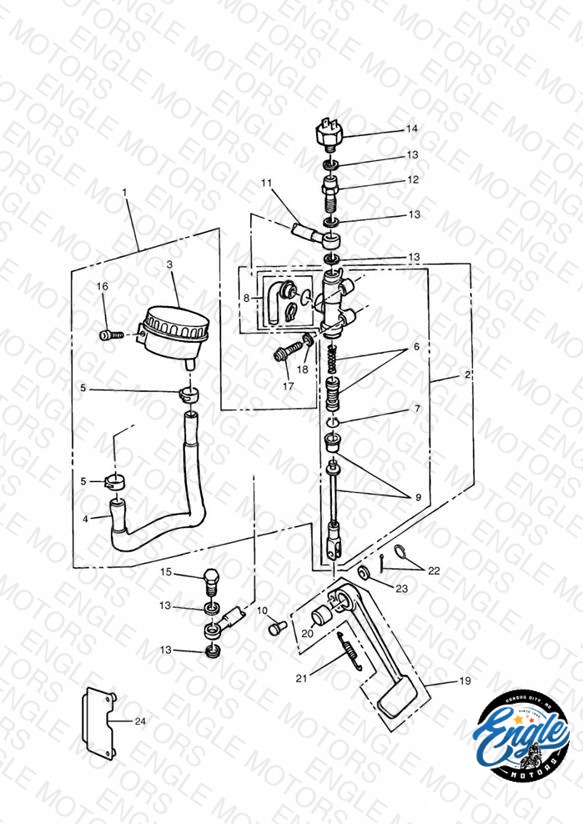

Rear Brake Master Cylinder
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 2020497-T0301 Master cylinder assembly | Master cylinder assembly | 1 | $363.73 | Obsolete | View Details |
| 2 | 2020498-T0301 Master cylinder | Master cylinder | 1 | $179.88 | Obsolete | View Details |
| 3 | 2020430-T0301 Reservoir | Reservoir | 1 | $34.40 | Obsolete | View Details |
| 4 | 2020420-T0301 Hose | Hose | 1 | $32.52 | Obsolete | View Details |
| 5 | 2020440-T0301 Clip, Reservoir, M/Cyl, Rear | Clip, Reservoir, M/Cyl, Rear | 2 | $2.85 | Available to order | 2 |
| 6 | T2020031 Piston Set | Piston Set | 1 | $62.71 | Available to order | 1 |
| 7 | T2020472 Circlip, M'cyl, Rear | Circlip, M'cyl, Rear | 1 | $2.74 | Available to order | 1 |
| 8 | 2020476-T0301 Connector Set, M/Cyl Rear | Connector Set, M/Cyl Rear | 1 | $21.57 | Available to order | 1 |
| 9 | 2020499-T0301 Push rod | Push rod | 1 | $23.05 | Obsolete | View Details |
| 10 | 3000010-T0301 Pin clevis | Pin clevis » 34704 8mm | 1 | $1.60 | Obsolete | View Details |
| 10 | T3000012 CLEVIS PIN | CLEVIS PIN 34705 » 8mm | 1 | $1.91 | Available to order | 1 |
| 11 | T2020843 Braided Steel Brake Hose | Braided Steel Brake Hose » 43554 Rear | 1 | $69.83 | Obsolete | View Details |
| 11 | T2020643 Brake hose Replaced by T2020843 — Braided Steel Brake Hose | Brake hose 43555 » Rear | 1 | $67.70 | Unavailable | View Details |
| 11 | T2020630 Brake hose | Brake hose Rear Sprint Sport | 1 | $67.70 | Obsolete | View Details |
| 11 | T2020742 Braided Brake Hose, Rear | Braided Brake Hose, Rear Part No Longer Available | 1 | $69.89 | Obsolete | View Details |
| 12 | 2020067-T0301 Adaptor | Adaptor » 18627 | 1 | $8.41 | Obsolete | View Details |
| 13 | T3550229 Washer, 15.2 x 10 x 1, Plated | Washer, 15.2 x 10 x 1, Plated » 18627 | 5 | $1.07 | Available to order | 5 |
| 14 | T2023120 Switch, Rear Brake | Switch, Rear Brake | 1 | $41.44 | Available to order | 1 |
| 15 | T3250125 Bolt, Banjo, M10 x 21 | Bolt, Banjo, M10 x 21 | 1 | $7.02 | Available to order | 1 |
| 16 | 3210035-T0301 Screw, Torx, M6 x 20 | Screw, Torx, M6 x 20 M8 x 16mm | 1 | $3.33 | Obsolete | View Details |
| 17 | T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv | Bolt, RHHF, M8 x 1.25 x 45, Slv | 2 | $1.62 | Available to order | 2 |
| 18 | T3550013 Washer | Washer | 2 | $1.13 | Available to order | 2 |
| 19 | T2080316 Brake pedal | Brake pedal | 1 | $77.01 | Available to order | 1 |
| 20 | 3750005-T0301 Bush | Bush | 1 | $7.02 | Available to order | 1 |
| 21 | 2020029-T0301 Spring | Spring | 1 | $2.17 | Available to order | 1 |
| 22 | 3000080-T0301 Clip | Clip » 34704 * Part No Longer Available * | 1 | $0.70 | Obsolete | View Details |
| 22 | T3000302 Clip, 8mm, Clevis Pin | Clip, 8mm, Clevis Pin 34705 » | 1 | $6.07 | Available to order | 1 |
| 23 | 3550185-T0301 Washer | Washer » 34704 | 1 | $0.90 | Obsolete | View Details |
| 24 | T2020431 Cover | Cover » 55071 Sprint Executive | 1 | $27.27 | Obsolete | View Details |
| 24 | T2020433 Cover | Cover Sport model All Vins Executive model 55072 » | 1 | $18.16 | Obsolete | View Details |
