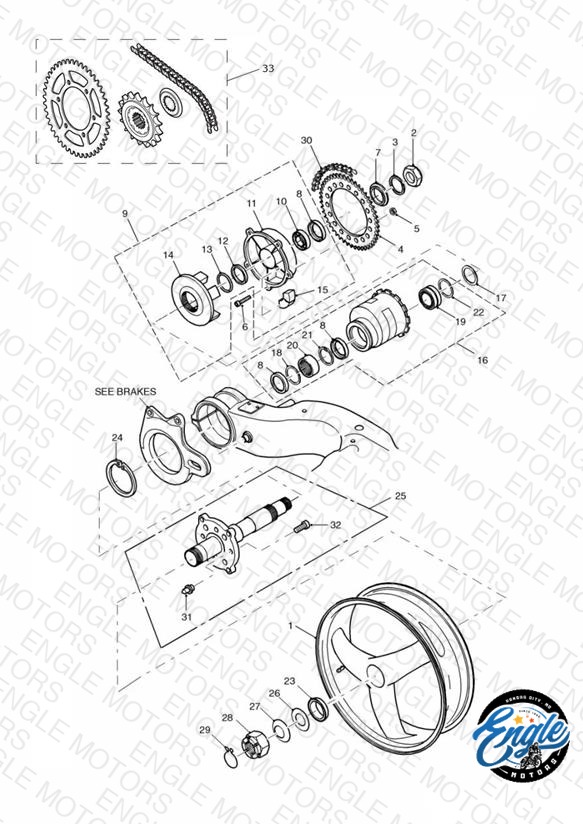

Rear Wheel/Final Drive Single sided swingarm 161318 »
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2015222 Rear Wheel, Silver | Rear Wheel, Silver | 1 | $872.53 | Obsolete | View Details |
| 2 | T2012536 Nut, M35, Slv | Nut, M35, Slv | 1 | $31.28 | Available to order | 1 |
| 3 | T3555034 Conical Washer, 35.5, 51, 5.3 | Conical Washer, 35.5, 51, 5.3 | 1 | $18.25 | Available to order | 1 |
| 4 | T2012500 Sprocket | Sprocket 43T | 1 | $53.46 | Available to order | 1 |
| 5 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 6 | T3050265 Bolt, Pan Hd, Shld, M8 x 32 | Bolt, Pan Hd, Shld, M8 x 32 | 6 | $6.39 | Backorder — Mid August 2026 | 6 |
| 7 | T2012614 Flanged Sleeve, 30 x 45 x 7.5 | Flanged Sleeve, 30 x 45 x 7.5 | 1 | $7.62 | Available to order | 1 |
| 8 | T3600145 Seal, Grease | Seal, Grease | 3 | $4.30 | Backorder — Early August 2026 | 3 |
| 9 | T2012386 Cush Drive Assy | Cush Drive Assy | 1 | $677.73 | Available to order | 1 |
| 10 | T3800150 Bearing, Twin Ball | Bearing, Twin Ball | 1 | $63.70 | Out of Stock | Notify Me |
| 11 | T2012381 Cush, Outer | Cush, Outer | 1 | $387.29 | Available to order | 1 |
| 12 | T2012620 Bearing, Spacer | Bearing, Spacer | 1 | $15.72 | Out of Stock | Notify Me |
| 13 | T3600155 O Ring, Cush | O Ring, Cush | 1 | $7.62 | Out of Stock | Notify Me |
| 14 | T2012360 Cush Centre | Cush Centre | 1 | $153.98 | Backorder — Late July 2026 | 1 |
| 15 | T2012400 Cush rubber | Cush rubber | 5 | $22.72 | Available to order | 5 |
| 16 | T2012432 Eccentric Assy | Eccentric Assy | 1 | $360.86 | Available to order | 1 |
| 17 | T2016667 Washer, 40 x 46.5 x 1.6, Slv | Washer, 40 x 46.5 x 1.6, Slv | 1 | $4.45 | Backorder — Early August 2026 | 1 |
| 18 | T3501055 Snap Ring, Nom Bore 55 Dia | Snap Ring, Nom Bore 55 Dia | 1 | $1.62 | Available to order | 1 |
| 19 | T3800170 Bearing, Twin Ball | Bearing, Twin Ball | 1 | $94.11 | Available to order | 1 |
| 20 | T3800220 Bearing, Needle Roller | Bearing, Needle Roller RH | 1 | $64.62 | Backorder — Late July 2026 | 1 |
| 21 | T3500209 Circlip, Int. 55 x 2 | Circlip, Int. 55 x 2 | 1 | $5.02 | Available to order | 1 |
| 22 | T3501062 Snap Ring, Bore 62 Dia | Snap Ring, Bore 62 Dia | 1 | $3.04 | Out of Stock | Notify Me |
| 23 | T2012575 Conical Spacer, Anodised | Conical Spacer, Anodised | 1 | $29.37 | Backorder — Early August 2026 | 1 |
| 24 | T3500050 Circlip, Nom Shaft 75 Dia | Circlip, Nom Shaft 75 Dia | 1 | $2.10 | Available to order | 1 |
| 25 | T2012299 Axle, Rear, Assy | Axle, Rear, Assy | 1 | $607.34 | Backorder — Early November 2026 | 1 |
| 26 | T3550955 Thrust Washer, Plated | Thrust Washer, Plated | 1 | $11.41 | Out of Stock | Notify Me |
| 27 | T3555036 Washer, Conical, 38.5 x 55.5 x 3.5 | Washer, Conical, 38.5 x 55.5 x 3.5 | 1 | $15.88 | Available to order | 1 |
| 28 | T2012596 Nut, M38, Slv | Nut, M38, Slv | 1 | $40.10 | Out of Stock | Notify Me |
| 29 | T3700207 Clip, Locking | Clip, Locking | 1 | $2.85 | Available to order | 1 |
| 30 | T2017277 530 Chain Assy, 108L | 530 Chain Assy, 108L 108 Link | 1 | $208.63 | Available to order | 1 |
| 31 | T2012297 Drive Pin | Drive Pin | 4 | $36.04 | Out of Stock | Notify Me |
| 32 | T3050211 M6 Bolt, Pan Head | M6 Bolt, Pan Head | 4 | $3.04 | Out of Stock | Notify Me |
| 33 | T2017171 Chain & Sprocket Kit, 108/43/19 | Chain & Sprocket Kit, 108/43/19 | 1 | $274.57 | Out of Stock | Notify Me |
