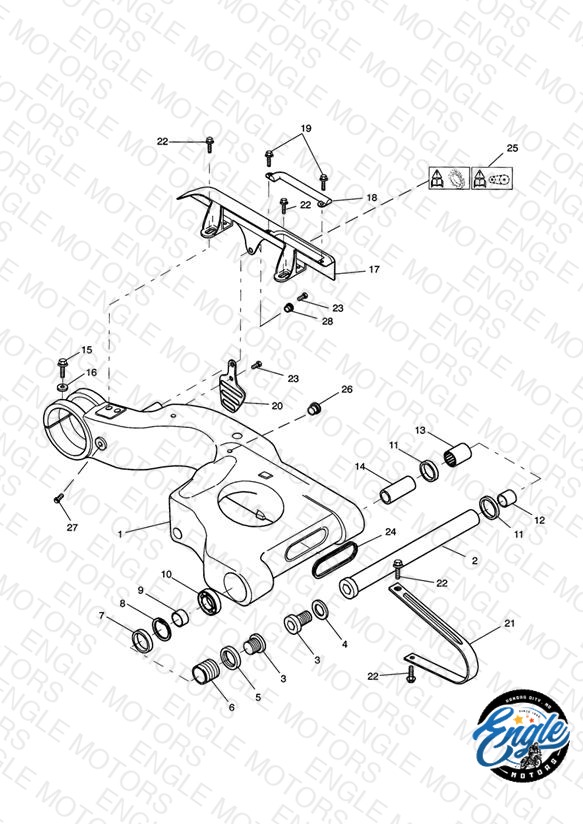

Swinging Arm
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2055212 Swinging Arm Assy, Slv | Swinging Arm Assy, Slv Includes bearings etc - items 6, 7, 8, 10, 11 & 13 | 1 | $1001.09 | Obsolete | View Details |
| 2 | T2057351 Spindle, Swing Arm | Spindle, Swing Arm PART NO LONGER AVAILABLE | 1 | $91.46 | Obsolete | View Details |
| 3 | T2001078 Bolt, Front Spindle, Slv | Bolt, Front Spindle, Slv 1 only req. with T2057351 | 2 | $19.47 | Backorder — Mid July 2026 | 2 |
| 4 | T3550058 Washer | Washer Not req. with T2057351 | 1 | $3.34 | Out of Stock | Notify Me |
| 5 | T2079698 Lock Ring, M36 | Lock Ring, M36 | 1 | $23.76 | Obsolete | View Details |
| 6 | T2079697 Adjuster Collar, M36 | Adjuster Collar, M36 | 1 | $18.93 | Obsolete | View Details |
| 7 | T3600041 Seal, Oil | Seal, Oil | 1 | $8.53 | Available to order | 1 |
| 8 | T3500203 Circlip, Int, 52 x 2 | Circlip, Int, 52 x 2 | 1 | $16.04 | Available to order | 1 |
| 9 | T2057347 Spacer, S/arm, Anodised | Spacer, S/arm, Anodised | 1 | $6.73 | Out of Stock | Notify Me |
| 10 | T3800029 Bearing Ball, 25 52 15 | Bearing Ball, 25 52 15 | 1 | $16.31 | Available to order | 1 |
| 11 | T3600029 Seal, Oil | Seal, Oil | 2 | $5.98 | Available to order | 2 |
| 12 | T2057389 Sleeve, S/Arm, Dia 30 x 39LG | Sleeve, S/Arm, Dia 30 x 39LG * Part No Longer Available * | 1 | $13.54 | Obsolete | View Details |
| 13 | T3800028 Bearing, Needle Roller | Bearing, Needle Roller | 1 | $14.58 | Backorder — Early August 2026 | 1 |
| 14 | T2057340 Spacer, Tube | Spacer, Tube | 1 | $14.74 | Obsolete | View Details |
| 15 | T3331730 Bolt, HHF, M14 x 1.5 x 40, Slv | Bolt, HHF, M14 x 1.5 x 40, Slv | 1 | $25.46 | Available to order | 1 |
| 16 | T3550339 Washer, M14 | Washer, M14 M14 | 1 | $3.24 | Backorder — Early August 2026 | 1 |
| 17 | T2057363 Chainguard | Chainguard | 1 | $30.23 | Out of Stock | Notify Me |
| 18 | T2057361 Hose Guide | Hose Guide | 1 | $4.40 | Obsolete | View Details |
| 19 | T3331043 Screw, Pan/Hd, Tx, M6 x 12, Slv | Screw, Pan/Hd, Tx, M6 x 12, Slv | 2 | $0.97 | Available to order | 2 |
| 20 | T2057362 Chainguard, Lower | Chainguard, Lower | 1 | $23.48 | Available to order | 1 |
| 21 | T2057365 Chain Rubbing Strip | Chain Rubbing Strip | 1 | $37.43 | Available to order | 1 |
| 22 | T3331517 Screw, P/HD Tx, Shld, M6 x 16, S | Screw, P/HD Tx, Shld, M6 x 16, S | 4 | $0.97 | Available to order | 4 |
| 23 | T3330706 Bolt, Rhhf, Lightened, M6 X 18 | Bolt, Rhhf, Lightened, M6 X 18 M6 x 16mm | 2 | $1.69 | Obsolete | View Details |
| 24 | T2050175 Grommet | Grommet | 1 | $6.29 | Out of Stock | Notify Me |
| 25 | T3900092 Label, Chain & Tyres | Label, Chain & Tyres | 1 | $5.69 | Available to order | 1 |
| 26 | T3450009 Plug, M6 | Plug, M6 M6 | 1 | $3.24 | Available to order | 1 |
| 27 | T3050120 Stud, Caliper Carrier | Stud, Caliper Carrier | 1 | $5.41 | Obsolete | View Details |
| 28 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Backorder — Early August 2026 | 1 |
