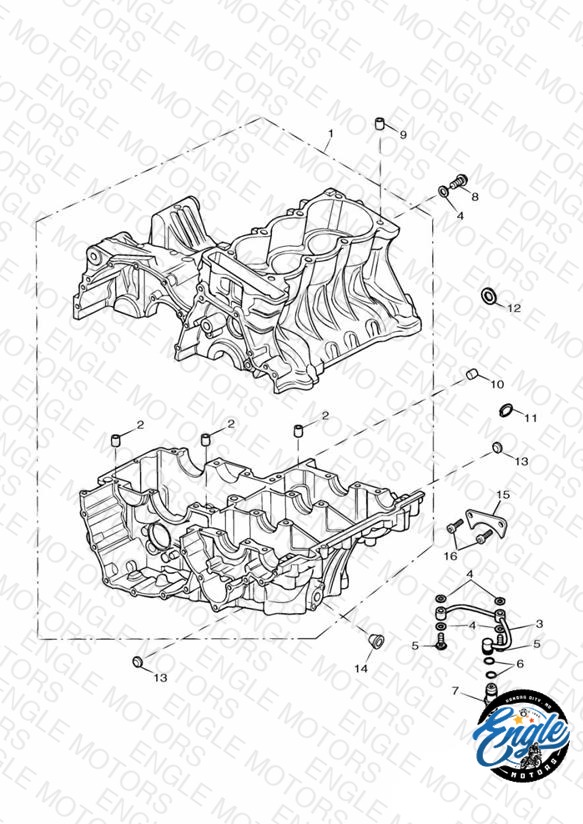

Crankcase
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1160062 Crankcase | Crankcase | 1 | $4471.68 | Obsolete | View Details |
| 2 | T3000103 Dowel, Hollow, 12 x 14 | Dowel, Hollow, 12 x 14 | 3 | $4.08 | Available to order | 3 |
| 3 | T1210595 Oil feed pipe | Oil feed pipe | 1 | $55.80 | Obsolete | View Details |
| 4 | T3550542 Washer, Cu, OD12.5 x Id6.4 | Washer, Cu, OD12.5 x Id6.4 | 5 | $1.05 | Available to order | 5 |
| 5 | T1210242 Bolt, Banjo, M6 x 20 | Bolt, Banjo, M6 x 20 | 2 | $11.03 | Backorder — Late August 2026 | 2 |
| 6 | T3600143 O Ring, ID 9.1 x 1.6, Viton | O Ring, ID 9.1 x 1.6, Viton | 3 | $2.10 | Available to order | 3 |
| 7 | T1210497 Connector | Connector | 1 | $5.04 | Obsolete | View Details |
| 8 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv » 161317 | 1 | $1.72 | Out of Stock | Notify Me |
| 8 | T3203115 Bolt, RHHF, M6x1.0x12, S/S | Bolt, RHHF, M6x1.0x12, S/S 161318 » | 1 | $3.17 | Available to order | 1 |
| 9 | T3000101 Dowel, Hollow, 8 x 14 | Dowel, Hollow, 8 x 14 | 2 | $3.90 | Backorder — Late August 2026 | 2 |
| 10 | T3350661 Grub Screw, M12 x 12 | Grub Screw, M12 x 12 * PART NO LONGER AVAILABLE * | 1 | $2.16 | Obsolete | View Details |
| 11 | T3500208 Circlip, Int, 32 x 2 | Circlip, Int, 32 x 2 | 1 | $0.97 | Available to order | 1 |
| 12 | T3600812 O ring | O ring | 1 | $1.51 | Available to order | 1 |
| 13 | T3450091 Plug, Dia 14, Alum | Plug, Dia 14, Alum | 3 | $2.48 | Out of Stock | Notify Me |
| 14 | T3450005 Plug, NPSI 3/8 Dryseal | Plug, NPSI 3/8 Dryseal | 1 | $6.65 | Available to order | 1 |
| 15 | T1180025 Retainer, Bearing, Pressing | Retainer, Bearing, Pressing ENG NO 148131 » | 1 | $1.72 | Available to order | 1 |
| 16 | T3051062 Screw, M6 x 12, Enc, Raw | Screw, M6 x 12, Enc, Raw ENG NO 148131 » | 2 | $1.47 | Available to order | 2 |
