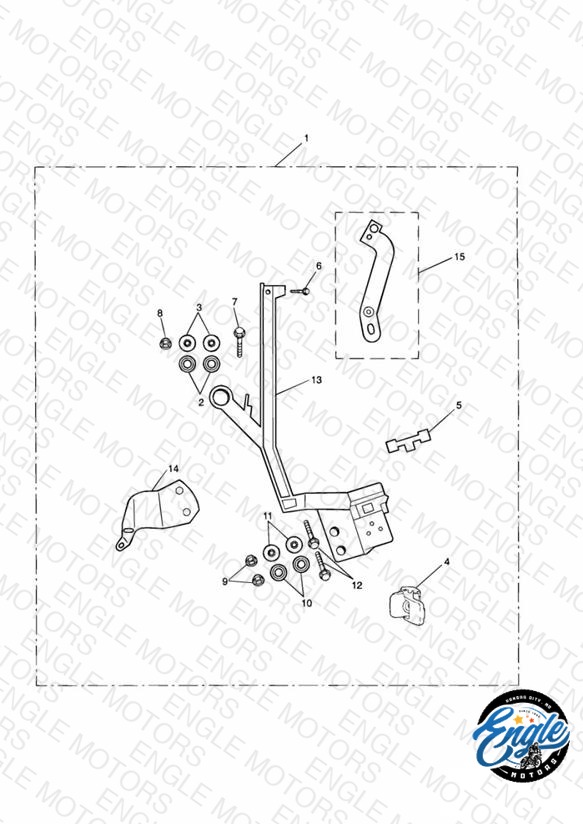

Pannier Rail, LH, Sub Assy
Parts (16)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9508024 Rail assembly | Rail assembly | 1 | $142.00 | Obsolete | View Details |
| 2 | T2350479 Mounting rubber | Mounting rubber | 2 | $4.33 | Available to order | 2 |
| 3 | T3010285 Flanged sleeve | Flanged sleeve | 2 | $2.22 | Available to order | 2 |
| 4 | T2350492 Latch | Latch | 1 | $43.00 | Obsolete | View Details |
| 5 | T2350474 Mounting rubber | Mounting rubber | 1 | $1.55 | Obsolete | View Details |
| 6 | T3335011 Screw, But/Hd, Tx, M8 x 20 | Screw, But/Hd, Tx, M8 x 20 | 1 | $3.50 | Available to order | 1 |
| 7 | T3202118 Bolt, RHHF, M8 x 1.25 x 45, Slv | Bolt, RHHF, M8 x 1.25 x 45, Slv | 1 | $1.62 | Available to order | 1 |
| 7 | 3200118-T0301 Bolt, Rhhf, M8 X 45, Black | Bolt, Rhhf, M8 X 45, Black Replaced by T3202118 | 1 | $1.15 | Unavailable | 1 |
| 8 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
| 9 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 10 | T3020455 Grommet | Grommet | 2 | $0.60 | Obsolete | View Details |
| 11 | T3010021 Flanged sleeve | Flanged sleeve | 2 | $1.60 | Obsolete | View Details |
| 12 | T3331041 Screw, Pan/Hd, Tx, M6 x 25, Enc | Screw, Pan/Hd, Tx, M6 x 25, Enc | 2 | $1.06 | Available to order | 2 |
| 13 | A9500040 Rail | Rail | 1 | $18.35 | Obsolete | View Details |
| 14 | A9500051 Bracket | Bracket | 1 | $6.85 | Obsolete | View Details |
| 15 | A9500058 Bracket | Bracket Indicator | 1 | $30.00 | Obsolete | View Details |
