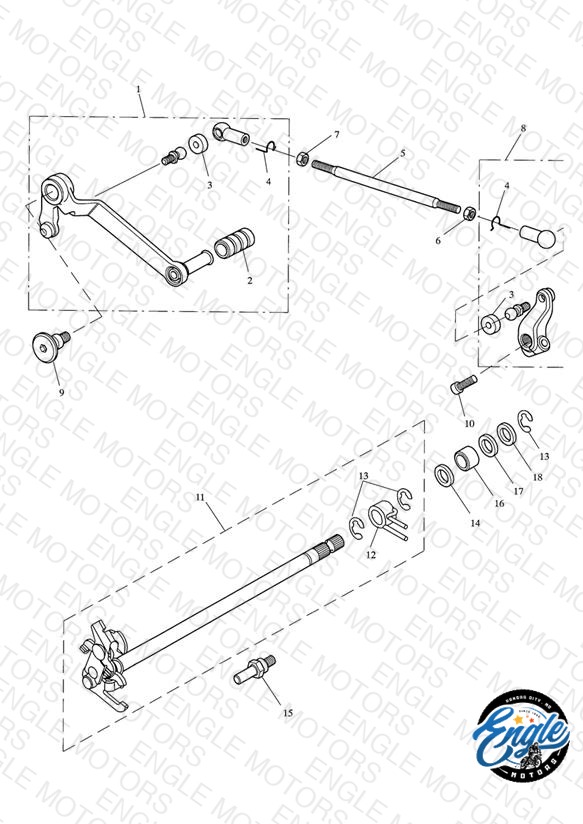

Gear Change Mechanism > Eng No 340169
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2081661 Gearchange Pedal Assy | Gearchange Pedal Assy | 1 | $123.56 | Available to order | 1 |
| 2 | T2080529 Rubber, Gearchange Pedal | Rubber, Gearchange Pedal | 1 | $8.01 | Available to order | 1 |
| 3 | T2086072 Seal, Ball Joint | Seal, Ball Joint | 2 | $7.66 | Available to order | 2 |
| 4 | T2086073 Clip, Ball Joint | Clip, Ball Joint | 2 | $2.37 | Available to order | 2 |
| 5 | T2084431 Rod, Gearchange | Rod, Gearchange | 1 | $34.02 | Available to order | 1 |
| 6 | T3350304 Nut, LH, M6, Slv | Nut, LH, M6, Slv | 1 | $1.51 | Available to order | 1 |
| 7 | T3350300 Nut, M6 x 1.0, Slv | Nut, M6 x 1.0, Slv | 1 | $0.94 | Available to order | 1 |
| 8 | T2081665 Clamp, Assy, Linkage | Clamp, Assy, Linkage | 1 | $95.04 | Available to order | 1 |
| 9 | T3331614 Bolt, Shld, M8, Slv Enc | Bolt, Shld, M8, Slv Enc | 1 | $10.06 | Available to order | 1 |
| 10 | T3050059 Screw, Skt/Hd, M6 X 20, S/S | Screw, Skt/Hd, M6 X 20, S/S | 1 | $1.13 | Available to order | 1 |
| 11 | T1190594 Gearchange Mechanism Assy | Gearchange Mechanism Assy | 1 | $171.11 | Available to order | 1 |
| 12 | T1190041 Spring, Gearchange Return | Spring, Gearchange Return | 1 | $3.61 | Obsolete | View Details |
| 13 | T3500044 E Circlip | E Circlip | 3 | $0.97 | Available to order | 3 |
| 14 | T3555003 Washer, 12 x 18 x 1.2 | Washer, 12 x 18 x 1.2 | 1 | $1.40 | Available to order | 1 |
| 15 | T1190054 Bolt, Spring Abutment | Bolt, Spring Abutment | 1 | $6.39 | Available to order | 1 |
| 16 | 3800041-T0301 Bearing, Gearbox Lever | Bearing, Gearbox Lever | 1 | $13.61 | Available to order | 1 |
| 17 | T3600008 Oil Seal | Oil Seal | 1 | $12.04 | Available to order | 1 |
| 18 | T3550090 Washer, Thrust | Washer, Thrust | 1 | $4.12 | Available to order | 1 |
