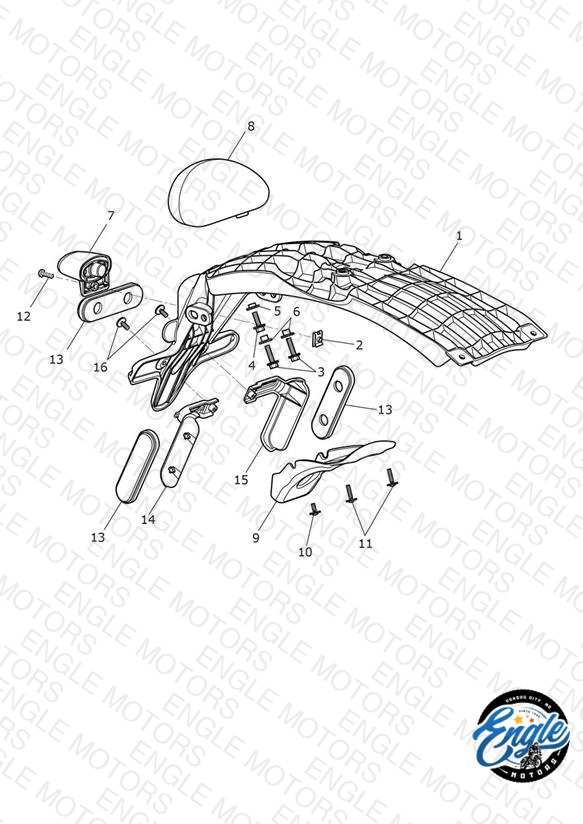

Loading schematic...
Rear Light
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2702034 Support Bracket, Rear Mudguard | Support Bracket, Rear Mudguard | 1 | $36.96 | Available to order | 1 |
| 2 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $4.55 | Backorder — Late August 2026 | 1 |
| 3 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 4 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 5 | T3010062 Flanged Sleeve, M6 x 7.8 x 2.85 | Flanged Sleeve, M6 x 7.8 x 2.85 | 1 | $7.14 | Backorder — Early August 2026 | 1 |
| 6 | T3010065 Flanged Sleeve, M6 x 5.5 LG | Flanged Sleeve, M6 x 5.5 LG | 2 | $4.64 | Backorder — Early August 2026 | 2 |
| 7 | T2701271 Light, Reg Plate | Light, Reg Plate | 1 | $18.91 | Available to order | 1 |
| 8 | T2701265 Rear Light Assy | Rear Light Assy Includes Subharness | 1 | $190.11 | Available to order | 1 |
| 9 | T2702100 Closure Plate, Harness | Closure Plate, Harness | 1 | $57.98 | Available to order | 1 |
| 10 | T3331436 Screw, S/Tap, Pan, Torx, 4 x 11, PT | Screw, S/Tap, Pan, Torx, 4 x 11, PT | 1 | $0.75 | Available to order | 1 |
| 11 | T3331414 Screw, S/Tap, Tx, 5 x 16 | Screw, S/Tap, Tx, 5 x 16 | 2 | $1.51 | Backorder — Early August 2026 | 2 |
| 12 | T3330696 Screw, But/Hd, M5 X 16, Slv | Screw, But/Hd, M5 X 16, Slv | 1 | $5.69 | Available to order | 1 |
| 13 | T2700443 Reflector, Oval, Red | Reflector, Oval, Red | 3 | $6.14 | Available to order | 3 |
| 14 | T2702025 Bracket, Side Reflector, RH | Bracket, Side Reflector, RH | 1 | $30.70 | Backorder — Early August 2026 | 1 |
| 15 | T2702026 Bracket, Side Reflector, LH | Bracket, Side Reflector, LH | 1 | $30.70 | Out of Stock | Notify Me |
