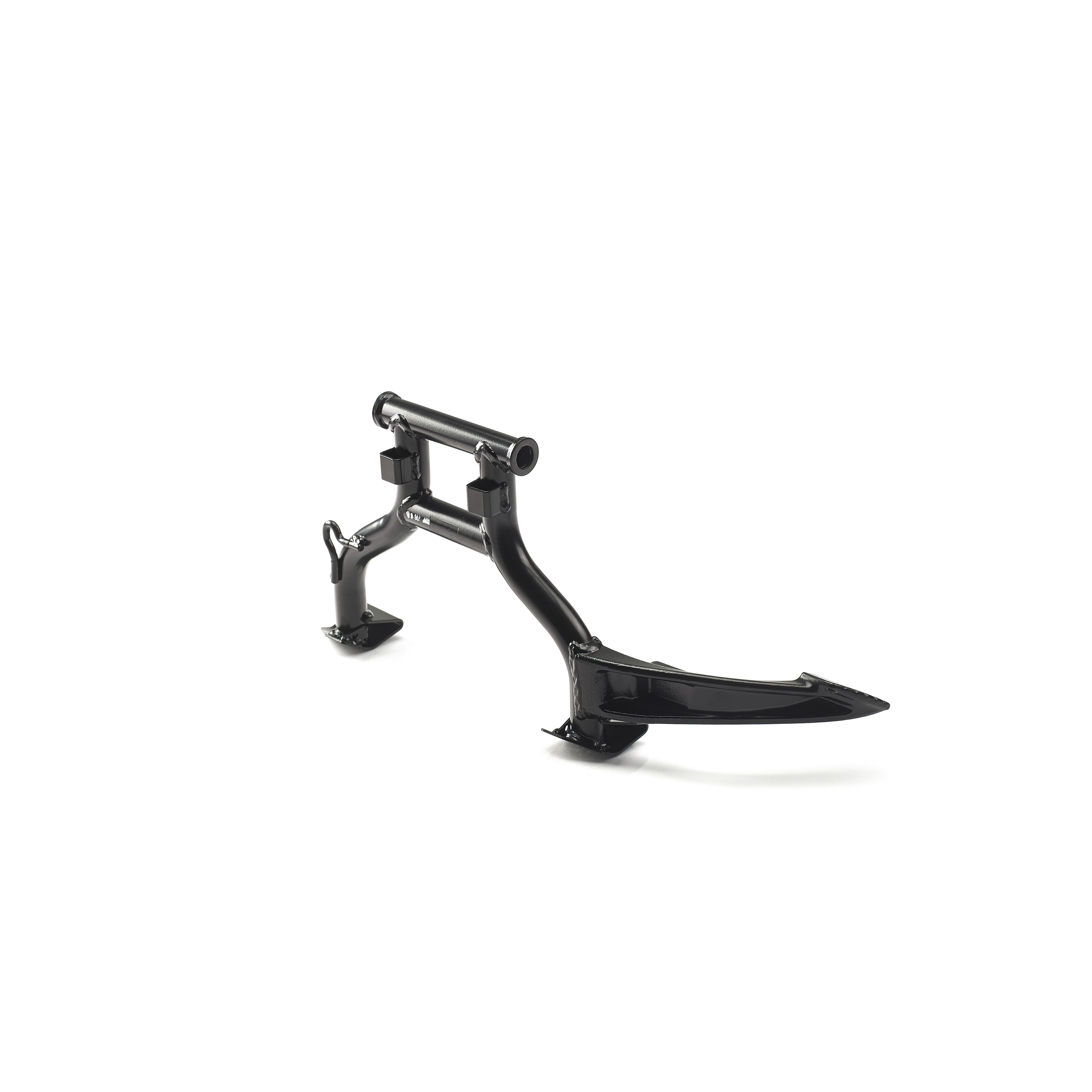

Centrestand Kit
Schematic
Parts (13)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | A9778045 Centre Stand Kit | Centre Stand Kit Replaced by A9778064 | 1 | $315.00 | Unavailable | 1 |
| 1 | A9778064 Centrestand Kit | Centrestand Kit | 1 | $330.00 | Available to order | 1 |
| 2 | T2085566 Centrestand | Centrestand | 1 | $189.48 | Unavailable | View Details |
| 3 | T9778054 Spacer, 10 x 18 x 17.1 | Spacer, 10 x 18 x 17.1 | 1 | $5.56 | Available to order | 1 |
| 4 | T2081231 Spindle, Centrestand | Spindle, Centrestand | 1 | $25.00 | Available to order | 1 |
| 5 | T2081967 Spring, Centrestand | Spring, Centrestand | 1 | $10.44 | Available to order | 1 |
| 6 | T9778053 Upstop Bracket, Centrestand | Upstop Bracket, Centrestand | 1 | $30.03 | Available to order | 1 |
| 7 | T2081353 Bush, Nylon, Centrestand Pivot | Bush, Nylon, Centrestand Pivot | 2 | $7.70 | Unavailable | View Details |
| 8 | T2081348 Pin, Centrestand Spring | Pin, Centrestand Spring | 1 | $9.10 | Available to order | 1 |
| 9 | T2081928 Up Stop, Centrestand | Up Stop, Centrestand | 1 | $5.70 | Available to order | 1 |
| 10 | T3331042 Screw, Pan/Hd, Tx, M6 x 12, Enc | Screw, Pan/Hd, Tx, M6 x 12, Enc | 1 | $1.40 | Available to order | 1 |
| 11 | T3200601 Bolt, HHF, M8 x 40, Slv | Bolt, HHF, M8 x 40, Slv | 1 | $3.04 | Available to order | 1 |
| 12 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 1 | $2.45 | Available to order | 1 |
