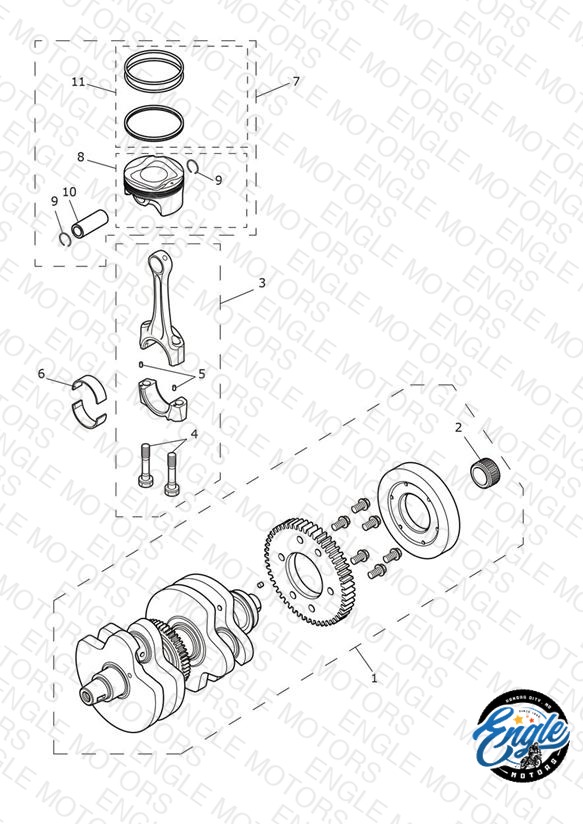

Loading schematic...
Crankshaft, Connecting Rods & Pistons
Parts (12)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1100445 Crankshaft Assy, 900 | Crankshaft Assy, 900 | 1 | $1381.90 | Out of Stock | Notify Me |
| 2 | T3800120 Bearing, 28 x 41 x 21 Wide | Bearing, 28 x 41 x 21 Wide | 1 | $81.75 | Available to order | 1 |
| 3 | T1110512 Conrod Assy | Conrod Assy | 2 | $214.83 | Out of Stock | Notify Me |
| 4 | T1110301 Conrod Bolt, M8 x 0.75 x 42 | Conrod Bolt, M8 x 0.75 x 42 | 4 | $13.18 | Available to order | 4 |
| 5 | T1110452 Dowel, 3 x 5 | Dowel, 3 x 5 | 4 | $2.85 | Available to order | 4 |
| 6 | T1110007 Bearing Shell, Conrod, White | Bearing Shell, Conrod, White | 4 | $19.29 | Available to order | 4 |
| 6 | T1110008 Bearing Shell, Conrod, Red | Bearing Shell, Conrod, Red | 4 | $19.29 | Available to order | 4 |
| 7 | T1127035 Piston Assembly, 84.6 | Piston Assembly, 84.6 | 2 | $283.39 | Available to order | 2 |
| 8 | T1127025 Piston & Circlip Assembly | Piston & Circlip Assembly | 2 | $201.51 | Available to order | 2 |
| 9 | T1127011 Circlip, Piston | Circlip, Piston | 4 | $2.55 | Out of Stock | Notify Me |
| 10 | T1127070 Gudgeon Pin, Nitrided | Gudgeon Pin, Nitrided | 2 | $18.16 | Available to order | 2 |
| 11 | T1127055 Piston Ring Set, 84.6 | Piston Ring Set, 84.6 | 2 | $117.87 | Available to order | 2 |
