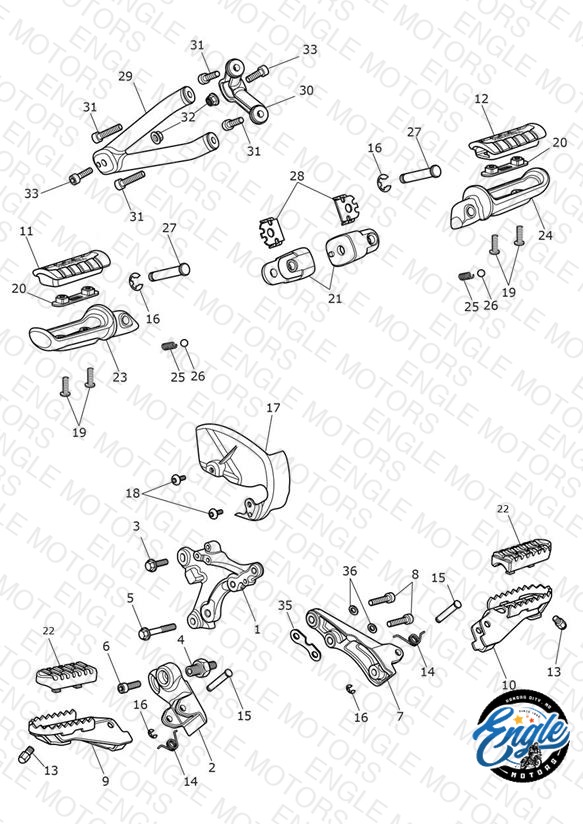

Triumph Street Scrambler & Scrambler 900 Foot Controls — OEM Parts Diagram

Engle Motors is your source for OEM Triumph parts and accessories with free shipping on orders of $100+!OEM Triumph parts — free shipping over $100!

Loading schematic...

What Our Customers Say

5 out of 5 based on 710 reviews

View all reviews →

“I like the procedure of verifying the part # with my motorcycle VIN#.”

M. Armfield · LOS ALTOS, CA · Mar 2026

“It would be nice to have better drawings of the parts. These were fuzzy and difficult to make out.”

M. Cohen · Pasadena, CA · Mar 2026

“EASY TO USE WEBSITE, AND GREAT SERVICE!”

J. SHEETS · CINCINNATI, OH · Feb 2026

“You guys are awesome! I Always use you guys for parts! Your diagrams are easy to move through. I will say the cooling system side was a little hard to figure out but praise be that theres a search bar! All n' all, 10/10! Rock on!”

N. Drinkall · BUHL, ID · Feb 2026

“Very efficient process... no hoping on a smooth delivery process. :-)”

P. De Keersmaecker · JACKSONVILLE, FL · Feb 2026

“Thank you, search was easy and glad I found you guys.”

P. Melia · SAINT PETERSBURG, FL · Feb 2026

#	Part Number	Description	Qty	Price	Status
1	T2084015 Control Plate, RH	Control Plate, RH	1	$115.97	Available to order	1 Ships within 3–7 business days
2	T2081790 Clevis, RH	Clevis, RH	1	$152.11	Available to order	1 Ships within 3–7 business days
3	T3205781 Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv	Bolt, HHF, Lghtd, M8 x 1.25 x 25, Slv	1	$1.62	Available to order	1 Ships within 3–7 business days
4	T3331561 Pivot Pin, Brake Pedal	Pivot Pin, Brake Pedal	1	$6.55	Available to order	1 Ships within 3–7 business days
5	T3202307 Bolt, HHF, M8 x 50, Slv	Bolt, HHF, M8 x 50, Slv	1	$6.65	Available to order	1 Ships within 3–7 business days
6	T3051097 Screw, Cap/Hd, M8 x 25, Silver	Screw, Cap/Hd, M8 x 25, Silver	1	$4.12	Available to order	1 Ships within 3–7 business days
7	T2082356 Clevis, LH	Clevis, LH	1	$152.11	Available to order	1 Ships within 3–7 business days
8	T3050323 Screw, Cap/Hd, M8 x 30, Slv	Screw, Cap/Hd, M8 x 30, Slv	2	$4.74	Available to order	2 Ships within 3–7 business days
9	T2085145 Footpeg, RH, Front	Footpeg, RH, Front	1	$69.35	Available to order	1 Ships within 3–7 business days
10	T2085146 Footpeg, LH, Front	Footpeg, LH, Front	1	$72.26	Available to order	1 Ships within 3–7 business days
11	T2081977 Rubber, Pillion, RH	Rubber, Pillion, RH	1	$15.95	Available to order	1 Ships within 3–7 business days
12	T2081978 Rubber, Pillion, LH	Rubber, Pillion, LH	1	$15.95	Available to order	1 Ships within 3–7 business days
13	T2085160 Peg, Bank Angle, 15mm	Peg, Bank Angle, 15mm	2	$14.07	Available to order	2 Ships within 3–7 business days
14	T2082605 Return Spring, Footrest	Return Spring, Footrest	2	$6.29	Available to order	2 Ships within 3–7 business days
15	T2080874 Pivot Pin, Footrest, 8.0	Pivot Pin, Footrest, 8.0	2	$9.10	Available to order	2 Ships within 3–7 business days
16	T3500207 Circlip, Ext 8 X 0.89	Circlip, Ext 8 X 0.89	4	$2.85	Available to order	4 Ships within 3–7 business days
17	T2022819 Cover, Sprocket, Inner	Cover, Sprocket, Inner	1	$52.29	Out of Stock	Notify Me
18	T3330955 Screw, But/Hd, M5 x 14, Slv, Enc	Screw, But/Hd, M5 x 14, Slv, Enc	2	$8.46	Available to order	2 Ships within 3–7 business days
19	T3330728 Screw, Pan/Hd, Tx, M5 x 16, Enc	Screw, Pan/Hd, Tx, M5 x 16, Enc	4	$0.97	Available to order	4 Ships within 3–7 business days
20	T2086988 Nutplate, Footpeg	Nutplate, Footpeg	4	$5.78	Available to order
21	T2081501 Clevis, Pillion	Clevis, Pillion	2	$35.64	Available to order	2 Ships within 3–7 business days
22	T2085119 Footrest, Rubber	Footrest, Rubber	2	$12.55	Available to order	2 Ships within 3–7 business days
23	T2085175 Footrest, Rear, RH, Black	Footrest, Rear, RH, Black	1	$102.36	Available to order	1 Ships within 3–7 business days
24	T2085176 Footrest, Rear, LH, Black	Footrest, Rear, LH, Black	1	$102.36	Available to order	1 Ships within 3–7 business days
25	T2081674 Spring, Detent	Spring, Detent	2	$6.39	Available to order	2 Ships within 3–7 business days
26	T2081675 Detent Ball	Detent Ball	2	$1.91	Available to order	2 Ships within 3–7 business days
27	T2080547 Pivot pin	Pivot pin	2	$6.55	Available to order	2 Ships within 3–7 business days
28	T2081672 Detent Plate	Detent Plate	2	$5.30	Available to order	2 Ships within 3–7 business days
29	T2082197 Footrest Hanger, RH, Rear	Footrest Hanger, RH, Rear	1	$209.11	Available to order	1 Ships within 3–7 business days
30	T2082138 Footrest Hanger, LH, Rear	Footrest Hanger, LH, Rear	1	$209.11	Available to order	1 Ships within 3–7 business days
31	T3050324 Screw, Cap/Hd, M8 x 1.25 x 35, Slv	Screw, Cap/Hd, M8 x 1.25 x 35, Slv	4	$4.74	Available to order	4 Ships within 3–7 business days
32	T3350004 Locknut, Flanged, M8 x 1.25	Locknut, Flanged, M8 x 1.25	2	$2.45	Available to order	2 Ships within 3–7 business days
35	T2082205 Spacer Plate, Clevis	Spacer Plate, Clevis	1	$5.60	Available to order	1 Ships within 3–7 business days
36	T3551282 Washer, M8, 8.4 x 15 x 1.6, Slv	Washer, M8, 8.4 x 15 x 1.6, Slv	2	$3.39	Available to order	2 Ships within 3–7 business days
