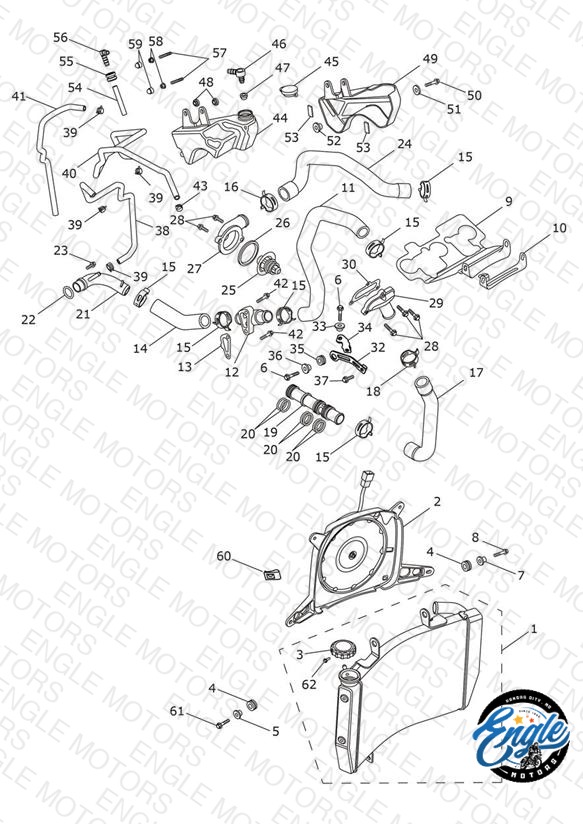

Cooling System
Parts (62)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2101508 Radiator Assembly | Radiator Assembly | 1 | $843.64 | Available to order | 1 |
| 2 | T2101744 Fan and Cowl Assembly | Fan and Cowl Assembly | 1 | $387.29 | Available to order | 1 |
| 3 | T2101623 Cap Assy | Cap Assy | 1 | $19.13 | Available to order | 1 |
| 4 | T3020188 Grommet, 16.5 x 3 x 9.5 | Grommet, 16.5 x 3 x 9.5 | 2 | $1.91 | Out of Stock | Notify Me |
| 5 | T3010159 Flanged Sleeve, 6.4 x 9 x 8.5 | Flanged Sleeve, 6.4 x 9 x 8.5 | 1 | $5.78 | Out of Stock | Notify Me |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 2 | $2.46 | Available to order | 2 |
| 7 | T3010901 Flanged Sleeve, 6.4 x 9 x 14.6 | Flanged Sleeve, 6.4 x 9 x 14.6 | 1 | $6.41 | Out of Stock | Notify Me |
| 8 | T3205600 Bolt, HHF, Lghtd, M6 x 35, 10.9 | Bolt, HHF, Lghtd, M6 x 35, 10.9 | 1 | $1.63 | Available to order | 1 |
| 9 | T2106008 Air Deflector | Air Deflector | 1 | $61.79 | Out of Stock | Notify Me |
| 10 | T2106003 Air Deflector Retainer Bracket | Air Deflector Retainer Bracket | 1 | $3.33 | Out of Stock | Notify Me |
| 11 | T2109001 Hose, Radiator to T-Piece | Hose, Radiator to T-Piece | 1 | $33.93 | Available to order | 1 |
| 12 | T2104100 T-Piece, Water, Black | T-Piece, Water, Black | 1 | $23.20 | Available to order | 1 |
| 13 | T2100435 Gasket, T-Piece, Water | Gasket, T-Piece, Water | 1 | $3.50 | Available to order | 1 |
| 14 | T2109091 Hose, T-Piece to Pump | Hose, T-Piece to Pump | 1 | $33.93 | Available to order | 1 |
| 15 | T3706214 Clamp, Constant Tension, Dia 29 | Clamp, Constant Tension, Dia 29 | 6 | $13.99 | Available to order | 6 |
| 16 | T3706216 Clamp, Constant Tension, Dia 32 | Clamp, Constant Tension, Dia 32 | 1 | $13.99 | Available to order | 1 |
| 17 | T2100425 Hose, Formed, Water Pump Outlet | Hose, Formed, Water Pump Outlet | 1 | $28.34 | Available to order | 1 |
| 18 | T3706215 Clamp, Constant Tension, Dia 30 | Clamp, Constant Tension, Dia 30 | 1 | $13.99 | Available to order | 1 |
| 19 | T2100426 Pipe, Water, Pump Outlet | Pipe, Water, Pump Outlet | 1 | $46.11 | Available to order | 1 |
| 20 | T3600290 O Ring, 23.7 x 2 | O Ring, 23.7 x 2 | 6 | $1.40 | Available to order | 6 |
| 21 | T2107012 Pipe, Water Pump Inlet | Pipe, Water Pump Inlet | 1 | $42.57 | Available to order | 1 |
| 22 | T3600124 O Ring, ID 21.5 x 3 | O Ring, ID 21.5 x 3 | 1 | $3.39 | Available to order | 1 |
| 23 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Available to order | 1 |
| 24 | T2101992 Hose, Water, Head to Radiator | Hose, Water, Head to Radiator | 1 | $36.11 | Out of Stock | Notify Me |
| 25 | T2100675 Thermostat | Thermostat | 1 | $68.42 | Available to order | 1 |
| 26 | T2100201 Seal, Thermostat | Seal, Thermostat | 1 | $7.14 | Available to order | 1 |
| 27 | T2100206 Cover, Water Outlet | Cover, Water Outlet | 1 | $50.37 | Available to order | 1 |
| 28 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 5 | $4.55 | Available to order | 5 |
| 29 | T2104020 Cover, Water Inlet | Cover, Water Inlet | 1 | $34.22 | Available to order | 1 |
| 30 | T2102800 Gasket, Water Inlet | Gasket, Water Inlet | 1 | $3.70 | Backorder — Early August 2026 | 1 |
| 32 | T2101997 Bracket, Radiator, Lower | Bracket, Radiator, Lower | 1 | $4.85 | Available to order | 1 |
| 33 | T3010702 Flanged Sleeve, 6.4 x 10 x 8.5 | Flanged Sleeve, 6.4 x 10 x 8.5 | 1 | $5.78 | Available to order | 1 |
| 34 | T2101996 Bracket, Radiator, Lower | Bracket, Radiator, Lower | 1 | $4.85 | Available to order | 1 |
| 35 | T3020033 Grommet; 12 x 2 x 9.6 | Grommet; 12 x 2 x 9.6 | 1 | $4.45 | Available to order | 1 |
| 36 | T3010144 Flanged Sleeve, M6 x 9.5 x 10.5 | Flanged Sleeve, M6 x 9.5 x 10.5 | 1 | $3.77 | Available to order | 1 |
| 37 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 1 | $3.50 | Available to order | 1 |
| 38 | T2100408 Hose, Bypass, Water | Hose, Bypass, Water | 1 | $13.33 | Available to order | 1 |
| 39 | T3700440 Clip, Hose, 11-12.5mm | Clip, Hose, 11-12.5mm | 4 | $5.42 | Available to order | 4 |
| 40 | T2109035 Hose, Expansion Tank to Radiator | Hose, Expansion Tank to Radiator | 1 | $17.49 | Available to order | 1 |
| 41 | T2109040 Hose, Expansion Tank Overflow | Hose, Expansion Tank Overflow | 1 | $56.07 | Available to order | 1 |
| 42 | T3200664 Bolt, TX, Lghtd, M6 x 25, Slv | Bolt, TX, Lghtd, M6 x 25, Slv | 2 | $3.56 | Available to order | 2 |
| 43 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 44 | T2109765 Expansion Tank | Expansion Tank | 1 | $110.28 | Available to order | 1 |
| 45 | T2101015 Cap, Expansion Tank | Cap, Expansion Tank | 1 | $2.00 | Available to order | 1 |
| 46 | T2100433 Elbow, Overflow, Quickfit | Elbow, Overflow, Quickfit | 1 | $6.83 | Available to order | 1 |
| 47 | T3450141 Grommet, TPE, Quickfit | Grommet, TPE, Quickfit | 1 | $2.17 | Available to order | 1 |
| 48 | T3010145 Flanged Sleeve, M6 x 9 x 5.1 | Flanged Sleeve, M6 x 9 x 5.1 | 2 | $2.63 | Available to order | 2 |
| 49 | T2100912 Cover, Expansion Tank | Cover, Expansion Tank | 1 | $33.15 | Available to order | 1 |
| 50 | T3331234 Screw, Torx, P/H, M6 x 20, Slv | Screw, Torx, P/H, M6 x 20, Slv | 1 | $5.30 | Available to order | 1 |
| 51 | T3552004 Washer, M6 x 14 x 2 | Washer, M6 x 14 x 2 | 1 | $1.91 | Available to order | 1 |
| 52 | T3010059 Flanged Sleeve, M6 x 9 x 3.2 | Flanged Sleeve, M6 x 9 x 3.2 | 1 | $2.74 | Available to order | 1 |
| 53 | T3660171 Pad, Rubber, 30 x 10 x 5, thick | Pad, Rubber, 30 x 10 x 5, thick | 2 | $8.09 | Available to order | 2 |
| 54 | T2102490 Hose, Expansion Tank, 65mm | Hose, Expansion Tank, 65mm | 1 | $10.34 | Available to order | 1 |
| 55 | T3021200 Grommet, Dia 14x4, Panel | Grommet, Dia 14x4, Panel | 1 | $3.17 | Available to order | 1 |
| 56 | T2100405 Elbow, ID 8.0 Tube | Elbow, ID 8.0 Tube | 1 | $1.40 | Available to order | 1 |
| 57 | T3100020 Stud, M6 | Stud, M6 | 2 | $2.10 | Available to order | 2 |
| 58 | T3350003 Locknut, Flanged, M6 x 1 | Locknut, Flanged, M6 x 1 | 2 | $0.67 | Available to order | 2 |
| 59 | T3450124 Cap | Cap | 2 | $5.60 | Available to order | 2 |
| 60 | T3350129 Nut, Captive, M5 | Nut, Captive, M5 | 1 | $3.39 | Backorder — Late August 2026 | 1 |
| 61 | T3205070 Bolt, HHF, Lghtd, M6 x 30, Slv | Bolt, HHF, Lghtd, M6 x 30, Slv | 1 | $2.37 | Available to order | 1 |
| 62 | T2101512 Screw, Anti-Tamper, Rad Cap | Screw, Anti-Tamper, Rad Cap | 1 | $5.12 | Available to order | 1 |
| 63 | T4007777 Coolant, OAT, Premix, D2053,12 x 1L | Coolant, OAT, Premix, D2053,12 x 1L Not illustrated | 1 | $187.12 | Available to order | 1 |
