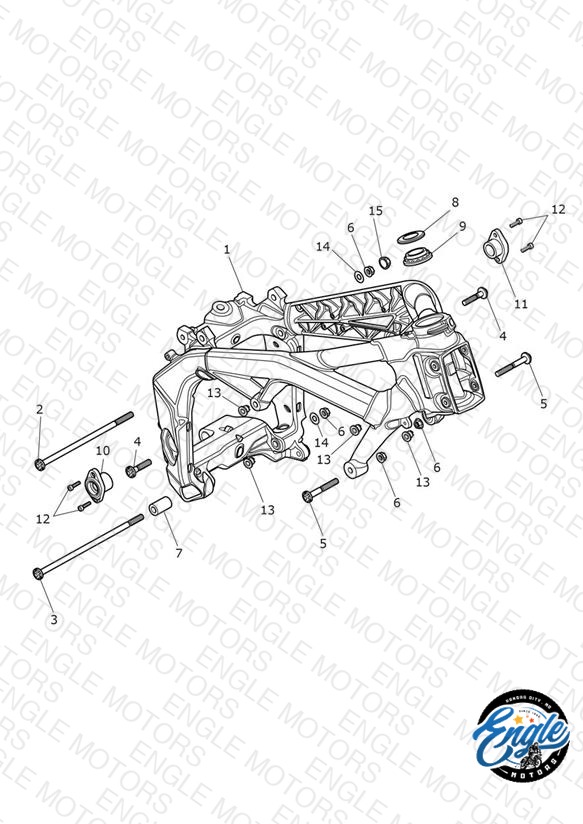

Loading schematic...
Main Frame & Fittings
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2074938 Frame Assy, World | Frame Assy, World All Except US, CA, CN, KR, BR, TH, XA & AU | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074936 Frame Assy, Americas | Frame Assy, Americas US Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074937 Frame Assy, Canada | Frame Assy, Canada CA Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074943 Frame Assy, Australia | Frame Assy, Australia AU Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074941 Frame Assy, China | Frame Assy, China CN Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074940 Frame Assy, Korea | Frame Assy, Korea KR Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074942 Frame Assy, Brazil | Frame Assy, Brazil BR Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074944 Frame Assy, Thailand | Frame Assy, Thailand TH Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 1 | T2074939 Frame Assy, GSO | Frame Assy, GSO XA Only | 1 | $2843.74 | Out of Stock | Notify Me |
| 2 | T3332692 Bolt, TX, M10, 238LG | Bolt, TX, M10, 238LG | 1 | $5.88 | Available to order | 1 |
| 3 | T3332694 Bolt, TX, M10 x 266LG | Bolt, TX, M10 x 266LG | 1 | $5.78 | Out of Stock | Notify Me |
| 4 | T3332695 Bolt, TX, M10 x 48LG | Bolt, TX, M10 x 48LG | 2 | $15.12 | Available to order | 2 |
| 5 | T3332620 Bolt, TX, M10 x 75 LG | Bolt, TX, M10 x 75 LG | 2 | $5.30 | Available to order | 2 |
| 6 | T3350250 Locknut, Flanged, M10 | Locknut, Flanged, M10 | 4 | $4.16 | Available to order | 4 |
| 7 | T2071128 Spacer, Engine Mount | Spacer, Engine Mount | 1 | $6.73 | Out of Stock | Notify Me |
| 8 | T3600234 Dust Seal, Dia 55 | Dust Seal, Dia 55 | 1 | $8.34 | Available to order | 1 |
| 9 | T3800091 Bearing, Sac | Bearing, Sac | 1 | $33.95 | Available to order | 1 |
| 10 | T2070249 Swingarm Height Adjuster, RH | Swingarm Height Adjuster, RH | 1 | $47.50 | Available to order | 1 |
| 11 | T2070228 Swingarm Height Insert, LH | Swingarm Height Insert, LH | 1 | $57.03 | Available to order | 1 |
| 12 | T3050334 Screw, Cap/Hd, M6 x 20, Slv | Screw, Cap/Hd, M6 x 20, Slv | 4 | $1.51 | Available to order | 4 |
| 13 | T2070347 Frame Adjuster, M16 | Frame Adjuster, M16 | 4 | $6.83 | Backorder — Early August 2026 | 4 |
| 14 | T3555029 Washer, 10.5 x 23 x 2 | Washer, 10.5 x 23 x 2 | 2 | $2.74 | Available to order | 2 |
| 15 | T2072067 Finisher, Engine Mount, Frame, LH | Finisher, Engine Mount, Frame, LH | 1 | $4.85 | Out of Stock | Notify Me |
